Fortinet FG-61F

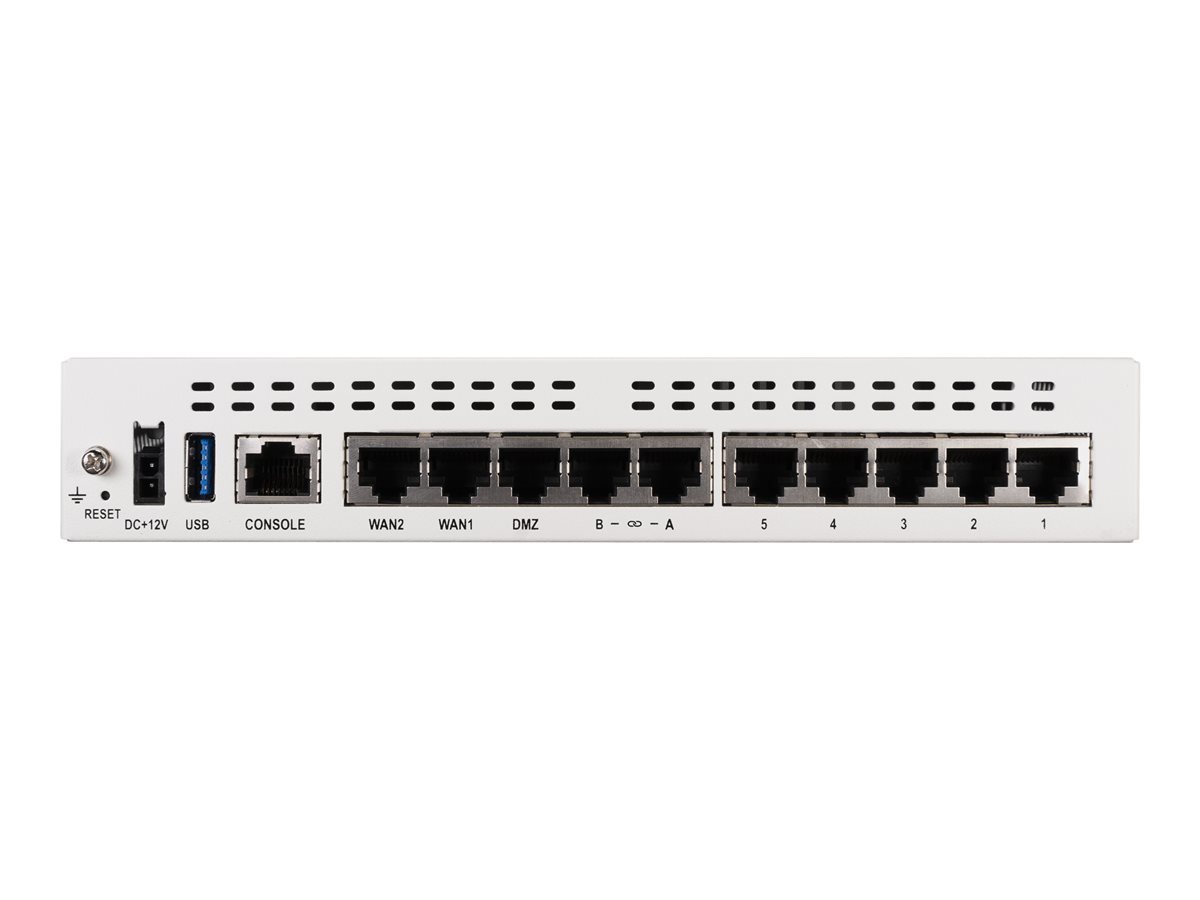

10 x GE RJ45 ports (including 2 x WAN Ports, 1 x DMZ Port, 7 x Internal Ports), 128GB SSD onboard storage.
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
10 x GE RJ45 ports (including 2 x WAN Ports, 1 x DMZ Port, 7 x Internal Ports), 128GB SSD onboard storage.
| Capacity: | Concurrent TCP sessions: 700000 ¦ New TCP sessions per second: 35000 ¦ Firewall policies: 5000 ¦ Gateway to gateway IPSec VPN Tunnels: 200 ¦ Client to gateway IPSec VPN tunnels: 500 ¦ Concurrent SSL VPN users: 200 ¦ SSL inspection concurrent sessions: 550 |
|---|---|
| Compliant Standards: | UL, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 Class B, ICSA SSL-VPN |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 16 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL, 256-bit AES, 256-bit SHA |
| Features: | Fanless, 3G/4G USB Dongle Support, FortiLink Mode, SD-WAN support |
| Form Factor: | Desktop |
| Hard Drive: | SSD 128 GB x 1 |
| Height: | 3.8 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Interfaces: | 2 x 1000Base-T - RJ-45 (WAN) ¦ 1 x 1000Base-T - RJ-45 (DMZ) ¦ 7 x 1000Base-T - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 1 x console - RJ-45 |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec, HTTPs |
| Performance: | Firewall throughput: 10 Gbps ¦ IPS throughput: 1.4 Gbps ¦ NGFW throughput: 1 Gbps ¦ Threat protection throughput: 700 Mbps ¦ Firewall throughput (1518-byte UDP): 10 Gbps ¦ Firewall throughput (512-byte UDP): 10 Gbps ¦ Firewall throughput (64-byte UDP): 6 |
| Power Consumption Operational: | 18.7 Watt |
| Power Device: | External power adapter |
| Remote Management Protocol: | HTTPS |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 900 g |
| Width: | 21.6 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
10 x GE RJ45 ports (including 2 x WAN Ports, 1 x DMZ Port, 7 x Internal Ports), 128GB SSD onboard storage.
| Capacity: | Concurrent TCP sessions: 700000 ¦ New TCP sessions per second: 35000 ¦ Firewall policies: 5000 ¦ Gateway to gateway IPSec VPN Tunnels: 200 ¦ Client to gateway IPSec VPN tunnels: 500 ¦ Concurrent SSL VPN users: 200 ¦ SSL inspection concurrent sessions: 550 |
|---|---|
| Compliant Standards: | UL, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 Class B, ICSA SSL-VPN |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 16 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL, 256-bit AES, 256-bit SHA |
| Features: | Fanless, 3G/4G USB Dongle Support, FortiLink Mode, SD-WAN support |
| Form Factor: | Desktop |
| Hard Drive: | SSD 128 GB x 1 |
| Height: | 3.8 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Interfaces: | 2 x 1000Base-T - RJ-45 (WAN) ¦ 1 x 1000Base-T - RJ-45 (DMZ) ¦ 7 x 1000Base-T - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 1 x console - RJ-45 |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec, HTTPs |
| Performance: | Firewall throughput: 10 Gbps ¦ IPS throughput: 1.4 Gbps ¦ NGFW throughput: 1 Gbps ¦ Threat protection throughput: 700 Mbps ¦ Firewall throughput (1518-byte UDP): 10 Gbps ¦ Firewall throughput (512-byte UDP): 10 Gbps ¦ Firewall throughput (64-byte UDP): 6 |
| Power Consumption Operational: | 18.7 Watt |
| Power Device: | External power adapter |
| Remote Management Protocol: | HTTPS |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 900 g |
| Width: | 21.6 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
