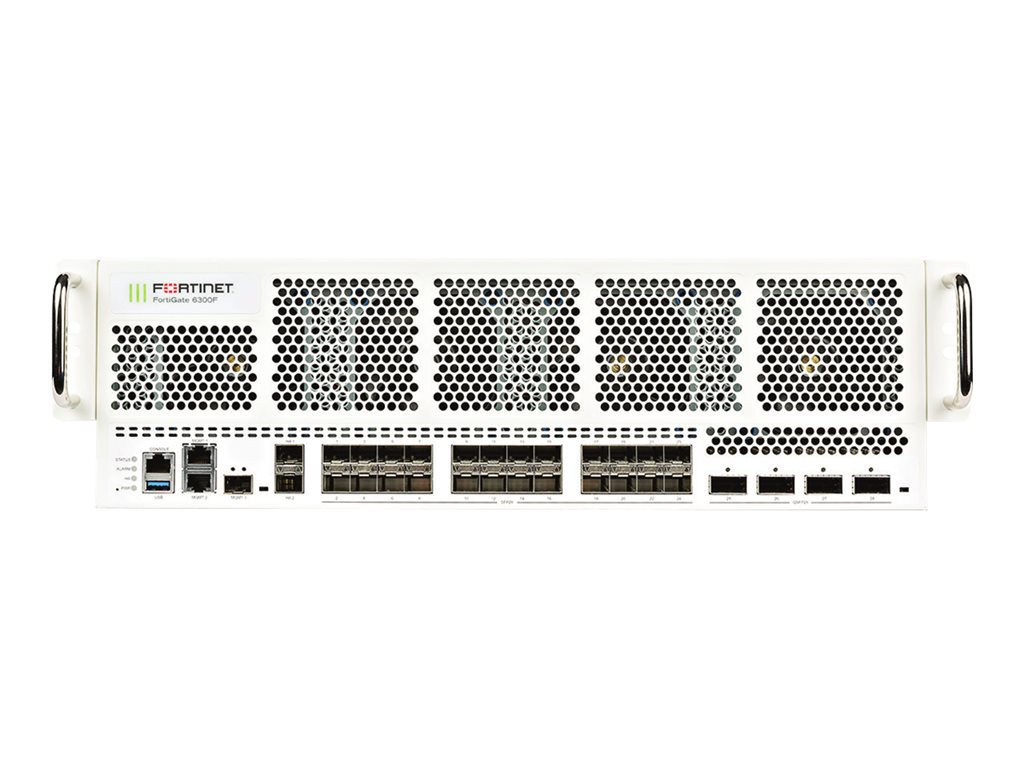

Fortinet FortiGate 6300F - Enterprise Bundle - security appliance - with 3 years FortiCare 24X7 Service + 3 years FortiGuard - 40 Gigabit LAN, 100 Gigabit Ethernet, 25 Gigabit LAN - 3U - rack-mountable
| Built-in Devices: | Led panel |
|---|---|
| Bundled Services: | 3 years FortiCare 24X7 Service + 3 years FortiGuard |
| Capacity: | Concurrent TCP sessions: 120000000 ¦ New TCP sessions per second: 2000000 ¦ Firewall policies: 200000 ¦ Gateway to gateway IPSecVPN Tunnels: 16000 ¦ Client to gateway IPSec VPN tunnels: 90000 ¦ Concurrent SSL VPN users: 30000 ¦ Virtual domains: 10 ¦ Maxi |
| Compliant Standards: | FCC Part 15 A, C-Tick, VCCI, UL, cUL, CB, VB100 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Depth: | 66.5 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | 256-bit AES, 256-bit SHA, SSL, TLS 1.2, 128-bit AES |
| Features: | High Availability, web threat protection, anti-malware protection, load balancing, firewall protection, Data Center Firewall (DCFW), Intrusion Prevention System (IPS), Carrier-Class Firewall (CCFW), IPv6 support, VPN acceleration capability, IP tunnel acc |
| Form Factor: | Rack-mountable |
| Height: | 13.2 cm |
| Height (Rack Units): | 3U |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | 2 x 10Gb Ethernet SR SFP+ transceiver |
| Installed Qty: | 3 |
| Interfaces: | 4 x 40Gb Ethernet/100Gb Ethernet - QSFP+/QSFP28 ¦ 24 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP28 ¦ 2 x 10Gb Ethernet - SFP+ ¦ 2 x 1000Base-T (management) - RJ-45 ¦ 1 x 1 Gigabit Ethernet/10Gb Ethernet (management) - SFP+ ¦ 1 x USB 3.0 - Type |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Max Supported Qty: | 3 |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | TCP/IP, IPSec, UDP/IP, SCTP |
| OS Provided: | FortiOS |
| Performance: | Firewall throughput (1518-byteUDP): 239 Gbps ¦ Firewall throughput (512-byte UDP): 238 Gbps ¦ Firewall throughput (64-byte UDP): 135 Gbps ¦ Firewall latency (64-byte UDP): 5 µs ¦ Firewall throughput: 202.5 Mpps ¦ VPN throughput (512-bitIPSec): 130 Gbps |
| Power Consumption Operational: | 977 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Yes |
| Processors Installed: | Fortinet FortiASIC CP9/NP6 |
| Remote Management Protocol: | CLI, HTTP |
| Version: | original |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Weight: | 30.7 kg |
| Width: | 43.7 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs@fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs@fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs@fortinet.com |
| EU Data-Act-Url: | https://www.fortinet.com/de/corporate/about-us/gdpr |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
