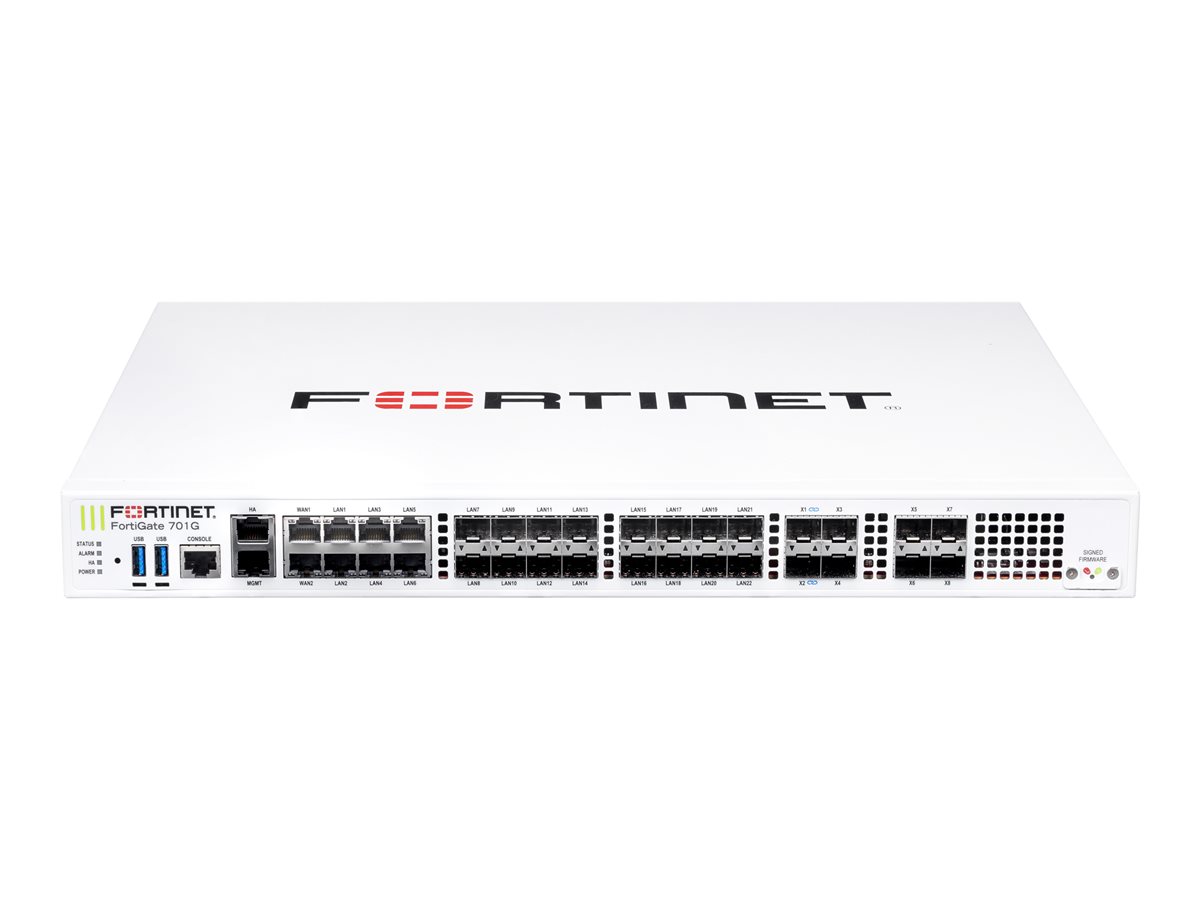

Fortinet FG-701G-BDL-950-60
FortiGate-701G Hardware plus 5 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
FortiGate-701G Hardware plus 5 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)
| Airflow Direction: | Front and side to back |
|---|---|
| Built-in Devices: | 4 x fans |
| Bundled Services: | 5 years FortiCare Premium Support + 5 years FortiGuard Unified Threat Protection (UTP) |
| Capacity: | Concurrent TCP sessions: 16000000 ¦ New TCP sessions per second: 700000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSecVPN Tunnels: 2000 ¦ Client to gateway IPSec VPN tunnels: 50000 ¦ Concurrent SSL VPN users: 10000 ¦ SSL inspection CPS: 13000 ¦ SS |
| Compliant Standards: | FCC Part 15 A, RCM, VCCI, UL, cUL, CB, USGv6, IPv6 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Depth: | 34.2 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL, TLS 1.3, 256-bit AES, 256-bit SHA |
| Features: | 4 fans, Trusted Platform Module (TPM), Zero Trust Network Access (ZTNA), VPN support, CAPWAP support, High Availability |
| Form Factor: | Rack-mountable |
| Hard Drive: | SSD 480 GB x 2 |
| Height: | 4.445 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | 2 SX SFP transceivers |
| Installed Qty: | 2 |
| Interfaces: | 2 x USB 3.0 - Type A ¦ 1 x console - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x 1/2.5 Gigabit Ethernet (High Availability) - RJ-45 ¦ 8 x 5GBase-T - RJ-45 ¦ 16 x 10/100/1000Base-T - SFP ¦ 4 x 1000Base-X/10GBase-X - SFP+ ¦ 4 x 1 Gigabit Ethernet/10Gb |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 45 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPv4, IPv6, HTTP, HTTPs, IPSec, TCP/IP, UDP/IP |
| OS Provided: | FortiOS |
| Performance: | IPS throughput: 38 Gbps ¦ NGFW throughput: 29 Gbps ¦ Threat protection throughput: 26 Gbps ¦ IPv4 firewall throughput (1518-byteUDP): 164 Gbps ¦ IPv4 firewall throughput (512-byte UDP): 163 Gbps ¦ IPv4 firewall throughput (64-byte UDP): 145 Gbps ¦ IPv6 f |
| Power Consumption Operational: | 240 Watt |
| Power Device: | Internal power supply |
| Power Redundancy: | Yes |
| Processors Installed: | Fortinet FortiASIC CP10/NP7 |
| Remote Management Protocol: | HTTPS, HTTP |
| Status Indicators: | Status, alarm, HA, power |
| Version: | original |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Weight: | 3.5 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs@fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs@fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs@fortinet.com |
| EU Data-Act-Url: | https://www.fortinet.com/de/corporate/about-us/gdpr |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
