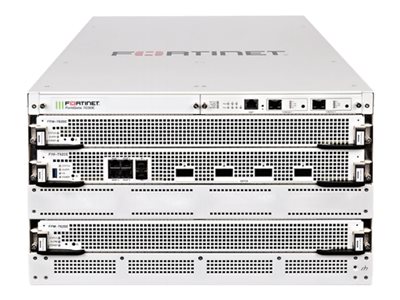

Fortinet FG-7030E-SFP10G-BDL-974-60
Fortinet FortiGate 7030E-SFP10G - Enterprise Bundle - security appliance - with 5 years FortiCare 24X7 Comprehensive Support + 5 years FortiGuard - 10 GigE - 6U - rack-mountable
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Fortinet FortiGate 7030E-SFP10G - Enterprise Bundle - security appliance - with 5 years FortiCare 24X7 Comprehensive Support + 5 years FortiGuard - 10 GigE - 6U - rack-mountable
| Bundled Services: | 5 years FortiCare 24X7 Comprehensive Support + 5 years FortiGuard |
|---|---|
| Capacity: | Concurrent TCP sessions: 160000000 ¦ New TCP sessions per second: 900000 ¦ Firewall policies: 200000 ¦ Gateway to gateway IPSecVPN Tunnels: 40000 ¦ Client to gateway IPSec VPN tunnels: 64000 ¦ Concurrent SSL VPN users: 48000 ¦ Virtual domains: 500 ¦ Numb |
| Compliant Standards: | UL, VCCI, BSMI, cUL, CB, FCC, ICES, RCM |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet, 10 Gigabit Ethernet |
| Depth: | 65 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL, SHA-1, 256-bit AES, TLS 1.2 |
| Expansion Slots: | 3 (total) / 0 (free) x expansion slot |
| Features: | Modular design, firewall protection, hot swap module replacement, switching, routing, VPN support, manageable, High Availability, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), anti-malware protection, web threat protection, appli |
| Form Factor: | Rack-mountable |
| Height: | 26.4 cm |
| Height (Rack Units): | 6U |
| Humidity Range Operating: | 20 - 90% (non-condensing) |
| Included Accessories: | 2 SR SFP+ transceivers |
| Installed Qty: | 3 |
| Interfaces: | 1 x management - RJ-45 ¦ 2 x console - RJ-45 ¦ 4 x 1000Base-T (management) - RJ-45 ¦ 32 x 10Gb Ethernet - SFP+ ¦ 2 x 10GBase-T (management) - SFP+ ¦ 1 x USB 3.0 - Type A |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Max Supported Qty: | 4 |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | TCP/IP, UDP/IP, IPSec |
| OS Provided: | FortiOS 5 |
| Performance: | Firewall throughput (1518/512/64-byteUDP): 155 Gbps ¦ Firewall latency (64-byte UDP): 7 µs ¦ Firewall throughput: 220 Mpps ¦ VPN throughput (512-bitIPSec): 40 Gbps ¦ VPN throughput (SSL): 15 Gbps ¦ IPS throughput (HTTP): 90 Gbps ¦ IPS throughput (enterp |
| Power Consumption Operational: | 1390 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Yes |
| Processors Installed: | 2 x Fortinet FortiASIC CP9/NP6 |
| Status Indicators: | Power, temperature, status, alarm, link/activity, fan, console, HA, PSU |
| Switching Protocol: | Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 61.3 kg |
| Width: | 44 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs@fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs@fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs@fortinet.com |
| EU Data-Act-Url: | https://www.fortinet.com/de/corporate/about-us/gdpr |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
