Fortinet FG-70D-POE
Fortinet FortiGate 70D-POE - Security appliance - 16 ports - GigE
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.

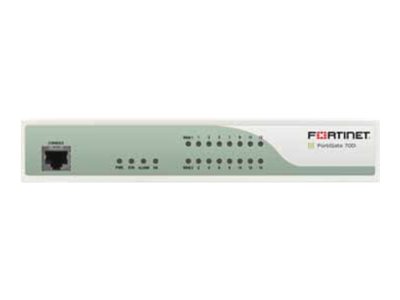

Fortinet FortiGate 70D-POE - Security appliance - 16 ports - GigE
| Capacity: | Gateway to gateway IPSec VPN Tunnels: 200 ¦ Client to gateway IPSec VPN tunnels: 1000 ¦ Concurrent TCP sessions: 2000000 ¦ New sessions per second: 4000 ¦ Firewall policies: 5000 ¦ Virtual domains: 10 ¦ Number of FortiAP devices: 32 ¦ Number of FortiToken |
|---|---|
| Compliant Standards: | IEEE 802.3af |
| Compliant Standards: | UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 B, ICSA Network IPS |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 22.3 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL |
| Features: | Firewall protection, VPN support, antivirus analysis, IPSec passthrough, 3G/4G USB Dongle Support |
| Form Factor: | External |
| Height: | 4.4 cm |
| Humidity Range Operating: | 20 - 90% (non-condensing) |
| Interfaces: | 2 x 1000Base-T - RJ-45 (WAN) ¦ 10 x 1000Base-T - RJ-45 ¦ 4 x 1000Base-T (PoE) - RJ-45 ¦ 1 x USB - Type B ¦ 2 x USB - Type A ¦ 1 x 1000Base-T (management) - RJ-45 |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | TCP/IP, UDP/IP, IPSec |
| OS Provided: | FortiOS 5 |
| Performance: | Firewall throughput (1518-byte packet size): 3.5 Gbps ¦ Firewall throughput (512-byte packet size): 3.5 Gbps ¦ Firewall throughput (64-byte packet size): 3.5 Gbps ¦ Antivirus throughput (proxy): 35 Mbps ¦ Flow-based antivirus throughput: 65 Mbps ¦ IPS thr |
| Ports Qty: | 16 |
| Power Consumption Operational: | 89 Watt |
| Power Device: | External power adapter |
| Power Over Ethernet (PoE) Supported: | PoE |
| Processors Installed: | 1 x Fortinet FortiASIC SOC2 |
| Software Included: | Drivers & Utilities |
| Switching Protocol: | Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 1.6 kg |
| Width: | 21.6 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
