Fortinet FG-81E

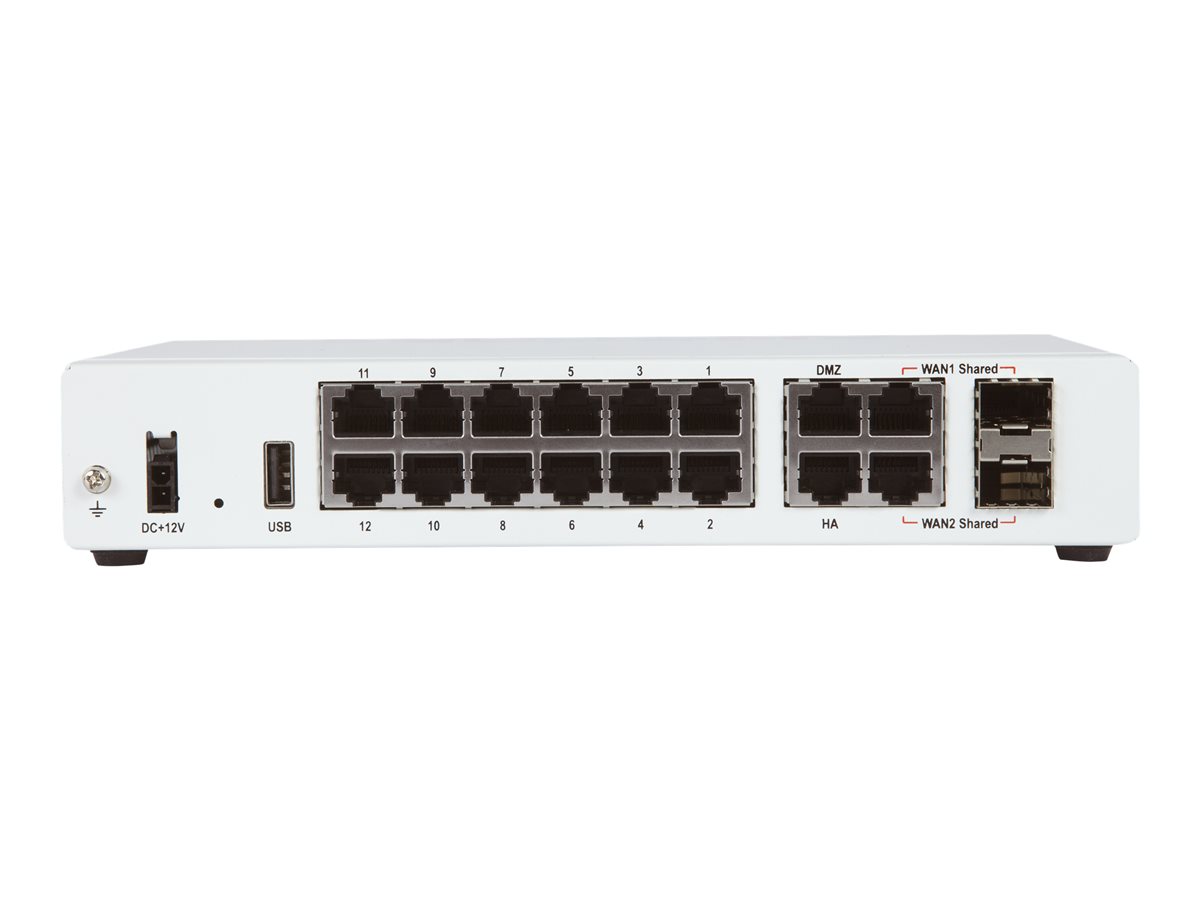

Fortinet FortiGate 81E - Security appliance - 12 ports - GigE - AC 100 - 240 V - desktop
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Fortinet FortiGate 81E - Security appliance - 12 ports - GigE - AC 100 - 240 V - desktop
| Capacity: | Concurrent sessions: 1300000 ¦ New sessions per second: 30000 ¦ Firewall policies: 5000 ¦ Gateway to gateway IPSec VPN Tunnels: 200 ¦ Client to gateway IPSec VPN tunnels: 1000 ¦ Concurrent SSL VPN users: 200 ¦ Virtual domains: 10 ¦ Number of FortiAP devic |
|---|---|
| Compliant Standards: | UL, VCCI, BSMI, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, RCM, FCC Part 15 Class B, ICSA SSL-VPN, ICSA IPS |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 17.8 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL, SHA-1, 256-bit AES, TLS 1.2 |
| Features: | Firewall protection, VPN support, High Availability, Intrusion Prevention System (IPS), URL filtering, wall mountable, web threat protection, 3G/4G USB Dongle Support, application filtering |
| Form Factor: | Desktop |
| Hard Drive: | 128 GB |
| Height: | 4.2 cm |
| Humidity Range Operating: | 20 - 90% (non-condensing) |
| Interfaces: | 2 x 1000Base-T - RJ-45 (WAN) ¦ 1 x 1000Base-T - RJ-45 (DMZ) ¦ 12 x 1000Base-T - RJ-45 ¦ 1 x console - RJ-45 ¦ 1 x USB - Type A ¦ 1 x - RJ-45 ¦ 2 x 1000Base-X - SFP (mini-GBIC) (WAN) |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec |
| OS Provided: | FortiOS 5 |
| Performance: | Firewall throughput (1518/512/64-byte UDP): 4 Gbps ¦ IPS throughput: 450 Mbps ¦ NGFW throughput: 360 Mbps ¦ Threat prevention throughput: 250 Mbps ¦ Firewall latency (64-byte UDP): 3 µs ¦ Firewall throughput: 6 Mpps ¦ VPN throughput (512-bit IPSec): 2.5 G |
| Ports Qty: | 12 |
| Power Device: | External power adapter |
| Processors Installed: | Fortinet FortiASIC SOC3 |
| Switching Protocol: | Ethernet |
| Version: | original |
| Voltage Required: | AC 100 - 240 V (50 - 60 Hz) |
| Weight: | 1.2 kg |
| Width: | 21.6 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
