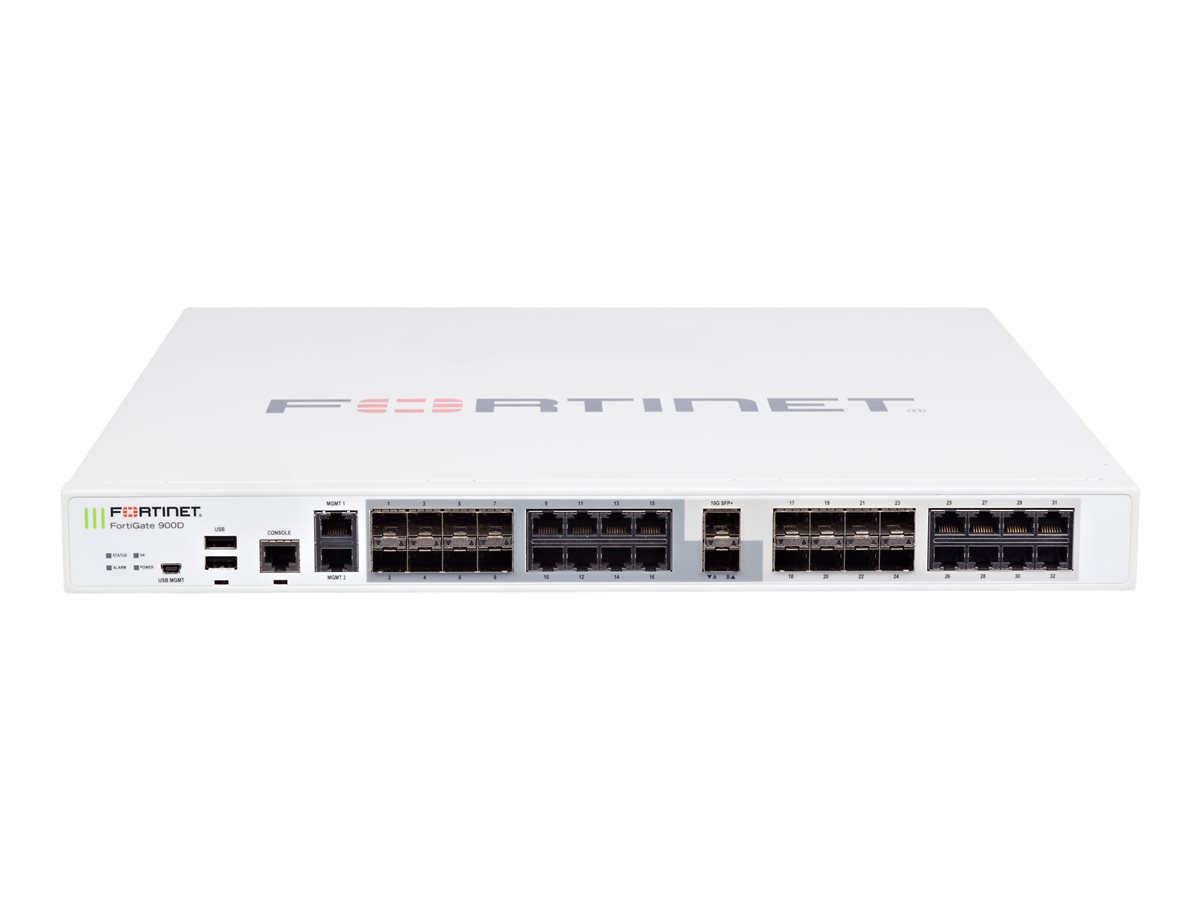

Fortinet FG-900D-BDL-841-12
Fortinet FortiGate 900D - Security appliance - with 1 year ASE FortiCare and FortiGuard 360 Protection Bundle - 10 GigE - side to back airflow - 1U - rack-mountable
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Fortinet FortiGate 900D - Security appliance - with 1 year ASE FortiCare and FortiGuard 360 Protection Bundle - 10 GigE - side to back airflow - 1U - rack-mountable
| Airflow Direction: | Side to back airflow |
|---|---|
| Bundled Services: | 1 year ASE FortiCare and FortiGuard 360 Protection Bundle |
| Capacity: | Concurrent TCP sessions: 11000000 ¦ New TCP sessions per second: 280000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Client to gateway IPSec VPN tunnels: 50000 ¦ Concurrent SSL VPN users: 10000 ¦ SSL inspection CPS: 2400 ¦ SSL |
| Compliant Standards: | UL, VCCI, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 A, RCM, USGv6, ICSA SSL-VPN, ICSA IPS, IPv6 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Depth: | 46.32 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL, 256-bit AES, 256-bit SHA, TLS 1.3 |
| Features: | VPN support, CAPWAP support, IP tunnel acceleration, SD-WAN support, NP Direct |
| Form Factor: | Rack-mountable |
| Hard Drive: | SSD 256 GB x 1 |
| Height: | 4.445 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Installed Qty: | 2 |
| Interfaces: | 2 x 10GBase-X - SFP+ ¦ 16 x 1000Base-T - RJ-45 ¦ 16 x 1000Base-X - SFP ¦ 2 x 1000Base-T (management) - RJ-45 ¦ 1 x console - RJ-45 ¦ 2 x USB - Type A ¦ 1 x management (mini-USB) |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | TCP/IP, UDP/IP, IPSec, SCTP, HTTP, HTTPs, IPv4, IPv6 |
| OS Provided: | FortiOS |
| Performance: | IPS throughput (enterprise traffic mix): 4.2 Gbps ¦ NGFW throughput (enterprise traffic mix): 4 Gbps ¦ Threat protection throughput (enterprise traffic mix): 3 Gbps ¦ Firewall throughput (1518-byte UDP): 52 Gbps ¦ Firewall throughput (512-byte UDP): 52 Gb |
| Power Consumption Operational: | 135 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Yes |
| Processors Installed: | Fortinet FortiASIC CP8/NP6 |
| Remote Management Protocol: | HTTP, HTTPS |
| Status Indicators: | Power, status, alarm, HA |
| Version: | original |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Weight: | 9.18 kg |
| Width: | 43.75 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
