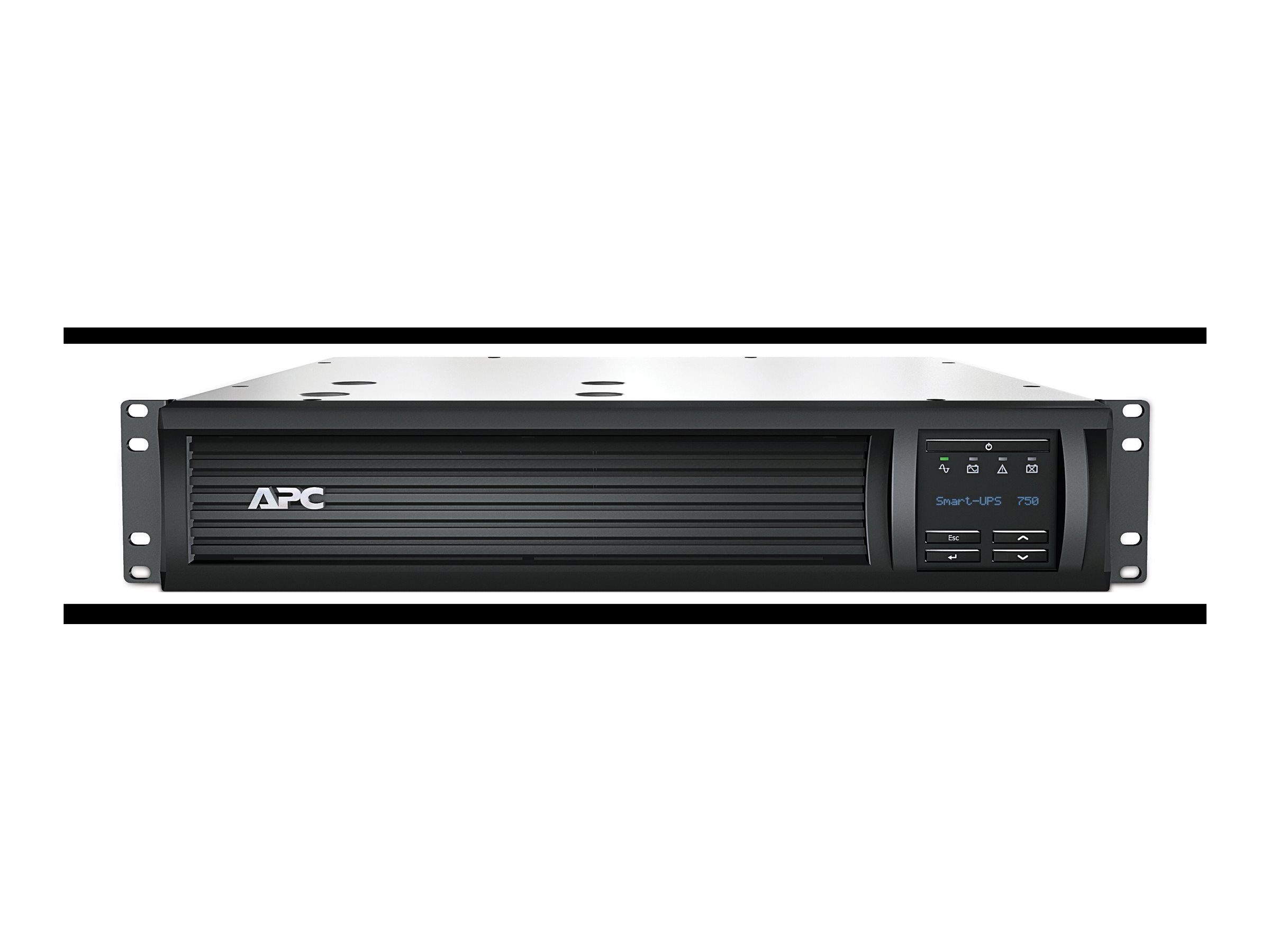

APC SMT750RM2U
APC Smart-UPS 750VA LCD RM 2U 120V
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
APC Smart-UPS 750VA LCD RM 2U 120V
| Cables Included: | Serial cable ¦ USB cable ¦ Power cable - integrated - 2.4 m |
|---|---|
| Compliant Standards: | FCC Class A certified, CSA, UL 1449, UL 1778, FCC Part 15, RoHS Exemption 7b, REACH |
| Depth: | 40.6 cm |
| Designed For: | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5 |
| Device Type: | UPS - rack-mountable |
| Enclosure Colour: | Black |
| Expansion Slots: | 1 SmartSlot |
| Features: | Audible alarm, LCD display, Automatic Voltage Regulation (AVR) |
| Frequency Provided: | 57 - 63 Hz |
| Frequency Required: | 50/60 Hz |
| Height: | 8.9 cm |
| Height (Rack Units): | 2U |
| Humidity Range Operating: | 0 - 95% |
| Input Connectors: | Power NEMA 5-15 |
| Input Voltage: | AC 120 V |
| Input Voltage Range: | AC 82 - 144 V |
| Input Voltage Range (Adjustable): | AC 75 - 154 V |
| Interfaces: | 1 x USB ¦ 1 x serial |
| Manufacturer: | APC Schneider |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Output Voltage: | 120 V 57 - 63 Hz |
| Output Waveform: | Sinewave |
| Power Capacity: | 500 Watt / 750 VA |

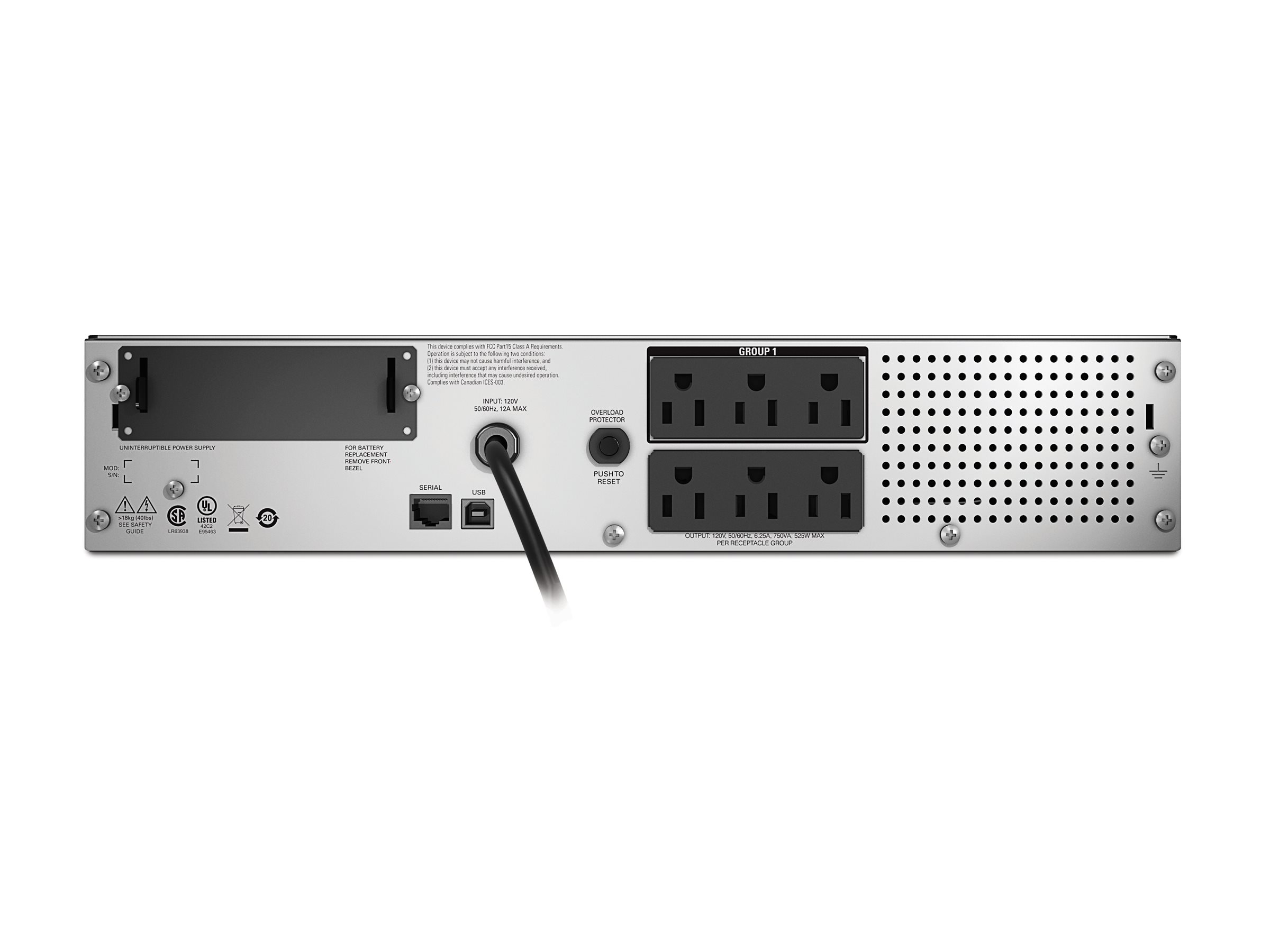

| Power Output Connectors Details: | 6 x power NEMA 5-15 |
| Rack Mounting Kit: | Included |
| Recharge Time: | 3 hours |
| Remote Management Interface: | RS-232, USB |
| Run Time (Up To): | 5.5 min at full load ¦ 16 min at half load |
| Shipping Depth: | 58.4 cm |
| Shipping Height: | 24.1 cm |
| Shipping Weight: | 21.2 kg |
| Shipping Width: | 54.6 cm |
| Sound Emission: | 42 dBA |
| Surge Energy Rating: | 459 Joules |
| Surge Suppression: | Yes |
| Technology: | Lead Acid |
| UPS Technology: | Line interactive |
| Version: | original |
| Weight: | 17.3 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
|---|---|
| GPSR - product manufacturer: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
| GPSR - EU responsible person: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
| Warnings: | Warnings UPS Systems & Power Distribution International.pdf |
| Safety instructions: | Safety instructions UPS Systems & Power Distribution International.pdf |
APC Smart-UPS 750VA LCD RM 2U 120V
| Cables Included: | Serial cable ¦ USB cable ¦ Power cable - integrated - 2.4 m |
|---|---|
| Compliant Standards: | FCC Class A certified, CSA, UL 1449, UL 1778, FCC Part 15, RoHS Exemption 7b, REACH |
| Depth: | 40.6 cm |
| Designed For: | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5 |
| Device Type: | UPS - rack-mountable |
| Enclosure Colour: | Black |
| Expansion Slots: | 1 SmartSlot |
| Features: | Audible alarm, LCD display, Automatic Voltage Regulation (AVR) |
| Frequency Provided: | 57 - 63 Hz |
| Frequency Required: | 50/60 Hz |
| Height: | 8.9 cm |
| Height (Rack Units): | 2U |
| Humidity Range Operating: | 0 - 95% |
| Input Connectors: | Power NEMA 5-15 |
| Input Voltage: | AC 120 V |
| Input Voltage Range: | AC 82 - 144 V |
| Input Voltage Range (Adjustable): | AC 75 - 154 V |
| Interfaces: | 1 x USB ¦ 1 x serial |
| Manufacturer: | APC Schneider |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Output Voltage: | 120 V 57 - 63 Hz |
| Output Waveform: | Sinewave |
| Power Capacity: | 500 Watt / 750 VA |
| Power Output Connectors Details: | 6 x power NEMA 5-15 |
| Rack Mounting Kit: | Included |
| Recharge Time: | 3 hours |
| Remote Management Interface: | RS-232, USB |
| Run Time (Up To): | 5.5 min at full load ¦ 16 min at half load |
| Shipping Depth: | 58.4 cm |
| Shipping Height: | 24.1 cm |
| Shipping Weight: | 21.2 kg |
| Shipping Width: | 54.6 cm |
| Sound Emission: | 42 dBA |
| Surge Energy Rating: | 459 Joules |
| Surge Suppression: | Yes |
| Technology: | Lead Acid |
| UPS Technology: | Line interactive |
| Version: | original |
| Weight: | 17.3 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
|---|---|
| GPSR - product manufacturer: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
| GPSR - EU responsible person: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
