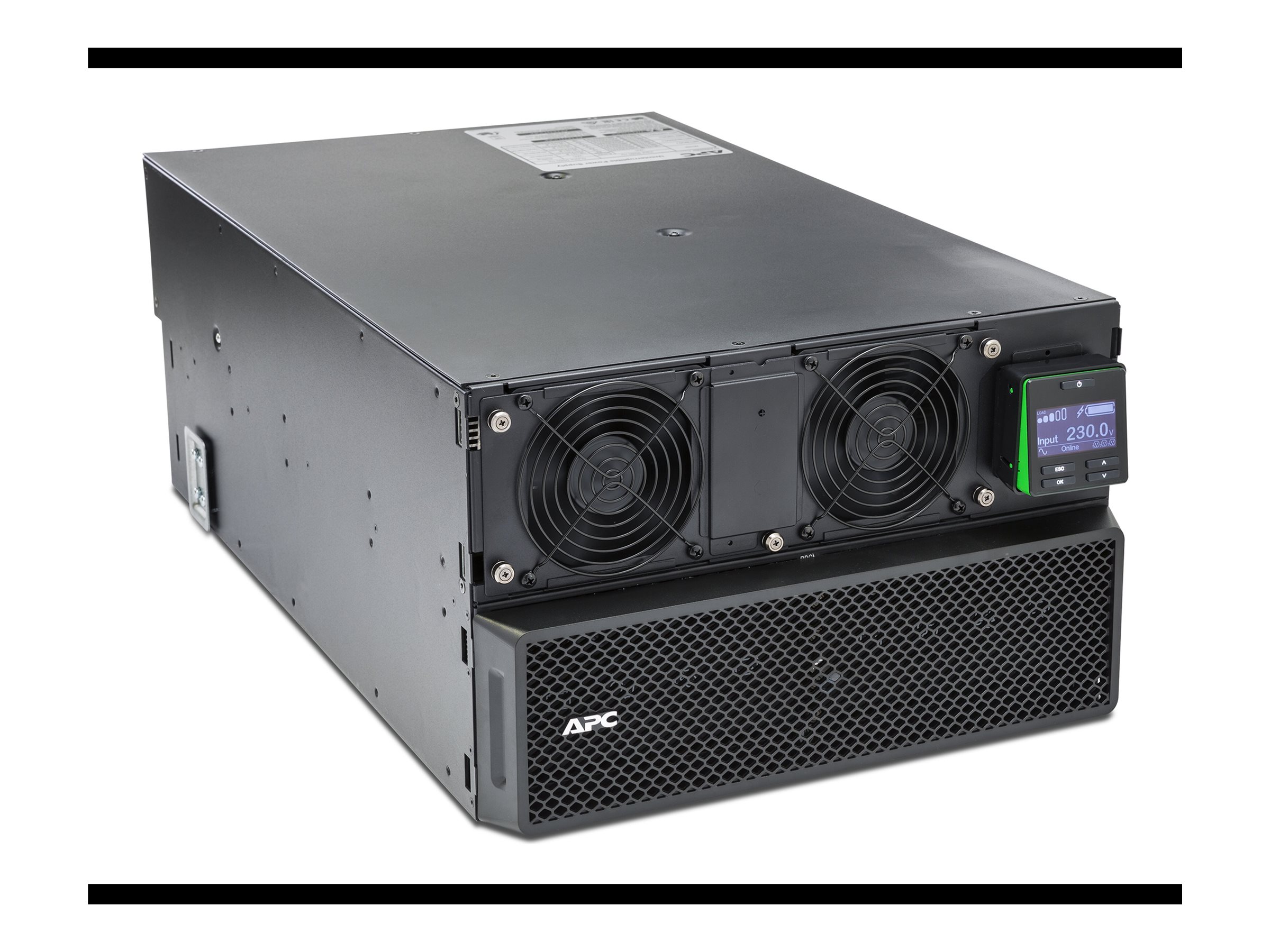

APC SRT10KRMXLI
APC Smart-UPS SRT 10000VA RM 230V
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
APC Smart-UPS SRT 10000VA RM 230V
| Compliant Standards: | C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC |
|---|---|
| Depth: | 71.5 cm |
| Designed For: | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, ACF001, ACF002, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR2400, AR2400FP1, AR2401, AR2407, AR |
| Device Type: | UPS - rack-mountable |
| Efficiency: | 98% |
| Enclosure Colour: | Black |
| Expansion Slots: | 1 (total) / 1 (free) x SmartSlot |
| Features: | Audible alarm, LCD display |
| Frequency Provided: | 50/60 Hz |
| Frequency Required: | 45 - 65 Hz |
| Height: | 26.3 cm |
| Height (Rack Units): | 6U |
| Humidity Range Operating: | 0 - 95% (non-condensing) |
| Input Connectors: | Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G) |
| Input Voltage: | AC 230 V |
| Interfaces: | 1 x management (Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x serial - RJ-45 |
| Manufacturer: | APC Schneider |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Output Voltage: | AC 230 V ± 3% - 50/60 Hz |
| Output Waveform: | Sinewave |
| Power Capacity: | 10 kW / 10000 VA |
| Power Output Connectors Details: | 6 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19 ¦ 1 x hardwire 3-wire (HN + G) ¦ 3 x IEC connector |
| Recharge Time: | 3 hours |
| Remote Management Interface: | Ethernet 10/100, USB |
| Run Time (Up To): | 3.8 min at full load ¦ 11.5 min at half load |
| Shipping Depth: | 1 m |
| Shipping Height: | 46.1 cm |
| Shipping Weight: | 130 kg |
| Shipping Width: | 60 cm |
| Software Included: | APC PowerChute Business Edition |
| Sound Emission: | 55 dBA |
| Surge Energy Rating: | 480 Joules |
| Surge Suppression: | Yes |
| Technology: | Lead Acid |
| UPS Technology: | On-line |
| Version: | original |
| Weight: | 111.82 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
|---|---|
| GPSR - product manufacturer: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
| GPSR - EU responsible person: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
| Warnings: | Warnings UPS Systems & Power Distribution International.pdf |
| Safety instructions: | Safety instructions UPS Systems & Power Distribution International.pdf |
APC Smart-UPS SRT 10000VA RM 230V
| Compliant Standards: | C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC |
|---|---|
| Depth: | 71.5 cm |
| Designed For: | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, ACF001, ACF002, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR2400, AR2400FP1, AR2401, AR2407, AR |
| Device Type: | UPS - rack-mountable |
| Efficiency: | 98% |
| Enclosure Colour: | Black |
| Expansion Slots: | 1 (total) / 1 (free) x SmartSlot |
| Features: | Audible alarm, LCD display |
| Frequency Provided: | 50/60 Hz |
| Frequency Required: | 45 - 65 Hz |
| Height: | 26.3 cm |
| Height (Rack Units): | 6U |
| Humidity Range Operating: | 0 - 95% (non-condensing) |
| Input Connectors: | Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G) |
| Input Voltage: | AC 230 V |
| Interfaces: | 1 x management (Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x serial - RJ-45 |
| Manufacturer: | APC Schneider |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Output Voltage: | AC 230 V ± 3% - 50/60 Hz |
| Output Waveform: | Sinewave |
| Power Capacity: | 10 kW / 10000 VA |
| Power Output Connectors Details: | 6 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19 ¦ 1 x hardwire 3-wire (HN + G) ¦ 3 x IEC connector |
| Recharge Time: | 3 hours |
| Remote Management Interface: | Ethernet 10/100, USB |
| Run Time (Up To): | 3.8 min at full load ¦ 11.5 min at half load |
| Shipping Depth: | 1 m |
| Shipping Height: | 46.1 cm |
| Shipping Weight: | 130 kg |
| Shipping Width: | 60 cm |
| Software Included: | APC PowerChute Business Edition |
| Sound Emission: | 55 dBA |
| Surge Energy Rating: | 480 Joules |
| Surge Suppression: | Yes |
| Technology: | Lead Acid |
| UPS Technology: | On-line |
| Version: | original |
| Weight: | 111.82 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
|---|---|
| GPSR - product manufacturer: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
| GPSR - EU responsible person: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
