APC SRT6KXLT

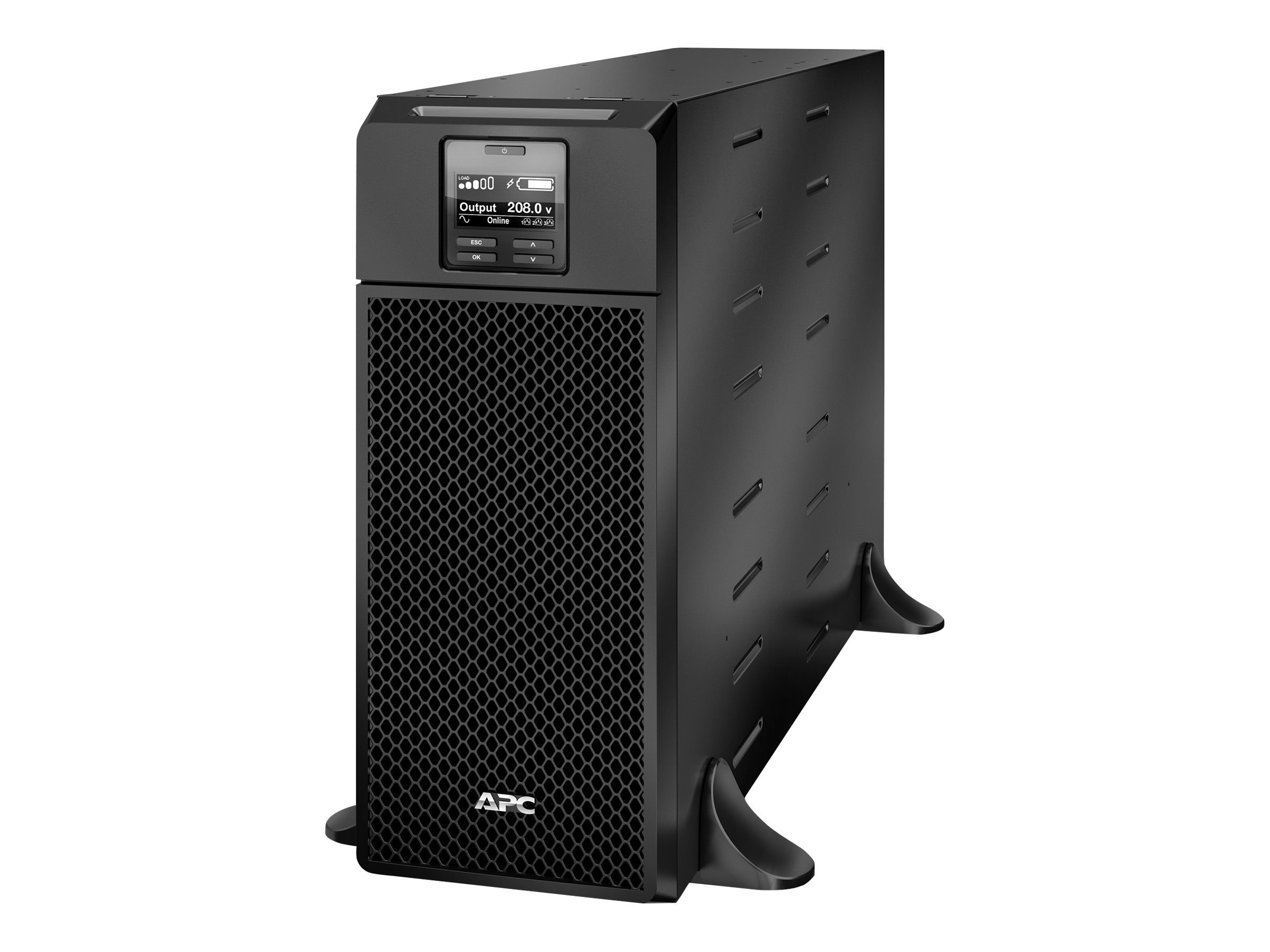

APC Smart-UPS SRT 6000VA 208V
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
APC Smart-UPS SRT 6000VA 208V
| Cables Included: | USB cable - external |
|---|---|
| Circuit Protection: | Circuit breaker |
| Compliant Standards: | NOM, UL 1778, RoHS, FCC Part 15 A, IP20, CSA C22.2 No.107.3-05 |
| Depth: | 71.9 cm |
| Designed For: | P/N: SRT5KRMTF, SRT5KTF |
| Device Type: | UPS - rack-mountable / external |
| ENERGY STAR: | Yes |
| Efficiency: | 94.5% at 50% Load, 94.4% at 100% Load, 93% at 25% Load, 94.6% at 75% Load |
| Enclosure Colour: | Black |
| Expansion Slots: | 1 (total) / 1 (free) x SmartSlot |
| Features: | Audible alarm, LCD display, internal bypass, LED indicators, cold-start function, firmware upgradable, automatic self-test, hot-swappable batteries, reset breaker, auto restart, temperature-compensated battery charging, generator compatible, Intelligent B |
| Frequency Provided: | 50/60 Hz ± 3Hz |
| Frequency Required: | 40 - 70 Hz |
| Height: | 43.2 cm |
| Height (Rack Units): | 4U |
| Humidity Range Operating: | 0 - 95% (non-condensing) |
| Included Accessories: | Temperature probe, removable support feet |
| Input Connectors: | 1 x hardwire 3-wire (2PH + G) |
| Input Voltage: | AC 208/220/240 V |
| Input Voltage Range: | AC 160 - 275 V |
| Input Voltage Range (Adjustable): | AC 100 - 275 V |
| Interfaces: | 1 x management (RS-232) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x EPO (emergency power off) |
| Manufacturer: | APC Schneider |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Output Voltage: | AC 208/220/240 V ± 2% - 50/60 Hz |
| Output Waveform: | Sinewave |
| Power Capacity: | 6 kW / 6000 VA |
| Power Output Connectors Details: | 2 x power NEMA L6-20R ¦ 3 x power NEMA L6-30R ¦ 1 x hardwire 3-wire (2PH + G) |
| Recharge Time: | 1.5 hours |
| Remote Management Interface: | Ethernet 10/100, USB, serial |
| Remote Management Protocol: | SNMP, HTTP |
| Run Time (Up To): | 2 min at full load ¦ 8 min at half load |
| Shipping Depth: | 96 cm |
| Shipping Height: | 37 cm |
| Shipping Weight: | 64.41 kg |
| Shipping Width: | 61 cm |
| Software Included: | APC PowerChute |
| Sound Emission: | 55 dBA |
| Surge Energy Rating: | 480 Joules |
| Surge Suppression: | Yes |
| Technology: | Lead Acid |
| Total Harmonic Distortion (THD): | 2 % |
| Type: | Expandable |
| UPS Technology: | On-line |
| Version: | original |
| Voltage Provided: | 192 V |
| Weight: | 61.23 kg |
| Width: | 17.4 cm |
| GPSR - economic actor: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
|---|---|
| GPSR - product manufacturer: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
| GPSR - EU responsible person: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
| Warnings: | Warnings UPS Systems & Power Distribution International.pdf |
| Safety instructions: | Safety instructions UPS Systems & Power Distribution International.pdf |
