APC SURT20KRMXLT
APC Smart-UPS RT 20kVA RM 208V
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
APC Smart-UPS RT 20kVA RM 208V
| Cables Included: | Serial cable - external |
|---|---|
| Circuit Protection: | Circuit breaker |
| Compliant Standards: | UL 1449, UL 1778 |
| Depth: | 77.3 cm |
| Designed For: | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5 |
| Device Type: | UPS - rack-mountable |
| Enclosure Colour: | Black |
| Expansion Slots: | 1 (total) / 0 (free) x SmartSlot |
| Features: | Audible alarm, emergency power off, internal bypass, LED indicators |
| Frequency Provided: | 50/60 Hz |
| Frequency Required: | 50/60 Hz |
| Height: | 53.3 cm |
| Height (Rack Units): | 12U |
| Input Connectors: | 1 x hardwire 3-wire (2PH + G) |
| Input Voltage: | AC 208/240 V |
| Input Voltage Range: | AC 160 - 280 V |
| Interfaces: | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (Ethernet) - RJ-45 ¦ 1 x EPO (emergency power off) |
| Manufacturer: | APC Schneider |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Output Voltage: | AC 120/208 V ± 5% - 50/60 Hz |
| Output Waveform: | Sinewave |
| Power Capacity: | 16 kW / 20000 VA |

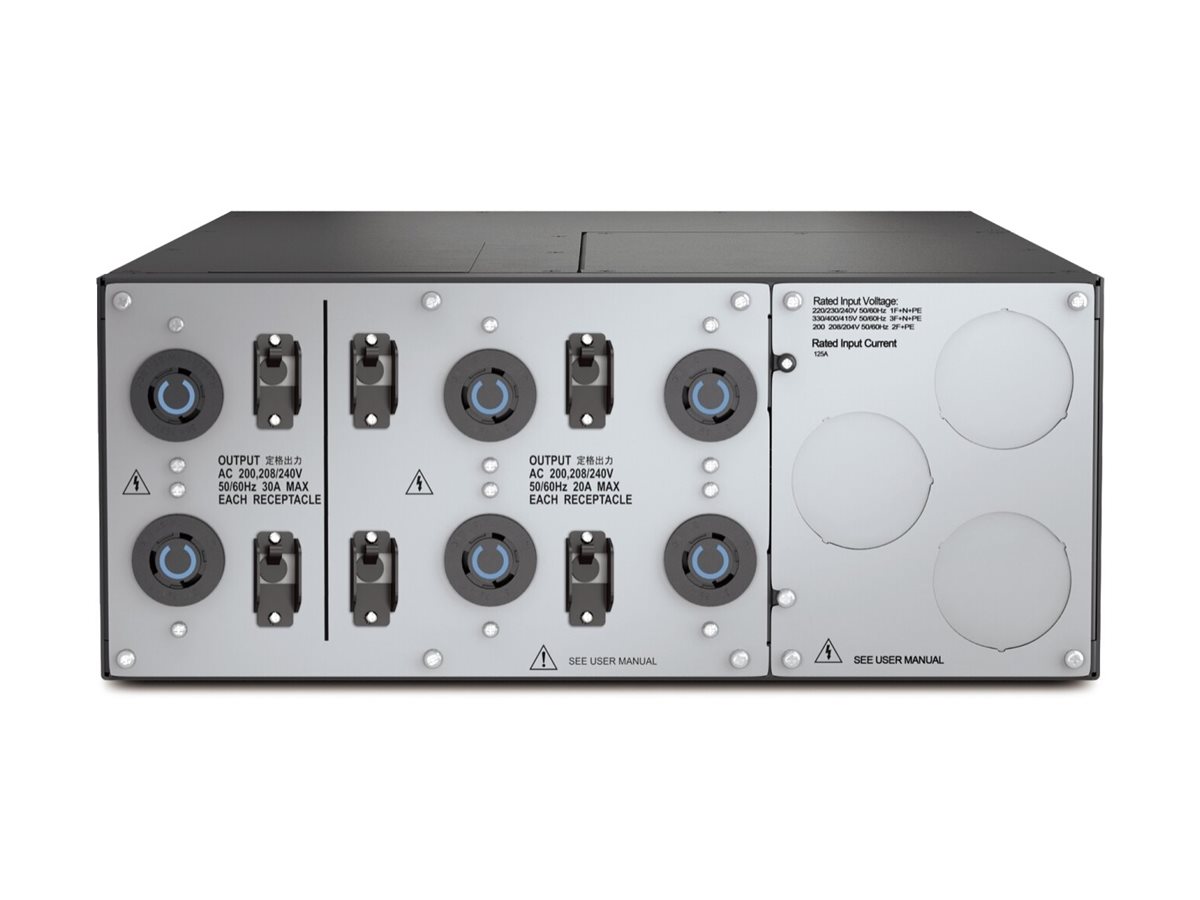

| Power Output Connectors Details: | 4 x power NEMA L6-20R ¦ 2 x power NEMA L6-30R ¦ 1 x hardwire 3-wire (2PH + G) |
| Quantity: | 4 |
| Rack Mounting Kit: | Included |
| Recharge Time: | 2.5 hours |
| Remote Management Interface: | Ethernet 10/100, RS-232 |
| Remote Management Protocol: | SNMP 1, Telnet, SNMP 3, HTTP, HTTPS |
| Run Time (Up To): | 4.9 min at full load |
| Shipping Depth: | 100 cm |
| Shipping Height: | 99 cm |
| Shipping Weight: | 314 kg |
| Shipping Width: | 61 cm |
| Software Included: | Drivers & Utilities |
| Sound Emission: | 59 dBA |
| Surge Suppression: | Yes |
| Technology: | Lead Acid |
| UPS Technology: | On-line |
| Version: | original |
| Voltage Provided: | 192 V |
| Weight: | 248 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
|---|---|
| GPSR - product manufacturer: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
| GPSR - EU responsible person: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
| Warnings: | Warnings UPS Systems & Power Distribution International.pdf |
| Safety instructions: | Safety instructions UPS Systems & Power Distribution International.pdf |
