APC SYH4K6RMT
APC Symmetra RM 4kVA Scalable to 6kVA N+1 208/240V
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
APC Symmetra RM 4kVA Scalable to 6kVA N+1 208/240V

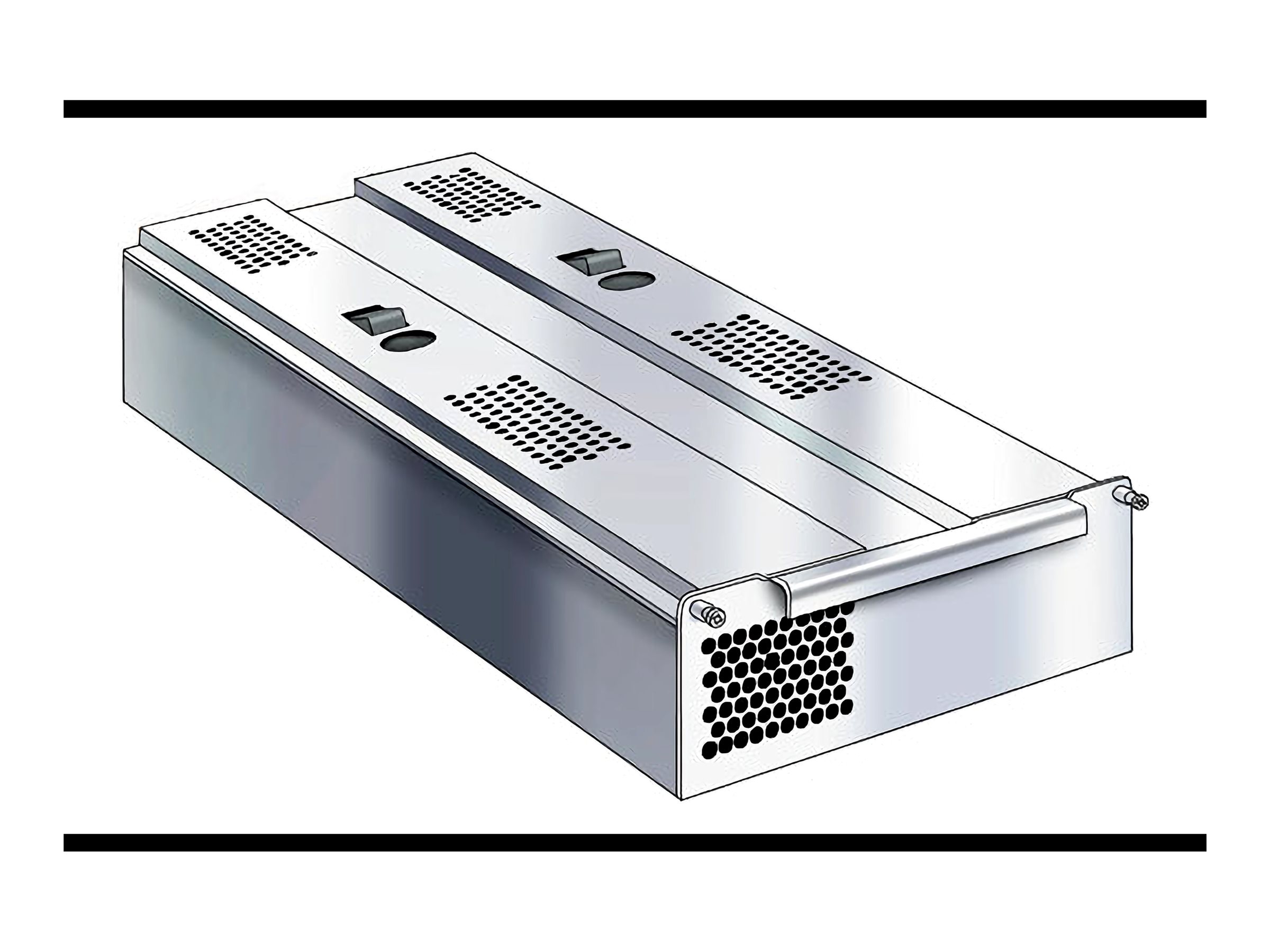

| Battery Enclosure Type: | Plug-in module |
|---|---|
| Cables Included: | Power cable 1.8 m |
| Compliant Standards: | FCC Class A certified |
| Compliant Standards: | CSA, UL 1778 |
| Depth: | 73 cm |
| Designed For: | P/N: ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF400, AP5602, AP5606, AP5607, AP5616, AR203A, AR204A, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G |
| Device Type: | Power array - rack-mountable |
| Enclosure Colour: | Black |
| Expansion Slots: | 2 (total) / 1 (free) x SmartSlot |
| Features: | Audible alarm |
| Frequency Provided: | 57 - 63 Hz |
| Frequency Required: | 50/60 Hz |
| Height: | 35.6 cm |
| Height (Rack Units): | 8U |
| Humidity Range Operating: | 0 - 95% |
| Humidity Range Storage: | 0 - 95% |

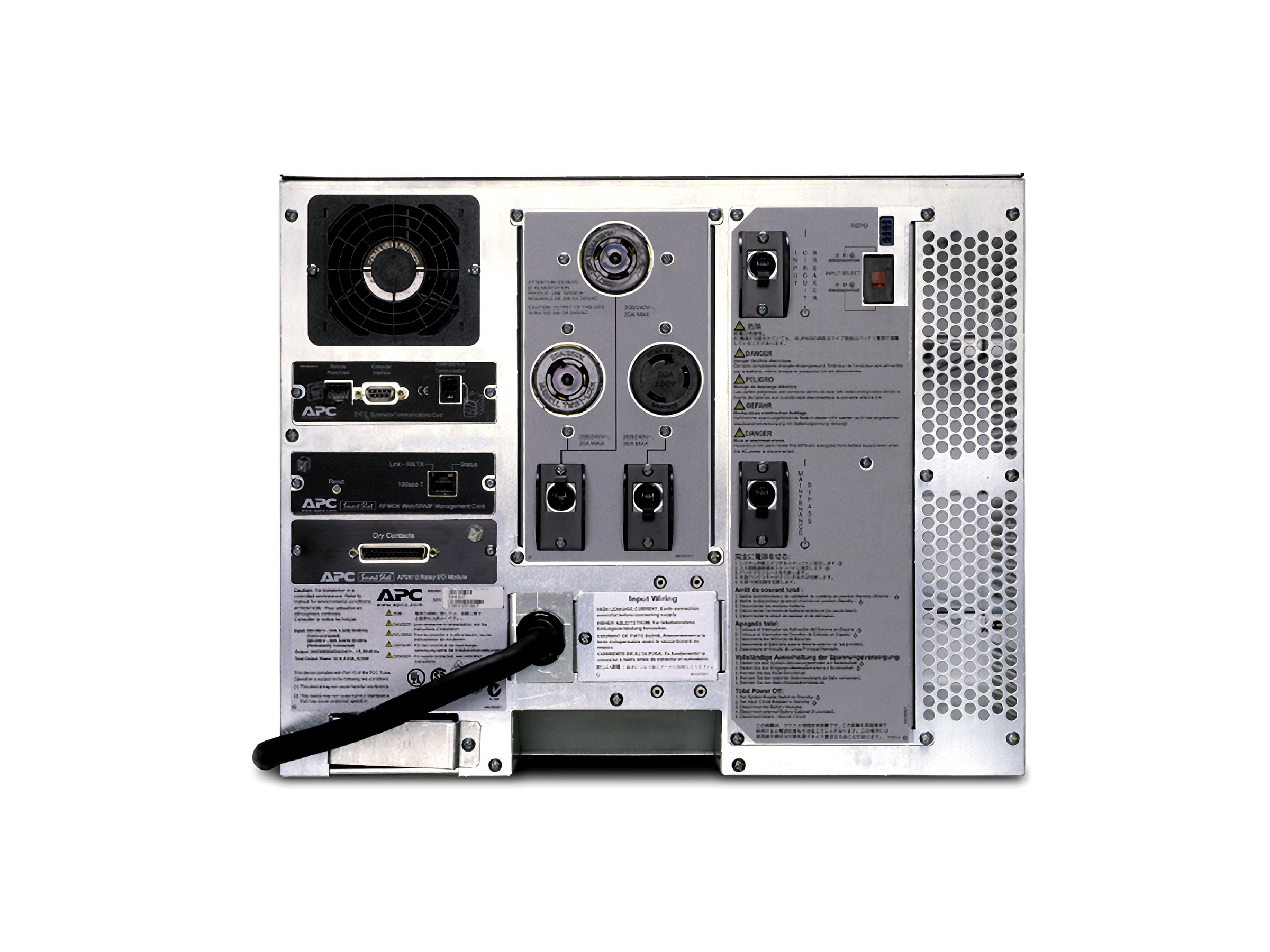

| Input Connectors: | 1 x hardwire 3-wire (2PH + G) |
| Input Voltage: | AC 208/240 V |
| Input Voltage Range: | AC 155 - 276 V |
| Interfaces: | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x LAN - RJ-45 |
| Localisation: | Canada, United States |
| Manufacturer: | APC Schneider |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 45 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -15 °C |
| Output Voltage: | AC 208/240 V 57 - 63 Hz |
| Output Waveform: | Sinewave |
| Power Capacity: | 2800 Watt |
| Power Output Connectors Details: | 2 x power NEMA L6-20R ¦ 1 x power NEMA L6-30R |
| Quantity: | 2 |
| Rack Mounting Kit: | Included |
| Recharge Time: | 4 hours |
| Remote Management Interface: | Ethernet 10/100 |
| Remote Management Protocol: | SNMP, Telnet, HTTP |
| Run Time (Up To): | 12.4 min at full load |
| Software Included: | APC PowerChute Symmetra Bundle |
| Sound Emission: | 60 dBA |
| Surge Suppression: | Yes |
| Technology: | Lead Acid |
| Version: | original |
| Weight: | 104.1 kg |
| Width: | 48.3 cm |
| GPSR - economic actor: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
|---|---|
| GPSR - product manufacturer: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
| GPSR - EU responsible person: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
| Warnings: | Warnings UPS Systems & Power Distribution International.pdf |
| Safety instructions: | Safety instructions UPS Systems & Power Distribution International.pdf |
