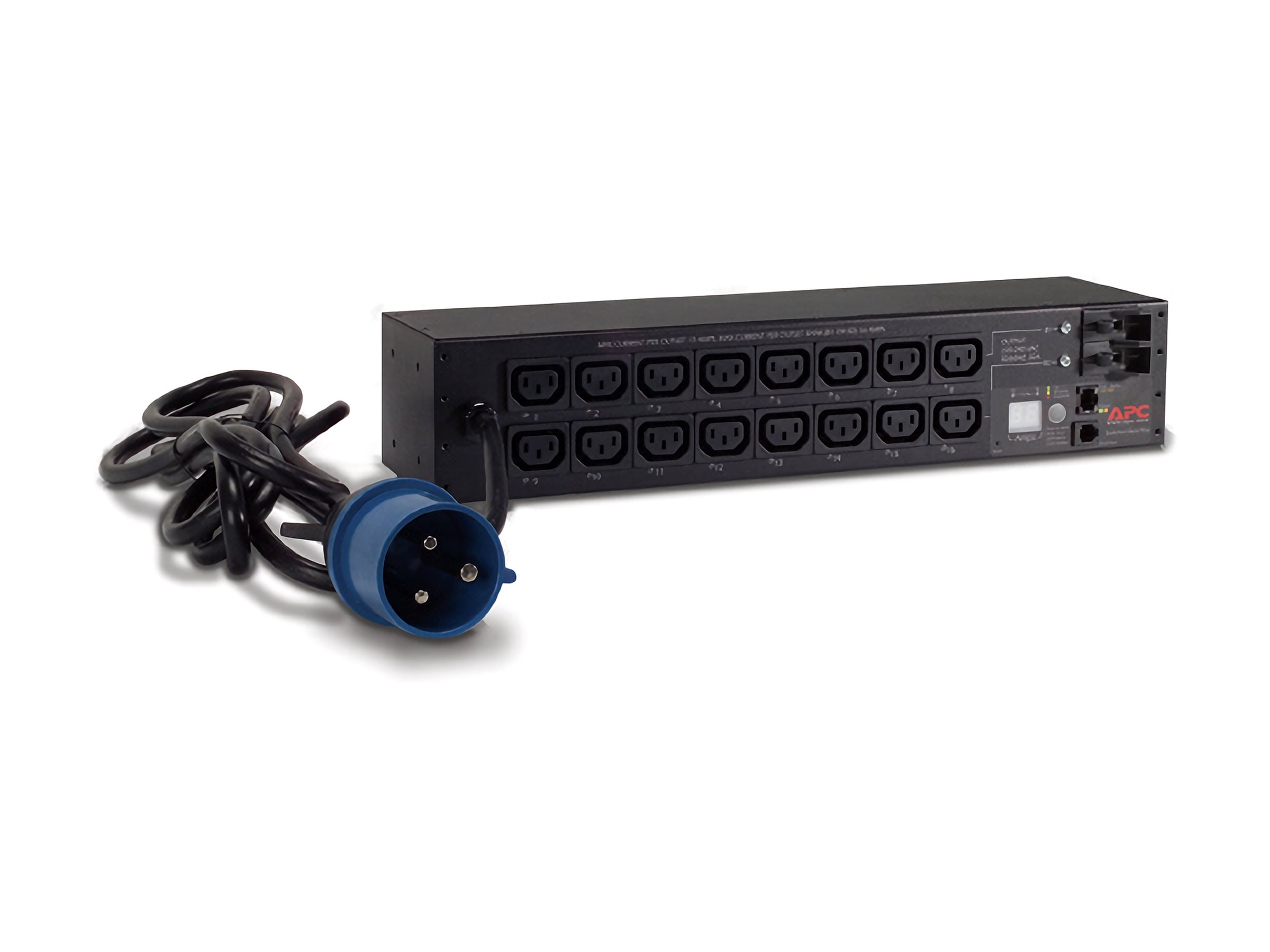

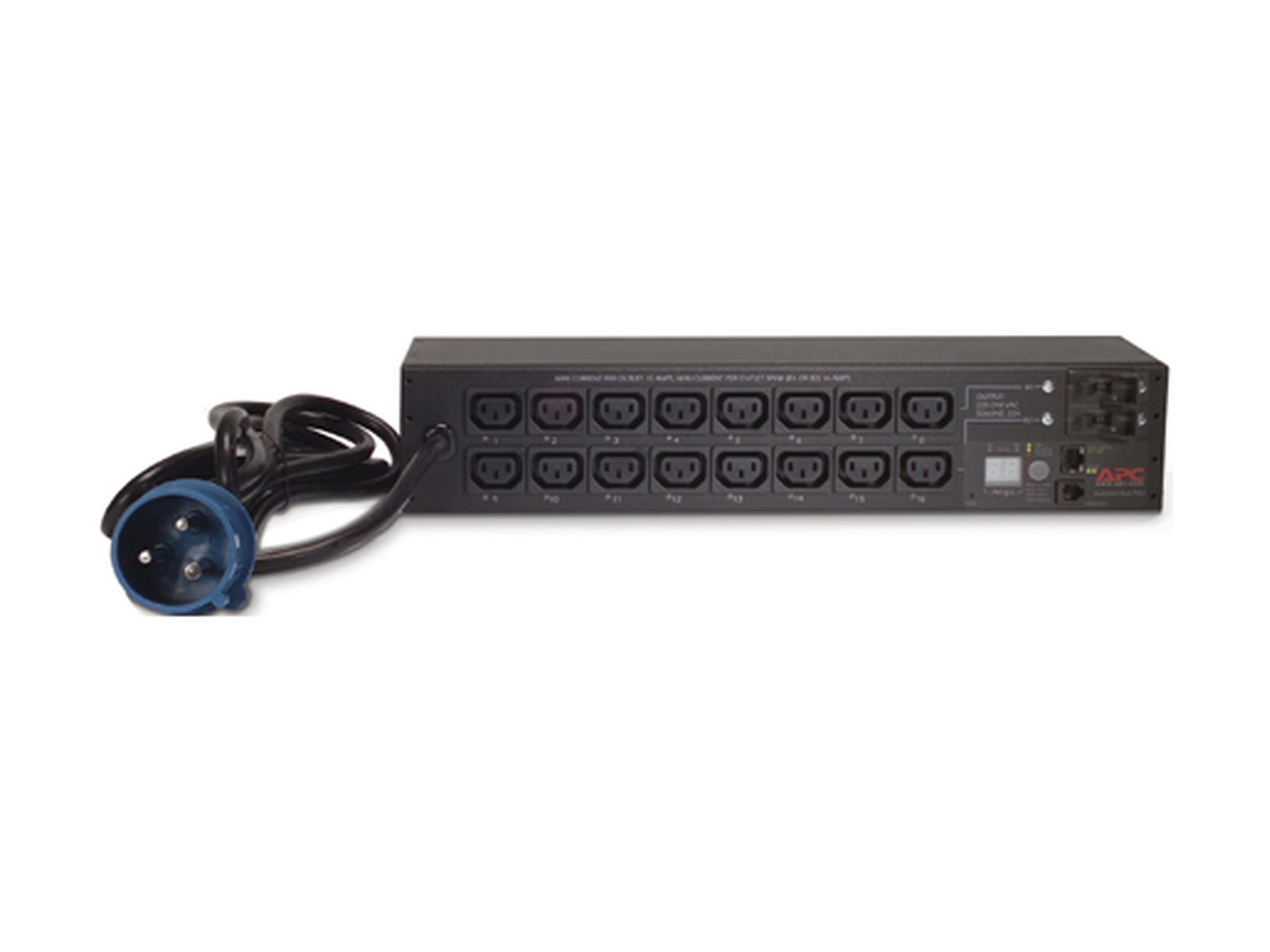

Schneider AP7922B
Rack PDU, Switched, 2U, 32A, 230V, (16)C13
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Rack PDU, Switched, 2U, 32A, 230V, (16)C13
| Cable Length: | 3.66 m |
|---|---|
| Cables Included: | Power cable 3.66 m |
| Compliant Standards: | EN55022, VDE, EN55024, CISPR 22, AS/NZS, EAC |
| Depth: | 11.43 cm |
| Designed For: | P/N: ACDC2513, AP7950B, AR106, AR112, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR315 |
| Device Type: | Power distribution unit - rack-mountable |
| Features: | LED display, current meter, overload protection |
| Frequency Required: | 47 - 63 Hz |
| Height: | 8.89 cm |
| Height (Rack Units): | 2U |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Input Connectors: | 1 x power IEC 60309 32A |
| Input Voltage: | AC 230 V |
| Input Voltage Range: | ± 10% |
| Interfaces: | 1 x management (Ethernet) - RJ-45 ¦ 1 x serial - RJ-11 |
| Manufacturer: | Schneider APC |
| Max Electric Current: | 32 A |
| Max Operating Temperature: | 45 °C |
| Min Operating Temperature: | -5 °C |
| Power Output Connectors Details: | 16 x power IEC 60320 C13 |
| Remote Management Interface: | Ethernet 10/100 |
| Remote Management Protocol: | SNMP, Telnet, HTTP, SSH |
| Shipping Weight: | 6.53 kg |
| Version: | original |
| Weight: | 4.49 kg |
| Width: | 44.45 cm |
| GPSR - economic actor: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade@schneider-electric.com |
|---|---|
| GPSR - product manufacturer: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade@schneider-electric.com |
| GPSR - EU responsible person: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade@schneider-electric.com |
| EU Data-Act-Url: | https://www.se.com/de/de/about-us/sustainability/responsibility-ethics/ |
| Warnings: | Warnings UPS Systems & Power Distribution International.pdf |
| Safety instructions: | Safety instructions UPS Systems & Power Distribution International.pdf |
