Aruba AM381A

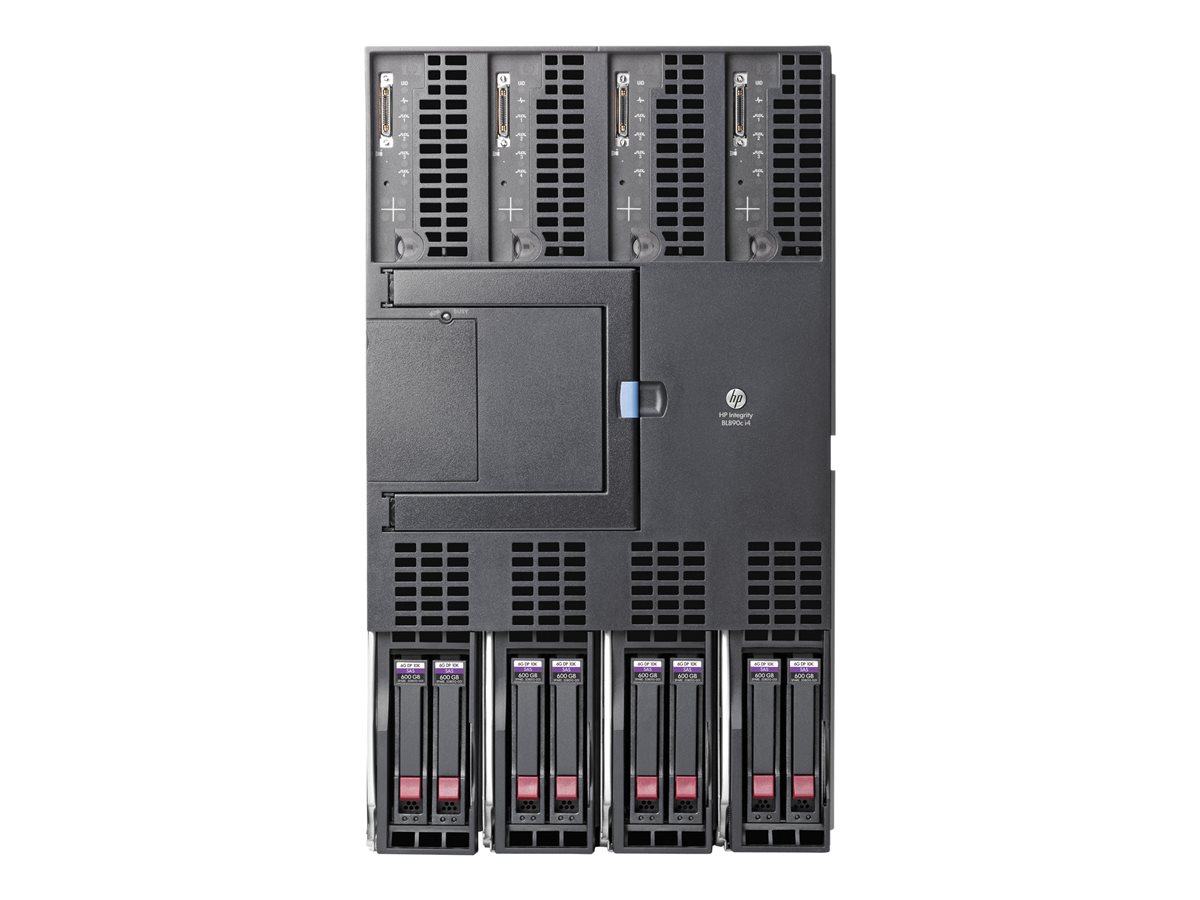

HPE Integrity BL890c c3k Server Blade
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
HPE Integrity BL890c c3k Server Blade
| Bays: | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
|---|---|
| Buffer Size: | 512 MB |
| CPU: | No CPU |
| CPU Upgradability: | Upgradable |
| Compliant Standards: | IEEE 802.3x, IEEE 802.3ap |
| Controller Interface Type: | SAS |
| Data Link Protocol: | Gigabit Ethernet, 10 Gigabit Ethernet |
| Depth: | 48.51 cm |
| Ethernet Controller: | 8 x HP NC553i |
| Ethernet Ports: | 16 x 10 Gigabit Ethernet |
| Features: | Registered |
| Form Factor: | DIMM 240-pin |
| Graphics Processor: | ATI ES1000 |
| Height: | 36.63 cm |
| Hot-Swap Bays Qty: | 8 |
| Humidity Range Operating: | 15 - 80% |
| Installed Qty: | 0 GB / 1.5 TB (max) |
| Interface (Bus) Type: | PCI Express x4 |
| Interfaces: | 16 x LAN (10Gigabit Ethernet) ¦ 1 x HPE iLO ¦ 4 x USB |
| Manufacturer: | HPE Aruba |
| Max CPU Qty: | 8 |
| Max Operating Temperature: | 35 °C |
| Min Operating Temperature: | 10 °C |
| Monitor Type: | None. |
| Product Form Factor: | Blade |
| RAID Level: | RAID 0, RAID 1, RAID 10 |
| Remote Management Controller: | Integrated Lights-Out 3 |
| Server Scalability: | 8-way |
| Slots: | 8 (total) / 8 (free) x CPU ¦ 96 (total) / 96 (free) x DIMM 240-pin ¦ 12 (total) / 12 (free) x expansion slot (x8 mode), 96 (Total) / 96 (empty) |
| Storage Controller Name: | Smart Array P410i |
| Technology: | DDR3 SDRAM |
| Type: | No optical drive, Server |
| Upgrade Rule: | 4 modules at a time |
| Version: | original |
| Video Memory: | 128 MB |
| Weight: | 48.08 kg |
| Width: | 20.82 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
|---|---|
| GPSR - product manufacturer: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| EU Data-Act-Url: | https://www.hpe.com/us/en/living-progress/governance/policies.html |
| Warnings: | Warnings Servers International.pdf |
| Safety instructions: | Safety instructions Servers International.pdf |
