HPE AM377A

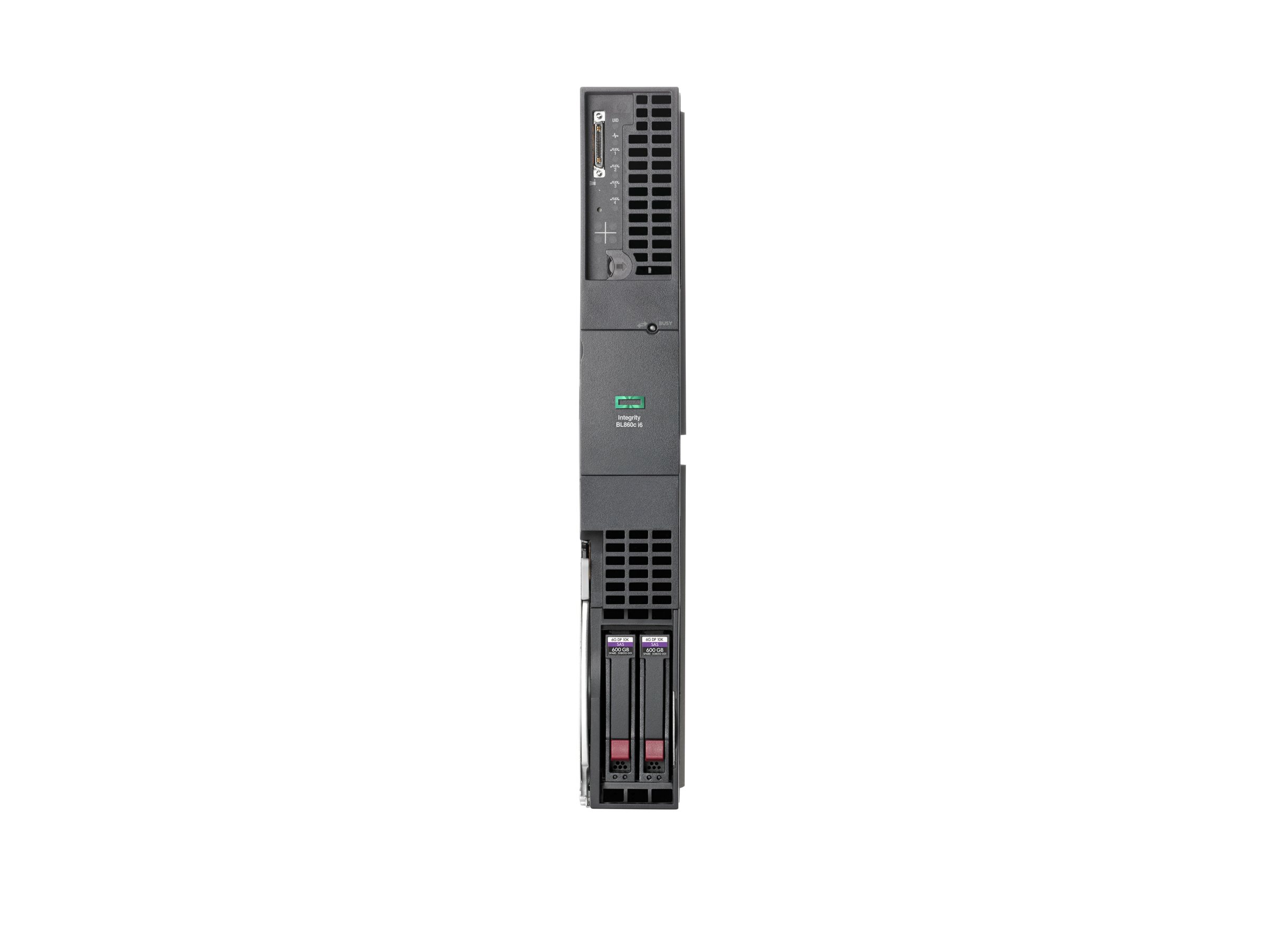

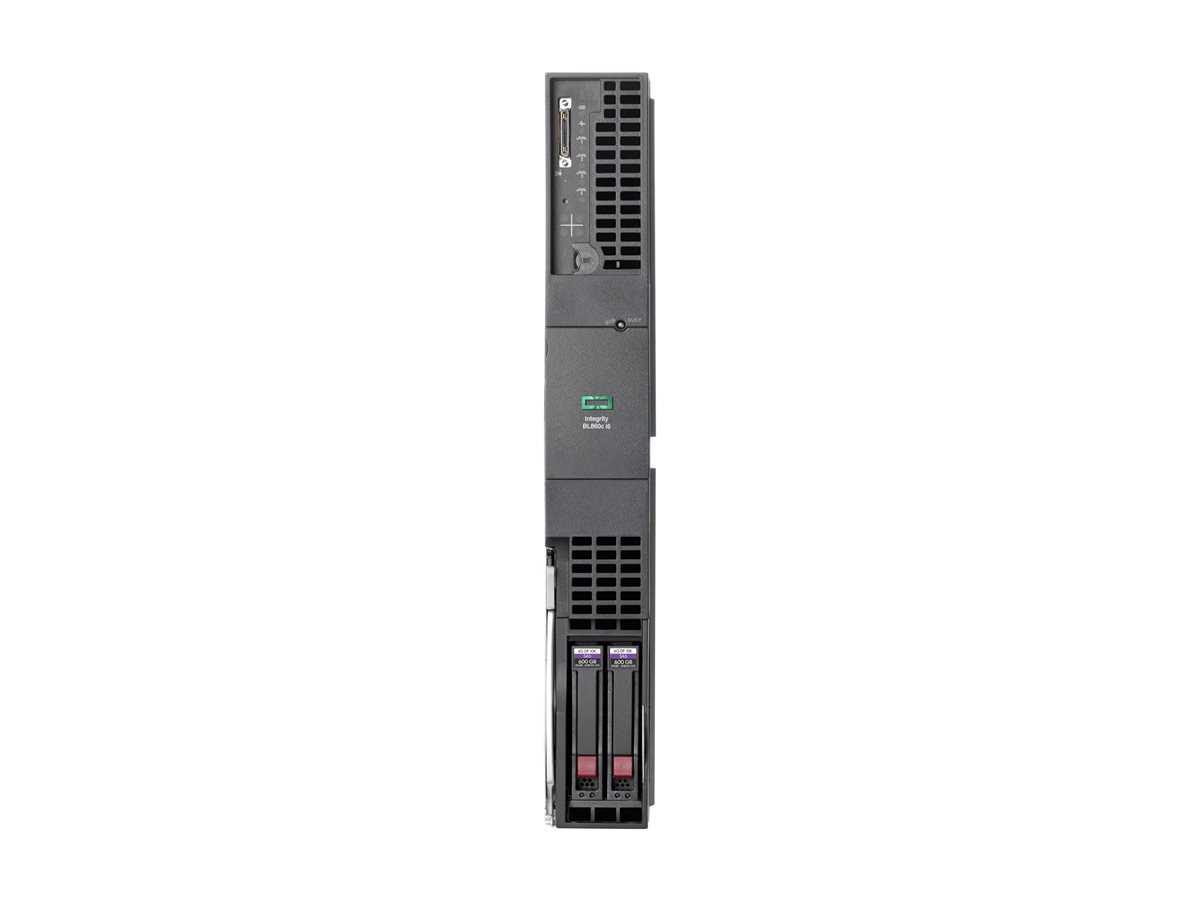

HPE Integrity BL860c Server Blade
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
HPE Integrity BL860c Server Blade
| Bays: | 2 (total) / 2 (free) x hot-swap 2.5" SFF |
|---|---|
| CPU: | No CPU |
| CPU Upgradability: | Upgradable |
| Compliant Standards: | IEEE 802.3x, IEEE 802.3ap |
| Compliant Standards: | ACPI 2.0 |
| Controller Interface Type: | SAS |
| Data Link Protocol: | Gigabit Ethernet, 10 Gigabit Ethernet |
| Depth: | 48.51 cm |
| Ethernet Controller: | 4 x HP NC553i |
| Ethernet Ports: | 4 x 10 Gigabit Ethernet |
| Features: | Administrator password, Registered |
| Form Factor: | DIMM 240-pin |
| Graphics Engine: | ATI ES1000 |
| Height: | 36.63 cm |
| Hot-Swap Bays Qty: | 2 |
| Humidity Range Operating: | 15 - 80% (non-condensing) |
| Installed Qty: | 0 GB / 384 GB (max) |
| Interface (Bus) Type: | PCI Express x4 |
| Interfaces: | 4 x LAN (10Gigabit Ethernet) ¦ 1 x management |
| Manufacturer: | HPE Aruba |
| Max CPU Qty: | 2 |
| Max Operating Temperature: | 35 °C |
| Min Operating Temperature: | 10 °C |
| Monitor Type: | None. |
| OS Certified: | HP-UX BOE 11i v3, HP-UX DCOE 11i v3, HP-UX VSOE 11i v3, HP-UX HAOE 11i v3 |
| Product Form Factor: | Blade |
| RAID Level: | RAID 0, RAID 1, RAID 10 |
| Recommended Use: | Corporate business |
| Remote Management Controller: | Integrated Lights-Out 3 |
| Server Scalability: | 2-way |
| Slots: | 2 (total) / 2 (free) x CPU ¦ 24 (total) / 24 (free) x DIMM 240-pin ¦ 3 (total) / 3 (free) x expansion slot, 24 (Total) / 24 (empty) |
| Storage Controller Name: | Smart Array P410i |
| Technology: | DDR3 SDRAM - ECC |
| Type: | Integrated, Server |
| Version: | original |
| Video Memory: | 128 MB |
| Width: | 5.14 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
|---|---|
| GPSR - product manufacturer: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| EU Data-Act-Url: | https://www.hpe.com/us/en/living-progress/governance/policies.html |
| Warnings: | Warnings Servers International.pdf |
| Safety instructions: | Safety instructions Servers International.pdf |
