HPE 775506-B21

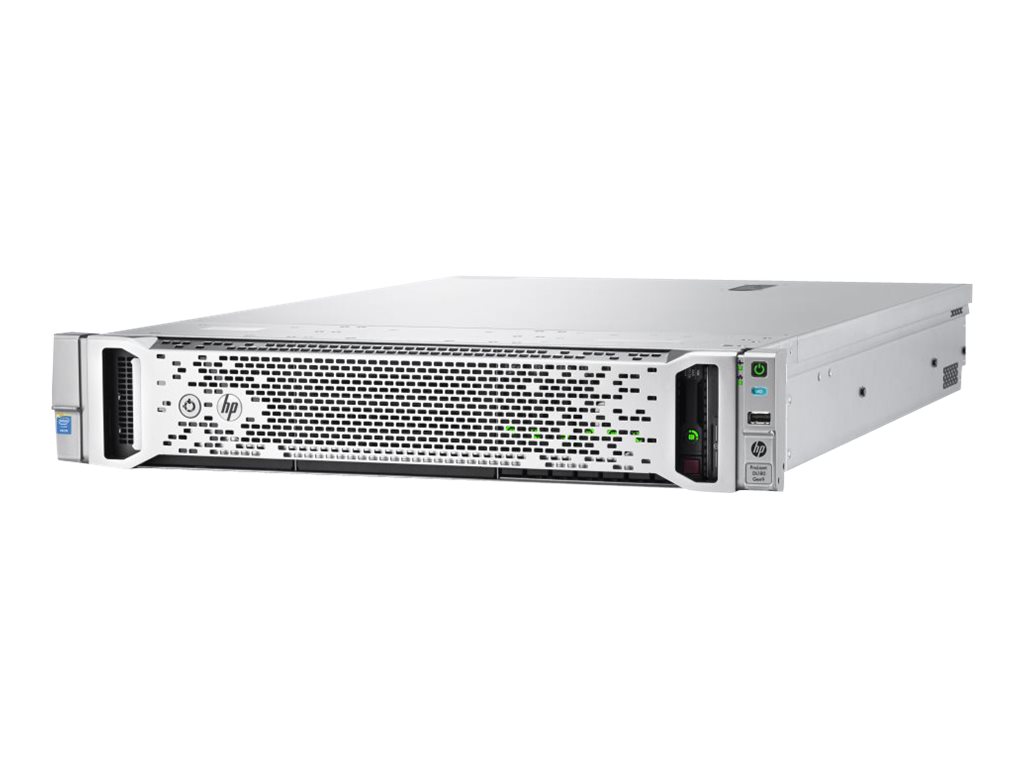

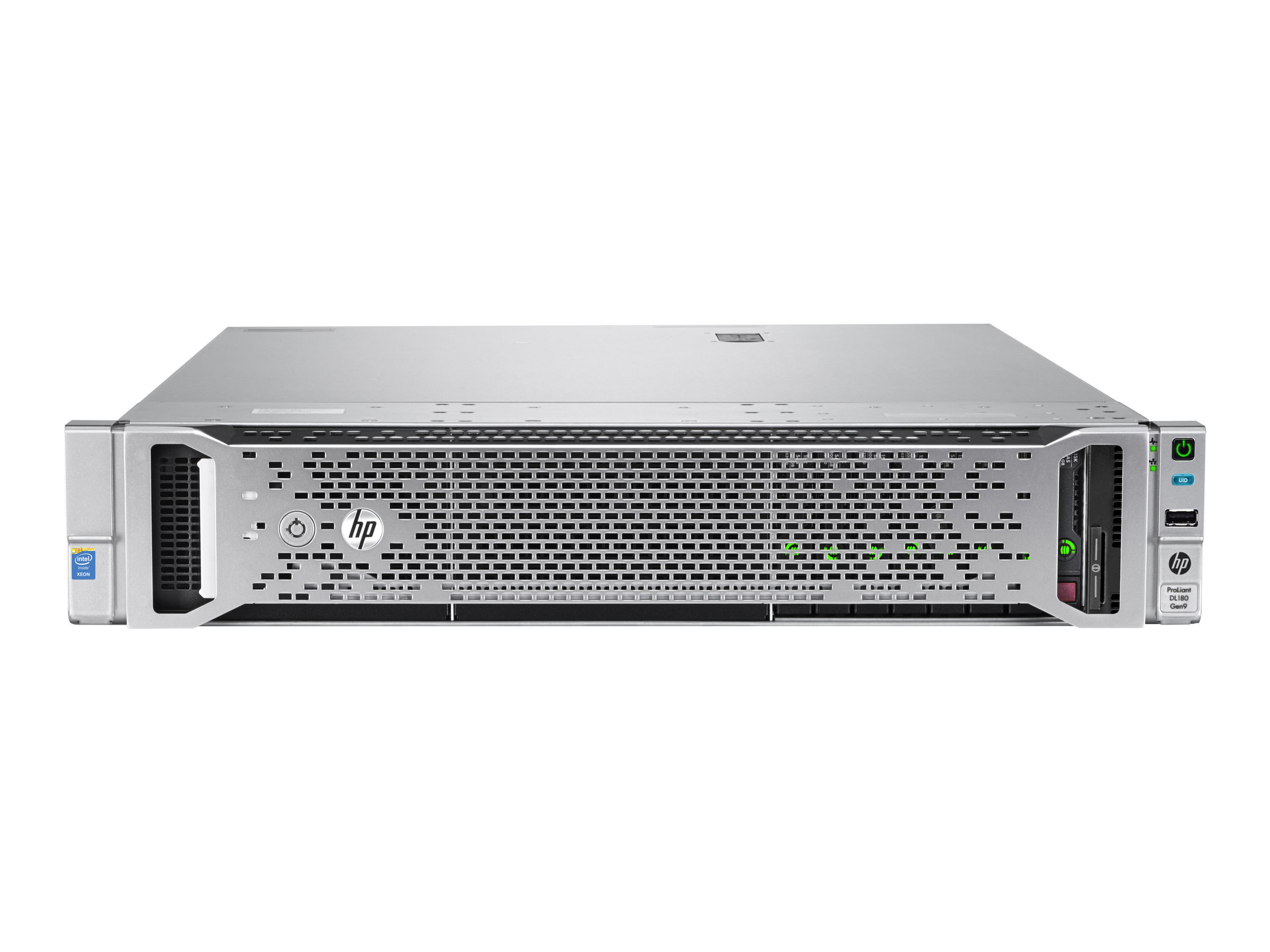

HPE DL180 Gen9 12LFF CTO Svr Server : ProLiant DL180 Family - CTO Gen 9
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
HPE DL180 Gen9 12LFF CTO Svr Server : ProLiant DL180 Family - CTO Gen 9
| Bays: | 12 (total) / 12 (free) x hot-swap 3.5" LFF |
|---|---|
| CPU: | No CPU |
| CPU Socket: | LGA2011-v3 Socket |
| CPU Upgradability: | Upgradable |
| Channel Qty: | 10 |
| Chipset Type: | Intel C612 |
| Compliant Standards: | ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 4943, GB 9254, CNS 14336, CNS 13438 |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az |
| Controller Interface Type: | SATA 6Gb/s |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 60.7 cm |
| Efficiency: | 89% |
| Embedded Security: | Trusted Platform Module (TPM 1.2) Security Chip |
| Ethernet Controller: | HP NC361i |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Features: | Administrator password, power-on password, serial port I/O control, UEFI BIOS, Registered, Load-Reduced DIMM (LRDIMM) |
| Form Factor: | DIMM 288-pin |
| Graphics Processor: | Matrox G200eH2 |
| Height: | 8.75 cm |
| Hot-Swap Bays Qty: | 12 |
| Humidity Range Operating: | 8 - 90% (non-condensing) |
| Included Accessories: | HP Quick Release Ears |
| Installed Qty: | 0 GB / 512 GB (max) |
| Interface (Bus) Type: | PCI Express 2.0 x2 |
| Interfaces: | 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x HPE iLO - RJ-45 ¦ 1 x VGA ¦ 1 x USB 2.0 (1 in front) ¦ 3 x USB 3.0 (2 rear, 1 internal) |
| Localisation: | Region: Worldwide (excluding China, Japan) |
| Manufacturer: | HPE Aruba |
| Max CPU Qty: | 2 |
| Max Operating Temperature: | 35 °C |
| Min Operating Temperature: | 10 °C |
| Monitor Type: | None. |
| OS Certified: | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris |
| Pricing Type: | CTO |
| Product Form Factor: | Rack-mountable - 2U |
| RAID Level: | RAID 0, RAID 1, RAID 5 |
| RAM Supported: | PC4-17000 - 256 GB registered - ECC ¦ PC4-17000 - 512 GB Load-Reduced - ECC |
| Recommended Use: | Small business, corporate business |
| Remote Management Controller: | Integrated Lights-Out 4 |
| Server Scalability: | 2-way |
| Slots: | 2 (total) / 2 (free) x CPU ¦ 16 (total) / 16 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - full-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal), 16 (Total) / 16 (empty) |
| Sound Emission: | 39 dBA |
| Storage Controller Name: | HP Dynamic Smart Array B140i |
| Technology: | DDR4 SDRAM - Advanced ECC |
| Type: | Integrated, Server |
| Version: | original |
| Video Interfaces: | VGA |
| Weight: | 16.59 kg |
| Width: | 44.55 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
|---|---|
| GPSR - product manufacturer: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| EU Data-Act-Url: | https://www.hpe.com/us/en/living-progress/governance/policies.html |
| Warnings: | Warnings Servers International.pdf |
| Safety instructions: | Safety instructions Servers International.pdf |
