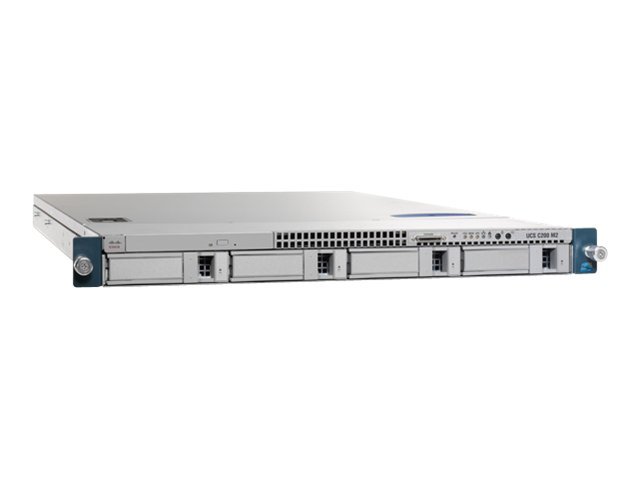

Cisco UC-R200-1120402W
UCS C200 M2 Srvr w/1PSU, DVD w/o CPU, mem, HDD or PCIe card
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
UCS C200 M2 Srvr w/1PSU, DVD w/o CPU, mem, HDD or PCIe card
| Bays: | 4 (total) / 4 (free) x hot-swap 3.5" ¦ 1 (total) / 0 (free) x external |
|---|---|
| CPU: | No CPU |
| CPU Socket: | LGA1366 Socket |
| CPU Upgradability: | Upgradable |
| Compliant Standards: | CISPR 22 Class A, GOST, CISPR 24, EN 61000-3-2, SABS, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, CSA 22.2 No. 60950, CB, AS/NZS 60950-1, CCC, ICES-003 Class A, IRAM, UL 60950-1, EN 60950-1 |
| Controller Interface Type: | SATA 3Gb/s / SAS |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 70.6 cm |
| Device Type: | Power supply |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Features: | Registered |
| Front Accessible Bays Qty: | 1 |
| Graphics Processor: | Matrox MGA G200 |
| Height: | 4.3 cm |
| Hot-Swap Bays Qty: | 4 |
| Humidity Range Operating: | 5 - 93% (non-condensing) |
| Installed Qty: | 1 |
| Interfaces: | 1 x serial ¦ 4 x USB 2.0 (2 front, 2 rear) ¦ 1 x management (NIC) ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x serial - console |
| Manufacturer: | Cisco Meraki |
| Max CPU Qty: | 2 |
| Max Operating Temperature: | 35 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 10 °C |
| Monitor Type: | None. |
| Power Provided: | 650 Watt |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Product Form Factor: | Rack-mountable - 1U |
| RAID Level: | RAID 0, RAID 1 |
| Remote Management Protocol: | IPMI 2.0 |
| Slots: | 2 (total) / 2 (free) x CPU ¦ 12 (total) / 12 (free) x memory ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 - half-length, low-profile ¦ 1 (total) / 1 (free) x PCIe 2.0 x16 - half-length, full-height |
| Technology: | DDR3 SDRAM |
| Type: | Integrated |
| Version: | original |
| Video Interfaces: | VGA |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Width: | 42.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Servers International.pdf |
| Safety instructions: | Safety instructions Servers International.pdf |
UCS C200 M2 Srvr w/1PSU, DVD w/o CPU, mem, HDD or PCIe card
| Bays: | 4 (total) / 4 (free) x hot-swap 3.5" ¦ 1 (total) / 0 (free) x external |
|---|---|
| CPU: | No CPU |
| CPU Socket: | LGA1366 Socket |
| CPU Upgradability: | Upgradable |
| Compliant Standards: | CISPR 22 Class A, GOST, CISPR 24, EN 61000-3-2, SABS, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, CSA 22.2 No. 60950, CB, AS/NZS 60950-1, CCC, ICES-003 Class A, IRAM, UL 60950-1, EN 60950-1 |
| Controller Interface Type: | SATA 3Gb/s / SAS |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 70.6 cm |
| Device Type: | Power supply |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Features: | Registered |
| Front Accessible Bays Qty: | 1 |
| Graphics Processor: | Matrox MGA G200 |
| Height: | 4.3 cm |
| Hot-Swap Bays Qty: | 4 |
| Humidity Range Operating: | 5 - 93% (non-condensing) |
| Installed Qty: | 1 |
| Interfaces: | 1 x serial ¦ 4 x USB 2.0 (2 front, 2 rear) ¦ 1 x management (NIC) ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x serial - console |
| Manufacturer: | Cisco Meraki |
| Max CPU Qty: | 2 |
| Max Operating Temperature: | 35 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 10 °C |
| Monitor Type: | None. |
| Power Provided: | 650 Watt |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Product Form Factor: | Rack-mountable - 1U |
| RAID Level: | RAID 0, RAID 1 |
| Remote Management Protocol: | IPMI 2.0 |
| Slots: | 2 (total) / 2 (free) x CPU ¦ 12 (total) / 12 (free) x memory ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 - half-length, low-profile ¦ 1 (total) / 1 (free) x PCIe 2.0 x16 - half-length, full-height |
| Technology: | DDR3 SDRAM |
| Type: | Integrated |
| Version: | original |
| Video Interfaces: | VGA |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Width: | 42.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
