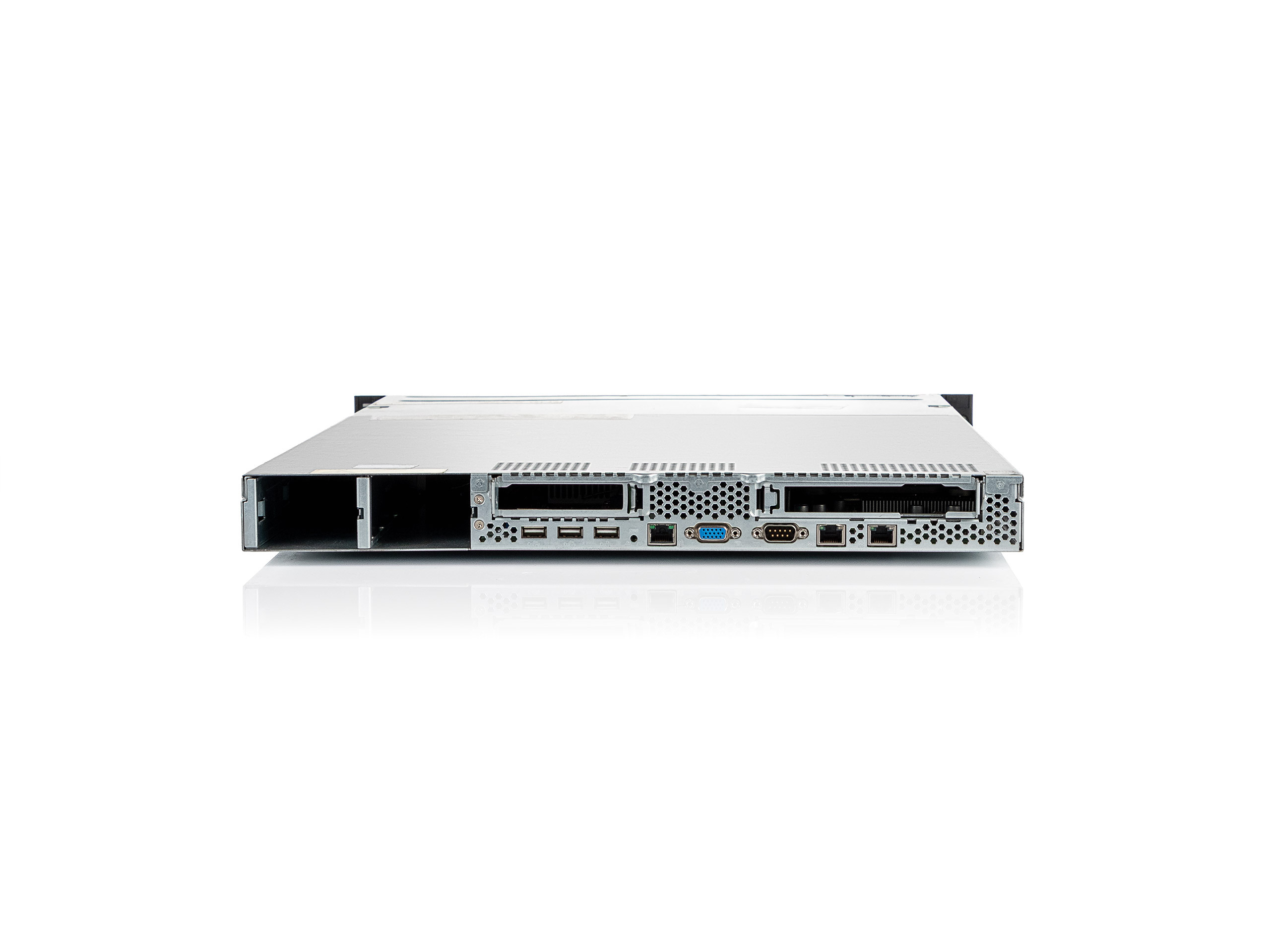

Fujitsu PR200B-D3031
Fujitsu Server Primergy RX200B S6
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Fujitsu Server Primergy RX200B S6
| Bays: | 6 (total) / 4 (free) x hot-swap 2.5" ¦ 1 (total) / 0 (free) x external 5.25" x 1/6H (Slim Line) |
|---|---|
| CPU: | Intel Xeon E5606 |
| CPU Qty: | 2 |
| CPU Socket: | LGA1366 Socket |
| CPU Upgradability: | Upgradable |
| Cache Per Processor: | 8 MB |
| Capacity: | 6 x 146 GB |
| Channel Qty: | 4, 8 |
| Chipset Type: | Intel 5500 |
| Clock Speed: | 2.13 GHz |
| Compliant Standards: | FCC Class A certified, CSA, BSMI CNS 13438 Class A, GS, VCCI Class A ITE, CB, ICES-003 Class A, RoHS, WEEE, cULus |
| Controller Interface Type: | SAS 6Gb/s, SATA 3Gb/s |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 76.5 cm |
| Device Type: | Power supply - hot-plug |
| Effective Memory Speed: | 1066 MHz |
| Ethernet Controller: | Intel 82575EB |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Features: | Registered, hot-swappable, Memory Mirroring, triple channel memory architecture |
| Front Accessible Bays Qty: | 1 |
| Height: | 4.3 cm |
| Hot-Swap Bays Qty: | 6 |
| Humidity Range Operating: | 10 - 85% (non-condensing) |
| Included Accessories: | Rack mounting kit (full extraction), cable arm |
| Installed Qty: | 2, 12 GB (installed) / 192 GB (max) |
| Installed Size: | L3 Cache - 8 MB |
| Interface Type: | SAS 6Gb/s |
| Interfaces: | 6 x USB 2.0 (3 front, 3 rear) ¦ 2 x VGA (1 front, 1 rear) ¦ 1 x serial ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x management (NIC) |
| Manufacturer: | Fujitsu |
| Max CPU Qty: | 2 |
| Max Operating Temperature: | 35 °C |
| Max Supported Qty: | 2 |
| Memory Specification Compliance: | PC3-10600 |
| Min Operating Temperature: | 10 °C |
| Monitor Type: | None. |
| Number of Cores: | Quad-Core |
| Power Provided: | 450 watt |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Pricing Type: | Refurbished |
| Product Form Factor: | Rack-mountable - 1U |
| RAID Level: | RAID 0, RAID 1, RAID 0, RAID 1, RAID 10, RAID 1E |
| Rated Memory Speed: | 1333 MHz |
| Remote Management Controller: | Integrated Remote Management Controller (iRMC S2) |
| Server Scalability: | 2-way |
| Slots: | 1 (total) / 0 (free) x PCIe 2.0 x8 - low-profile (x4 mode) ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 - half-length, low-profile ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 - half-length, full-height |
| Software: | ServerView |
| Sound Emission: | 49 dBA |
| Spindle Speed: | 15000 rpm |
| Storage Controller Name: | LSISAS2008 |
| Technology: | DDR3 SDRAM - Advanced ECC |
| Type: | DVD±RW (±R DL) / DVD-RAM DVD SuperMulti - SATA, Server |
| Version: | original |
| Video Interfaces: | VGA |
| Voltage Required: | (50/60 Hz) |
| Weight: | 17 kg |
| Width: | 48.3 cm |
| GPSR - economic actor: | Fujitsu, Deutschland, Mies-van-der-Rohe-Straße 8, München, 80807, cic@fujitsu.com |
|---|---|
| GPSR - product manufacturer: | Fujitsu, Deutschland, Mies-van-der-Rohe-Straße 8, München, 80807, cic@fujitsu.com |
| GPSR - EU responsible person: | Fujitsu, Deutschland, Mies-van-der-Rohe-Straße 8, München, 80807, cic@fujitsu.com |
| EU Data-Act-Url: | https://www.fujitsu.com/emeia/imagesgig5/Europe%20Data%20Protection%20Position%20Paper%20External.pdf |
| Warnings: | Warnings Servers International.pdf |
| Safety instructions: | Safety instructions Servers International.pdf |
Fujitsu Server Primergy RX200B S6
| Bays: | 6 (total) / 4 (free) x hot-swap 2.5" ¦ 1 (total) / 0 (free) x external 5.25" x 1/6H (Slim Line) |
|---|---|
| CPU: | Intel Xeon E5606 |
| CPU Qty: | 2 |
| CPU Socket: | LGA1366 Socket |
| CPU Upgradability: | Upgradable |
| Cache Per Processor: | 8 MB |
| Capacity: | 6 x 146 GB |
| Channel Qty: | 4, 8 |
| Chipset Type: | Intel 5500 |
| Clock Speed: | 2.13 GHz |
| Compliant Standards: | FCC Class A certified, CSA, BSMI CNS 13438 Class A, GS, VCCI Class A ITE, CB, ICES-003 Class A, RoHS, WEEE, cULus |
| Controller Interface Type: | SAS 6Gb/s, SATA 3Gb/s |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 76.5 cm |
| Device Type: | Power supply - hot-plug |
| Effective Memory Speed: | 1066 MHz |
| Ethernet Controller: | Intel 82575EB |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Features: | Registered, hot-swappable, Memory Mirroring, triple channel memory architecture |
| Front Accessible Bays Qty: | 1 |
| Height: | 4.3 cm |
| Hot-Swap Bays Qty: | 6 |
| Humidity Range Operating: | 10 - 85% (non-condensing) |
| Included Accessories: | Rack mounting kit (full extraction), cable arm |
| Installed Qty: | 2, 12 GB (installed) / 192 GB (max) |
| Installed Size: | L3 Cache - 8 MB |
| Interface Type: | SAS 6Gb/s |
| Interfaces: | 6 x USB 2.0 (3 front, 3 rear) ¦ 2 x VGA (1 front, 1 rear) ¦ 1 x serial ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x management (NIC) |
| Manufacturer: | Fujitsu |
| Max CPU Qty: | 2 |
| Max Operating Temperature: | 35 °C |
| Max Supported Qty: | 2 |
| Memory Specification Compliance: | PC3-10600 |
| Min Operating Temperature: | 10 °C |
| Monitor Type: | None. |
| Number of Cores: | Quad-Core |
| Power Provided: | 450 watt |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Pricing Type: | Refurbished |
| Product Form Factor: | Rack-mountable - 1U |
| RAID Level: | RAID 0, RAID 1, RAID 0, RAID 1, RAID 10, RAID 1E |
| Rated Memory Speed: | 1333 MHz |
| Remote Management Controller: | Integrated Remote Management Controller (iRMC S2) |
| Server Scalability: | 2-way |
| Slots: | 1 (total) / 0 (free) x PCIe 2.0 x8 - low-profile (x4 mode) ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 - half-length, low-profile ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 - half-length, full-height |
| Software: | ServerView |
| Sound Emission: | 49 dBA |
| Spindle Speed: | 15000 rpm |
| Storage Controller Name: | LSISAS2008 |
| Technology: | DDR3 SDRAM - Advanced ECC |
| Type: | DVD±RW (±R DL) / DVD-RAM DVD SuperMulti - SATA, Server |
| Version: | original |
| Video Interfaces: | VGA |
| Voltage Required: | (50/60 Hz) |
| Weight: | 17 kg |
| Width: | 48.3 cm |
| GPSR - economic actor: | Fujitsu, Deutschland, Mies-van-der-Rohe-Straße 8, München, 80807, cic@fujitsu.com |
|---|---|
| GPSR - product manufacturer: | Fujitsu, Deutschland, Mies-van-der-Rohe-Straße 8, München, 80807, cic@fujitsu.com |
| GPSR - EU responsible person: | Fujitsu, Deutschland, Mies-van-der-Rohe-Straße 8, München, 80807, cic@fujitsu.com |
| EU Data-Act-Url: | https://www.fujitsu.com/emeia/imagesgig5/Europe%20Data%20Protection%20Position%20Paper%20External.pdf |
