HPE 669257-B21

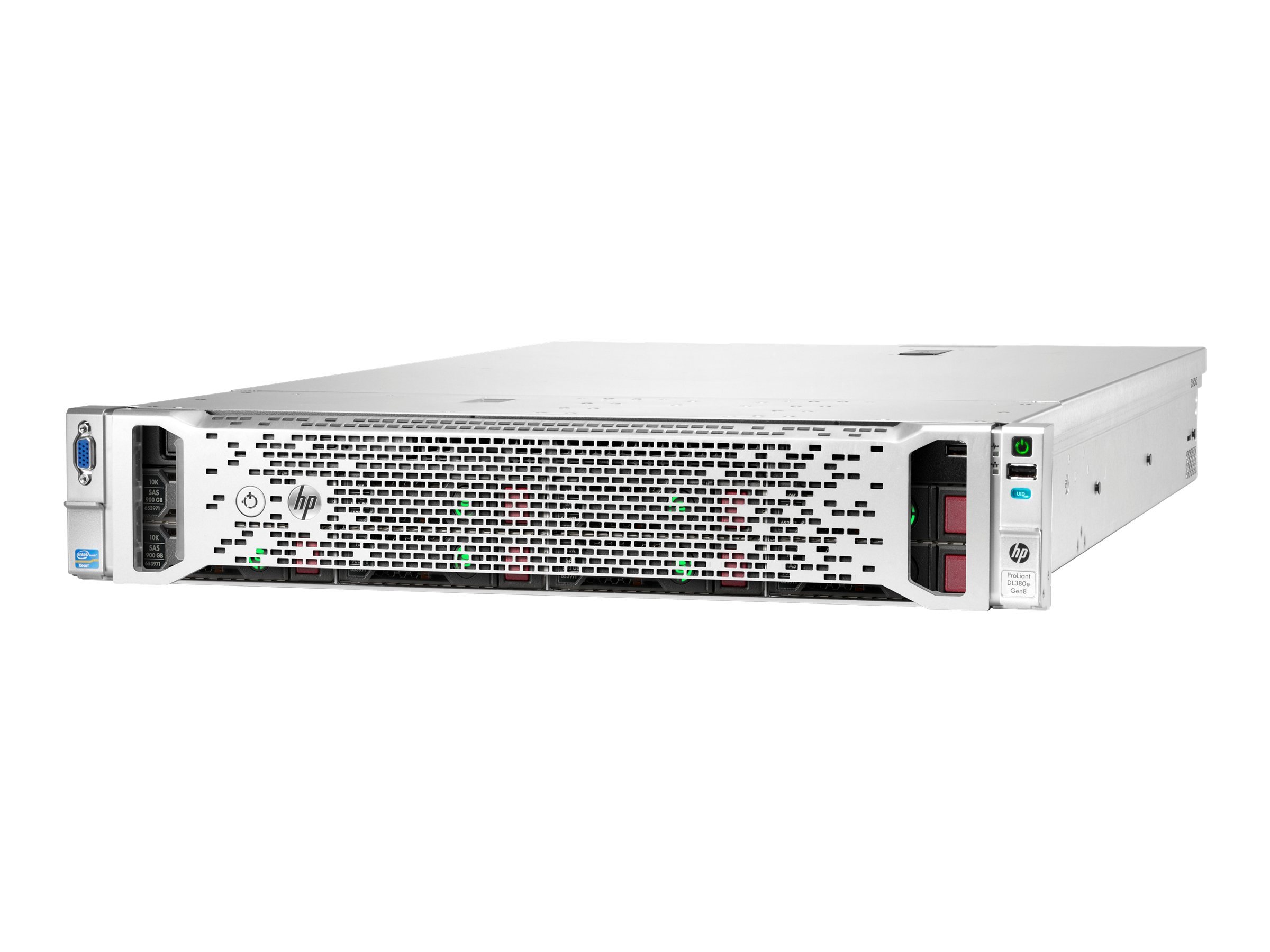

HP ProLiant DL380e Gen8 12 LFF Configure-to-order Server
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
HP ProLiant DL380e Gen8 12 LFF Configure-to-order Server
| Bays: | 12 (total) / 12 (free) x hot-swap 3.5" LFF |
|---|---|
| CPU: | No CPU |
| CPU Upgradability: | Upgradable |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az |
| Compliant Standards: | ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, BSMI CNS 13438 |
| Controller Interface Type: | SATA 3Gb/s |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 74.94 cm |
| Device Type: | Power supply - hot-plug |
| Ethernet Controller: | HP 366i |
| Ethernet Ports: | 4 x Gigabit Ethernet |
| Features: | Administrator password, power-on password, serial port I/O control |
| Form Factor: | DIMM 240-pin |
| Graphics Processor: | Matrox G200 |
| Height: | 8.75 cm |
| Hot-Swap Bays Qty: | 12 |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Installed Qty: | |
| Interface (Bus) Type: | PCI Express 2.0 x2 |
| Interfaces: | 1 x serial ¦ 2 x VGA (1 front, 1 rear) ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO ¦ 6 x USB 2.0 (2 front, 4 rear, 1 internal) |
| Manufacturer: | HPE Aruba |
| Max CPU Qty: | 2 |
| Max Operating Temperature: | 35 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 10 °C |
| Monitor Type: | None. |
| OS Certified: | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Pricing Type: | CTO |
| Product Form Factor: | Rack-mountable - 2U |
| RAID Level: | RAID 0, RAID 1, RAID 10 |
| RAM Supported: | PC3-12800 - 192 GB registered - Advanced ECC ¦ PC3-10600 - 384 GB Advanced ECC ¦ PC3-10600 - 96 GB unbuffered - Advanced ECC |
| Recommended Use: | Small business, corporate business |
| Remote Management Controller: | Integrated Lights-Out 4 |
| Server Scalability: | 2-way |
| Slots: | 12 (total) / 12 (free) x DIMM 240-pin ¦ 2 (total) / 2 (free) x CPU ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - full-length, full-height (x4 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - |
| Storage Controller Name: | HP Dynamic Smart Array B120i |
| Technology: | DDR3 SDRAM |
| Type: | Integrated |
| Version: | original |
| Video Interfaces: | VGA |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 14 kg |
| Width: | 44.55 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
|---|---|
| : | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| Warnings: | Warnings Servers International.pdf |
| Safety instructions: | Safety instructions Servers International.pdf |
HP ProLiant DL380e Gen8 12 LFF Configure-to-order Server
| Bays: | 12 (total) / 12 (free) x hot-swap 3.5" LFF |
|---|---|
| CPU: | No CPU |
| CPU Upgradability: | Upgradable |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az |
| Compliant Standards: | ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, BSMI CNS 13438 |
| Controller Interface Type: | SATA 3Gb/s |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 74.94 cm |
| Device Type: | Power supply - hot-plug |
| Ethernet Controller: | HP 366i |
| Ethernet Ports: | 4 x Gigabit Ethernet |
| Features: | Administrator password, power-on password, serial port I/O control |
| Form Factor: | DIMM 240-pin |
| Graphics Processor: | Matrox G200 |
| Height: | 8.75 cm |
| Hot-Swap Bays Qty: | 12 |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Installed Qty: | |
| Interface (Bus) Type: | PCI Express 2.0 x2 |
| Interfaces: | 1 x serial ¦ 2 x VGA (1 front, 1 rear) ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO ¦ 6 x USB 2.0 (2 front, 4 rear, 1 internal) |
| Manufacturer: | HPE Aruba |
| Max CPU Qty: | 2 |
| Max Operating Temperature: | 35 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 10 °C |
| Monitor Type: | None. |
| OS Certified: | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Pricing Type: | CTO |
| Product Form Factor: | Rack-mountable - 2U |
| RAID Level: | RAID 0, RAID 1, RAID 10 |
| RAM Supported: | PC3-12800 - 192 GB registered - Advanced ECC ¦ PC3-10600 - 384 GB Advanced ECC ¦ PC3-10600 - 96 GB unbuffered - Advanced ECC |
| Recommended Use: | Small business, corporate business |
| Remote Management Controller: | Integrated Lights-Out 4 |
| Server Scalability: | 2-way |
| Slots: | 12 (total) / 12 (free) x DIMM 240-pin ¦ 2 (total) / 2 (free) x CPU ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - full-length, full-height (x4 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - |
| Storage Controller Name: | HP Dynamic Smart Array B120i |
| Technology: | DDR3 SDRAM |
| Type: | Integrated |
| Version: | original |
| Video Interfaces: | VGA |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 14 kg |
| Width: | 44.55 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
|---|---|
| : | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
