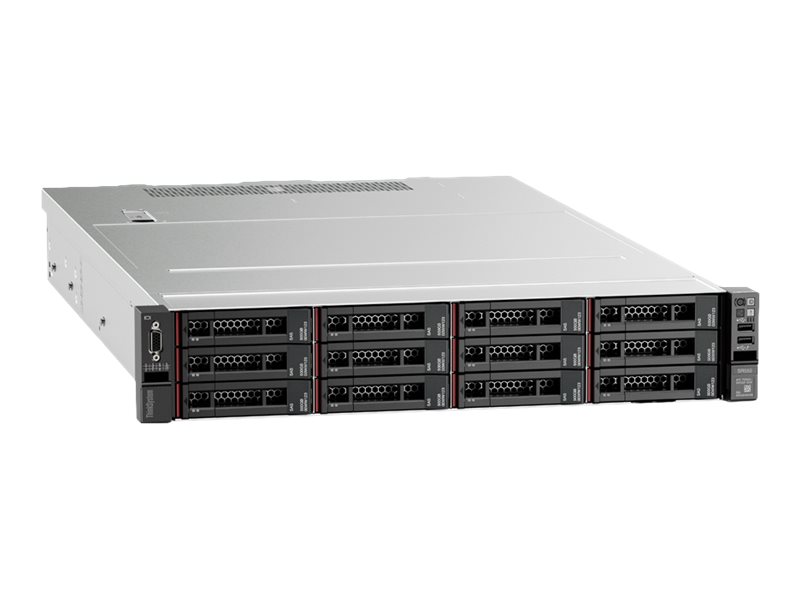

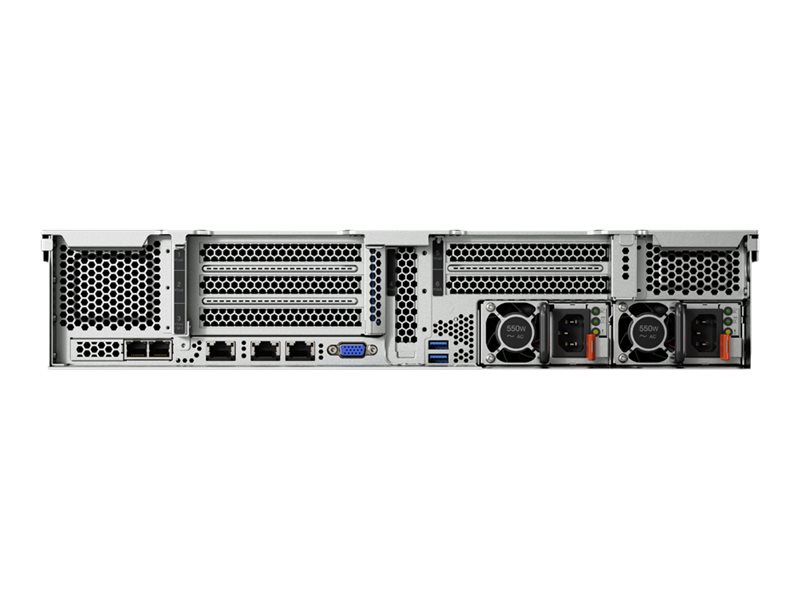

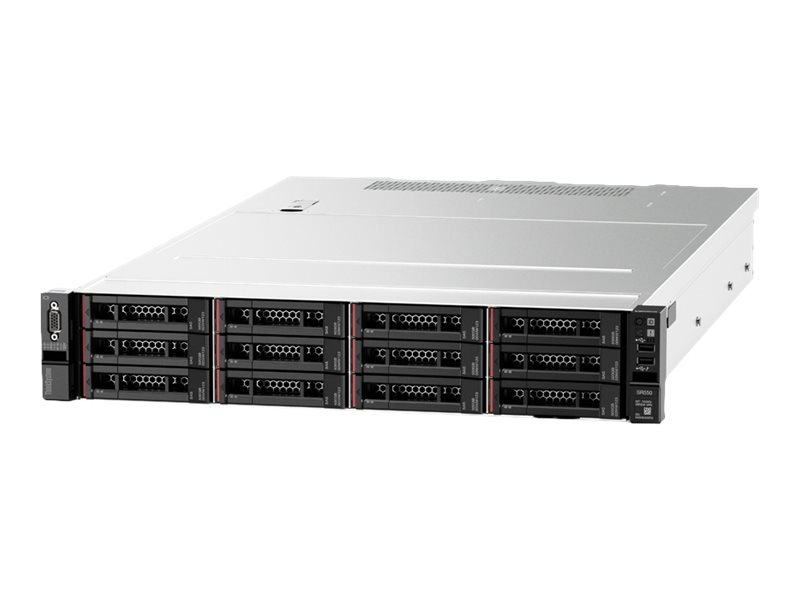

Lenovo 7X04A00NEA
Lenovo SR550 - 1,8 GHz - 4108 - 16 GB - DDR4-SDRAM - 750 W - Rack (2U)
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Lenovo SR550 - 1,8 GHz - 4108 - 16 GB - DDR4-SDRAM - 750 W - Rack (2U)
| 80 PLUS Certification: | 80 PLUS Platinum |
|---|---|
| Bays: | 8 (total) / 8 (free) x hot-swap 3.5" |
| Buffer Size: | 2 GB |
| CPU: | Intel Xeon Silver 4108 |
| CPU Qty: | 1 |
| Cables Included: | Power cable (C13-C14) |
| Cache Per Processor: | 11 MB |
| Channel Qty: | 8 |
| Chipset Type: | Intel C622 |
| Clock Speed: | 1.8 GHz |
| Compliant Standards: | TUV GS, CISPR 22 Class A, CB, ICES-003 Class A, RoHS, FCC Part 15 A, GB 17625.1, GB 9254 Class A, VCCI Class A, KN24, KN22 Class A, NMB-3 Class A, AS/NZS CISPR 22, GB 4943.1, GOST-R 51318.24, GOST-R 51317.3.2, GOST-R 51317.3.3, IEC60950-1, NOM-019, GOST-R |
| Configuration Features: | 1 x 16 GB |
| Controller Interface Type: | SATA 6Gb/s / SAS 12Gb/s |
| Data Link Protocol: | Gigabit Ethernet |
| Depth: | 76.37 cm |
| Device Type: | Power supply - hot-plug |
| ENERGY STAR Certified: | Yes |
| ENERGY STAR Version: | 2.1 |
| Effective Memory Speed: | 2400 MHz |
| Embedded Security: | Trusted Platform Module (TPM 1.2) Security Chip |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Features: | Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, Patrol Scrubbing, Demand Scrubbing |
| Form Factor: | DIMM 288-pin |
| Graphics Processor: | Matrox G200 |
| Height: | 8.65 cm |
| Hot-Swap Bays Qty: | 8 |
| Included Accessories: | Tool-less rail kit |
| Installed Qty: | 1, 16 GB / 384 GB (max) |
| Installed Size: | 11 MB |
| Interfaces: | 3 x USB 3.0 (1 front, 2 rear) ¦ 1 x USB 2.0 (1 in front) ¦ 2 x VGA (1 front, 1 rear) ¦ 1 x management - RJ-45 ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 |
| Localisation: | Region: EMEA |
| Manufacturer: | Lenovo |
| Manufacturer Selling Program: | TopSeller |
| Max CPU Qty: | 2 |
| Max Supported Qty: | 2 |
| Max Turbo Speed: | 3 GHz |
| Monitor Type: | None. |
| Number of Cores: | 8-core |
| OS Provided: | No operating system |
| Power Provided: | 750 Watt |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Product Form Factor: | Rack-mountable - 2U |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| RAM Supported: | 384 GB registered - ECC ¦ 768 GB Load-Reduced - ECC |
| Rated Memory Speed: | 2666 MHz |
| Remote Management Controller: | XClarity Controller (XCC) Advanced |
| Server Scalability: | 2-way |
| Slots: | 12 (Total) / 11 (empty), 12 (total) / 11 (free) x DIMM 288-pin ¦ 2 (total) / 1 (free) x CPU ¦ 1 (total) / 1 (free) x LAN-on-Motherboard (LOM) ¦ 1 (total) / 0 (free) x PCIe 3.0 x8 - low-profile |
| Storage Controller Name: | ThinkSystem RAID 930-8i |
| Technology: | DDR4 SDRAM - ECC |
| Type: | No optical drive, Server |
| Version: | original |
| Video Interfaces: | VGA |
| Video Memory: | 16 MB |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 19 kg |
| Width: | 48.2 cm |
| GPSR - economic actor: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
|---|---|
| GPSR - product manufacturer: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
| GPSR - EU responsible person: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
| EU Data-Act-Url: | https://www.lenovo.com/us/en/privacy/?orgRef=https%253A%252F%252Fnews.lenovo.com%252F |
| Warnings: | Warnings Servers International.pdf |
| Safety instructions: | Safety instructions Servers International.pdf |
