Aruba P11053-421

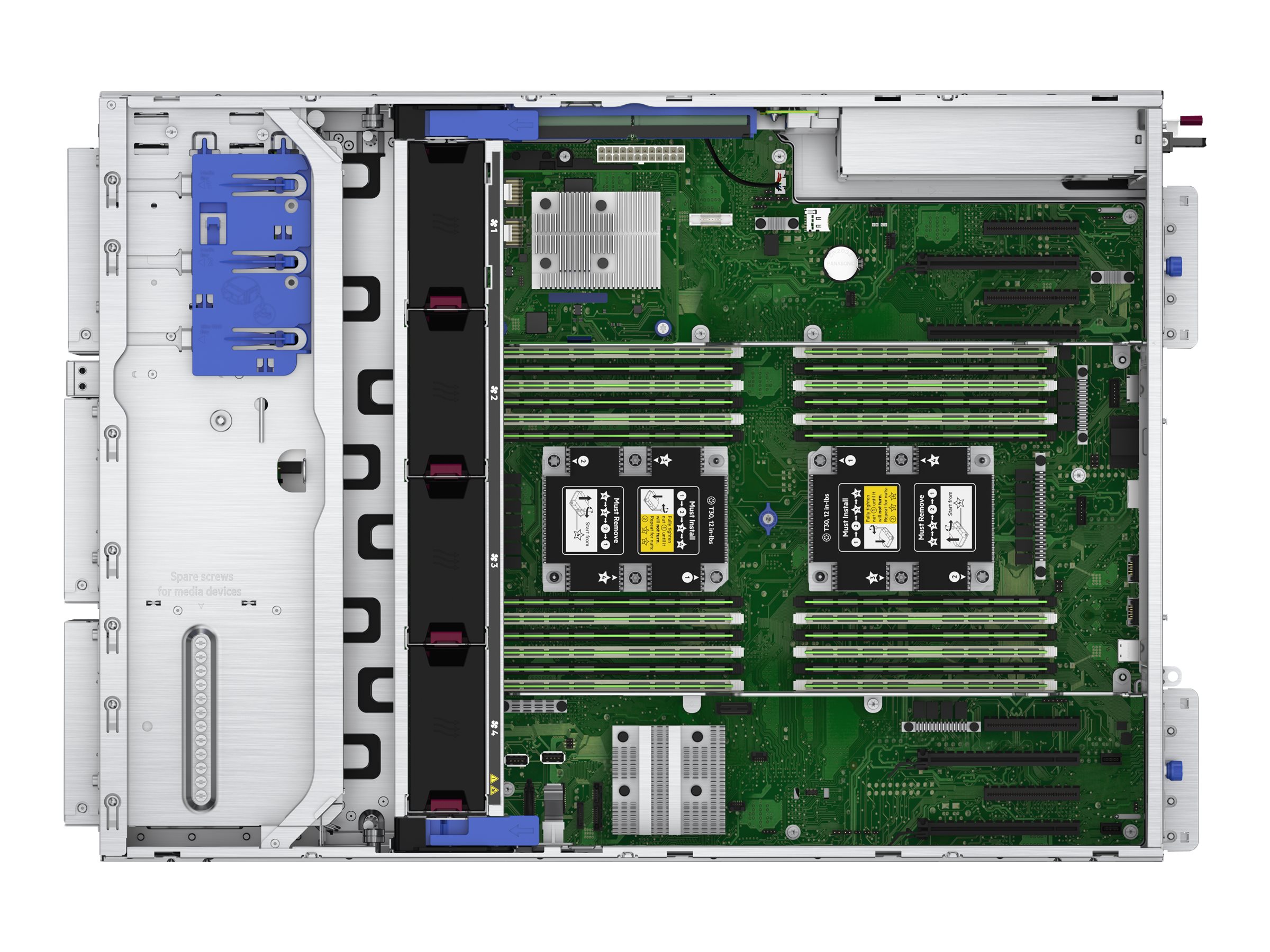

HPE ProLiant ML350 Gen10 5218 1P 32GB-R P408i-a 8SFF 2x800W RPS Server
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
HPE ProLiant ML350 Gen10 5218 1P 32GB-R P408i-a 8SFF 2x800W RPS Server
| 80 PLUS Certification: | 80 PLUS Platinum |
|---|---|
| Bays: | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Buffer Size: | 2 GB |
| CPU: | Intel Xeon Gold 5218 |
| CPU Qty: | 1 |
| CPU Socket: | FCLGA3647 Socket |
| CPU Upgradability: | Upgradable |
| Cache Per Processor: | 22 MB |
| Channel Qty: | 8 |
| Chipset Type: | Intel C622 |
| Clock Speed: | 2.3 GHz |
| Compliant Standards: | ASHRAE Class A4, ASHRAE Class A3, ACPI 6.1 |
| Configuration Features: | 1 x 32 GB |
| Controller Interface Type: | SATA 6Gb/s / SAS 12Gb/s |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 64.8 cm |
| Device Type: | Power supply - hot-plug |
| ENERGY STAR Certified: | Yes |
| ENERGY STAR Version: | 2.1 |
| Effective Memory Speed: | 2666 MHz |
| Ethernet Controller: | HPE 369i |
| Ethernet Ports: | 4 x Gigabit Ethernet |
| Features: | Wake on LAN (WoL), PXE support |
| Form Factor: | DIMM 288-pin |
| Height: | 46.25 cm |
| Hot-Swap Bays Qty: | 8 |
| Humidity Range Operating: | 8 - 90% (non-condensing) |
| Included Accessories: | 6 fan modules |
| Installed Qty: | 2 |
| Installed Size: | L3 Cache - 22 MB |
| Interfaces: | 1 x VGA ¦ 1 x serial ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO ¦ 5 x USB 3.0 (2 front, 2 rear, 1 internal) ¦ 1 x USB 2.0 (1 internal) ¦ 1 x HPE iLO - Type A (1 in front) |
| Localisation: | Region: Europe |
| Manufacturer: | HPE Aruba |
| Max CPU Qty: | 2 |
| Max Operating Temperature: | 35 °C |
| Max Supported Qty: | 2 |
| Max Turbo Speed: | 3.9 GHz |
| Min Operating Temperature: | 10 °C |
| Monitor Type: | None. |
| Number of Cores: | 16-core |
| Power Provided: | 800 Watt |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Processor Main Features: | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| Product Form Factor: | Tower - 4U |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
| RAM Supported: | 3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC |
| Rated Memory Speed: | 2933 MHz |
| Remote Management Controller: | Integrated Lights-Out Advanced Management (ASIC) |
| Remote Management Protocol: | SNMP 3, IPMI 2.0, SMASH CLP |
| Security Slot Type: | Kensington security slot |
| Server Scalability: | 2-way |
| Slots: | 2 (total) / 2 (free) x PCIe 3.0 x8 - full-length, full-height (x4 mode) ¦ 4 (total) / 4 (free) x PCIe 3.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal) ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - full-length, full-height |
| Software: | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
| Storage Controller Name: | HPE Smart Array P408i-a |
| Technology: | DDR4 SDRAM - Advanced ECC |
| Theft/Intrusion Protection: | Security lock slot (cable lock sold separately), padlock loop |
| Type: | No optical drive |
| Version: | original |
| Video Interfaces: | VGA |
| Video Memory: | 16 MB |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 21 kg |
| Width: | 17.4 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
|---|---|
| GPSR - product manufacturer: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| Warnings: | Warnings Servers International.pdf |
| Safety instructions: | Safety instructions Servers International.pdf |
