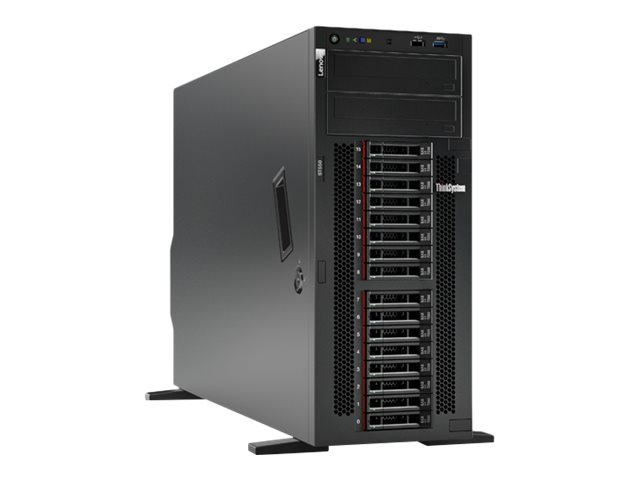

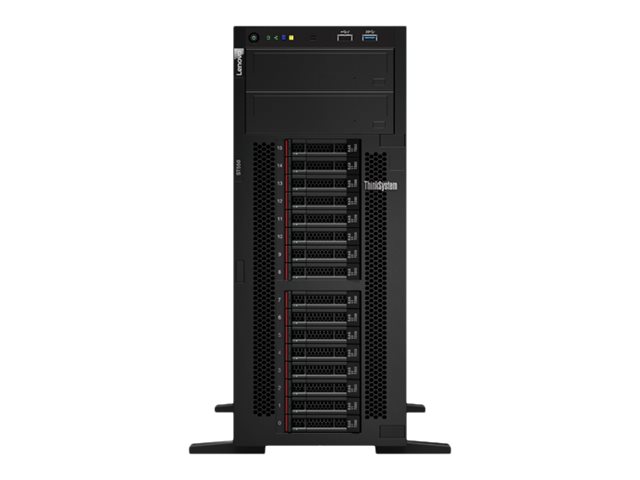

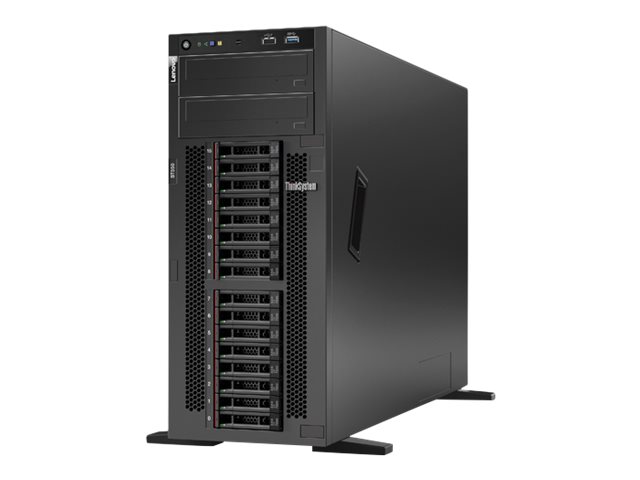

Lenovo 7X10A0CVEA
ST550 Xeon Silver 4210R (10C 2.4GHz 13.75MB Cache/100W) 16GB 2933MHz (1x16GB, 2Rx8 RDIMM), O/B, 930-8i, 1x550W, XCC Standard ,No DVD
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
ST550 Xeon Silver 4210R (10C 2.4GHz 13.75MB Cache/100W) 16GB 2933MHz (1x16GB, 2Rx8 RDIMM), O/B, 930-8i, 1x550W, XCC Standard ,No DVD
| 80 PLUS Certification: | 80 PLUS Platinum |
|---|---|
| Bays: | 8 (total) / 8 (free) x hot-swap 3.5" |
| Buffer Size: | 2 GB |
| CPU: | Intel Xeon Silver 4210R |
| CPU Qty: | 1 |
| Cables Included: | Power cable |
| Cache Per Processor: | 13.75 MB |
| Channel Qty: | 8 |
| Clock Speed: | 2.4 GHz |
| Compliant Standards: | TUV GS, BSMI, EN 61000-3-2, EN 61000-3-3, EN55024, CB, AS/NZS 60950-1, CCC, RoHS, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, GB 17625.1, GB 9254 Class A, VCCI Class A, GB 4943.1, EK1-ITB2000, Energy-Related Products (ErP) Lot 3, CNS 13 |
| Configuration Features: | 1 x 16 GB |
| Controller Interface Type: | SATA 6Gb/s / SAS 12Gb/s |
| Data Link Protocol: | Gigabit Ethernet |
| Depth: | 66.64 cm |
| Device Type: | Power supply - hot-plug |
| ENERGY STAR Certified: | Yes |
| ENERGY STAR Version: | 2.1 |
| Effective Memory Speed: | 2400 MHz |
| Embedded Security: | Trusted Platform Module (TPM 1.2 and TPM 2.0) |
| Ethernet Controller: | Intel X722 |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Features: | Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, slots 7 - 12 are available in two-processor configuration only, Wake on LAN (WoL) |
| Form Factor: | DIMM 288-pin |
| Graphics Processor: | Matrox G200 |
| Height: | 42.55 cm |
| Hot-Swap Bays Qty: | 8 |
| Installed Qty: | 1, 16 GB / 768 GB (max) |
| Installed Size: | L3 Cache - 13.75 MB |
| Interfaces: | 4 x USB 3.0 (1 front, 2 rear, 1 internal) ¦ 5 x USB 2.0 (1 front, 4 rear) ¦ 1 x VGA ¦ 1 x management - RJ-45 ¦ 2 x LAN (Gigabit Ethernet) |
| Localisation: | Region: EMEA |
| Manufacturer: | Lenovo |
| Max CPU Qty: | 2 |
| Max Supported Qty: | 2 |
| Max Turbo Speed: | 3.2 GHz |
| Monitor Type: | None. |
| Number of Cores: | 10-core |
| OS Provided: | No operating system |
| Power Provided: | 550 Watt |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Processor Main Features: | Hyper-Threading Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2 |
| Product Form Factor: | Tower - 4U |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Rated Memory Speed: | 2933 MHz |
| Remote Management Controller: | XClarity Controller (XCC) Standard |
| Remote Management Protocol: | SNMP 3, CIM, IPMI 2.0 |
| Server Scalability: | 2-way |
| Slots: | 1 PCIe 3.0 x8 - half-length, full-height ¦ 1 PCIe 3.0 x16 - half-length, full-height ¦ 1 PCIe 3.0 x16 - full-length, full-height, double-width ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height (x8 mode, 2 processors must be installed) ¦ 1 (, 12 (Total) / 11 (empty) |
| Storage Controller Name: | ThinkSystem RAID 930-8i |
| Technology: | DDR4 SDRAM - ECC Chipkill |
| Theft/Intrusion Protection: | Security lock slot (cable lock sold separately), chassis intrusion switch |
| Type: | No optical drive, Server |
| Version: | original |
| Video Interfaces: | VGA |
| Video Memory: | 16 MB |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 36.9 kg |
| Width: | 17.58 cm |
| GPSR - economic actor: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
|---|---|
| GPSR - product manufacturer: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
| GPSR - EU responsible person: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
| EU Data-Act-Url: | https://www.lenovo.com/us/en/privacy/?orgRef=https%253A%252F%252Fnews.lenovo.com%252F |
| Warnings: | Warnings Servers International.pdf |
| Safety instructions: | Safety instructions Servers International.pdf |
ST550 Xeon Silver 4210R (10C 2.4GHz 13.75MB Cache/100W) 16GB 2933MHz (1x16GB, 2Rx8 RDIMM), O/B, 930-8i, 1x550W, XCC Standard ,No DVD
| 80 PLUS Certification: | 80 PLUS Platinum |
|---|---|
| Bays: | 8 (total) / 8 (free) x hot-swap 3.5" |
| Buffer Size: | 2 GB |
| CPU: | Intel Xeon Silver 4210R |
| CPU Qty: | 1 |
| Cables Included: | Power cable |
| Cache Per Processor: | 13.75 MB |
| Channel Qty: | 8 |
| Clock Speed: | 2.4 GHz |
| Compliant Standards: | TUV GS, BSMI, EN 61000-3-2, EN 61000-3-3, EN55024, CB, AS/NZS 60950-1, CCC, RoHS, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, GB 17625.1, GB 9254 Class A, VCCI Class A, GB 4943.1, EK1-ITB2000, Energy-Related Products (ErP) Lot 3, CNS 13 |
| Configuration Features: | 1 x 16 GB |
| Controller Interface Type: | SATA 6Gb/s / SAS 12Gb/s |
| Data Link Protocol: | Gigabit Ethernet |
| Depth: | 66.64 cm |
| Device Type: | Power supply - hot-plug |
| ENERGY STAR Certified: | Yes |
| ENERGY STAR Version: | 2.1 |
| Effective Memory Speed: | 2400 MHz |
| Embedded Security: | Trusted Platform Module (TPM 1.2 and TPM 2.0) |
| Ethernet Controller: | Intel X722 |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Features: | Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, slots 7 - 12 are available in two-processor configuration only, Wake on LAN (WoL) |
| Form Factor: | DIMM 288-pin |
| Graphics Processor: | Matrox G200 |
| Height: | 42.55 cm |
| Hot-Swap Bays Qty: | 8 |
| Installed Qty: | 1, 16 GB / 768 GB (max) |
| Installed Size: | L3 Cache - 13.75 MB |
| Interfaces: | 4 x USB 3.0 (1 front, 2 rear, 1 internal) ¦ 5 x USB 2.0 (1 front, 4 rear) ¦ 1 x VGA ¦ 1 x management - RJ-45 ¦ 2 x LAN (Gigabit Ethernet) |
| Localisation: | Region: EMEA |
| Manufacturer: | Lenovo |
| Max CPU Qty: | 2 |
| Max Supported Qty: | 2 |
| Max Turbo Speed: | 3.2 GHz |
| Monitor Type: | None. |
| Number of Cores: | 10-core |
| OS Provided: | No operating system |
| Power Provided: | 550 Watt |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Processor Main Features: | Hyper-Threading Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2 |
| Product Form Factor: | Tower - 4U |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Rated Memory Speed: | 2933 MHz |
| Remote Management Controller: | XClarity Controller (XCC) Standard |
| Remote Management Protocol: | SNMP 3, CIM, IPMI 2.0 |
| Server Scalability: | 2-way |
| Slots: | 1 PCIe 3.0 x8 - half-length, full-height ¦ 1 PCIe 3.0 x16 - half-length, full-height ¦ 1 PCIe 3.0 x16 - full-length, full-height, double-width ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height (x8 mode, 2 processors must be installed) ¦ 1 (, 12 (Total) / 11 (empty) |
| Storage Controller Name: | ThinkSystem RAID 930-8i |
| Technology: | DDR4 SDRAM - ECC Chipkill |
| Theft/Intrusion Protection: | Security lock slot (cable lock sold separately), chassis intrusion switch |
| Type: | No optical drive, Server |
| Version: | original |
| Video Interfaces: | VGA |
| Video Memory: | 16 MB |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 36.9 kg |
| Width: | 17.58 cm |
| GPSR - economic actor: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
|---|---|
| GPSR - product manufacturer: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
| GPSR - EU responsible person: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
| EU Data-Act-Url: | https://www.lenovo.com/us/en/privacy/?orgRef=https%253A%252F%252Fnews.lenovo.com%252F |
