HPE Q1J31B
HPE MSA 2052 SAS Dual Controller SFF Storage
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.

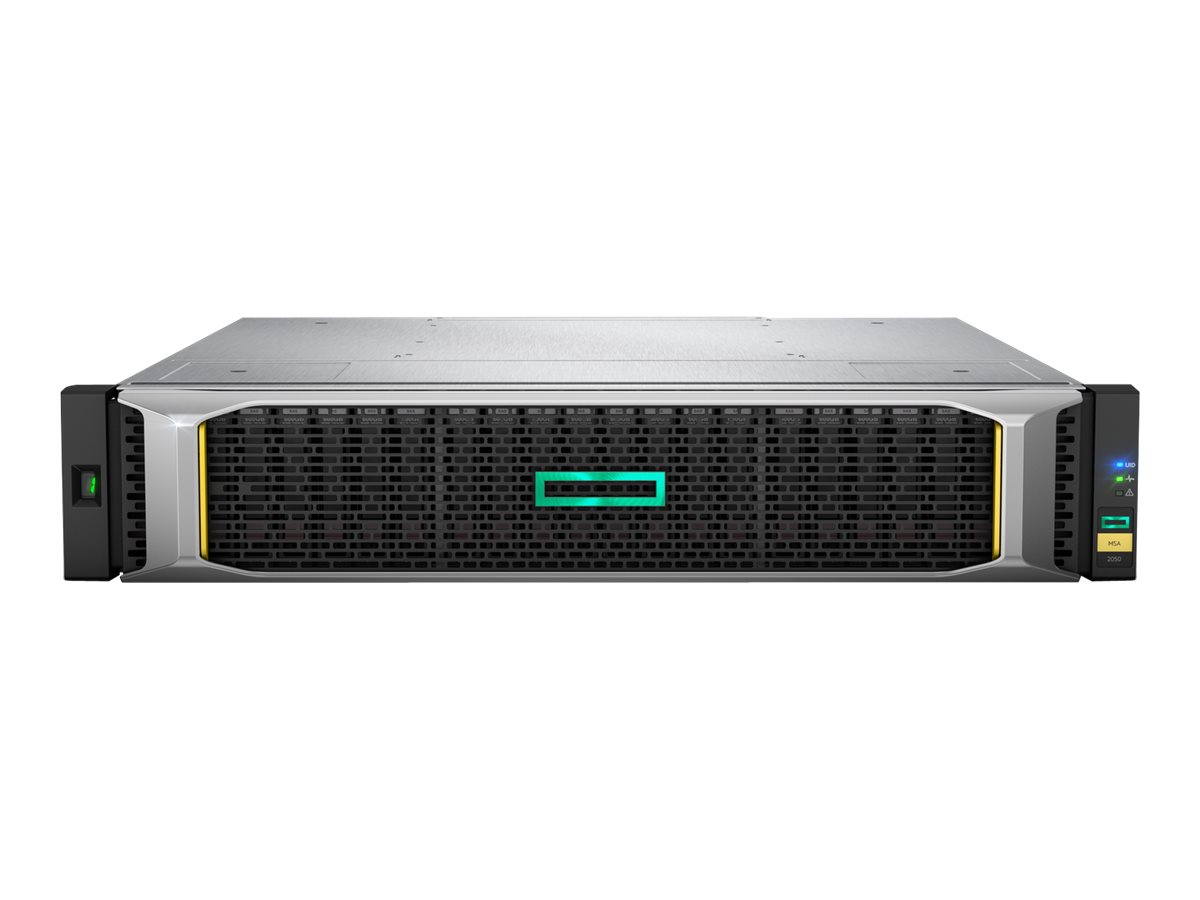

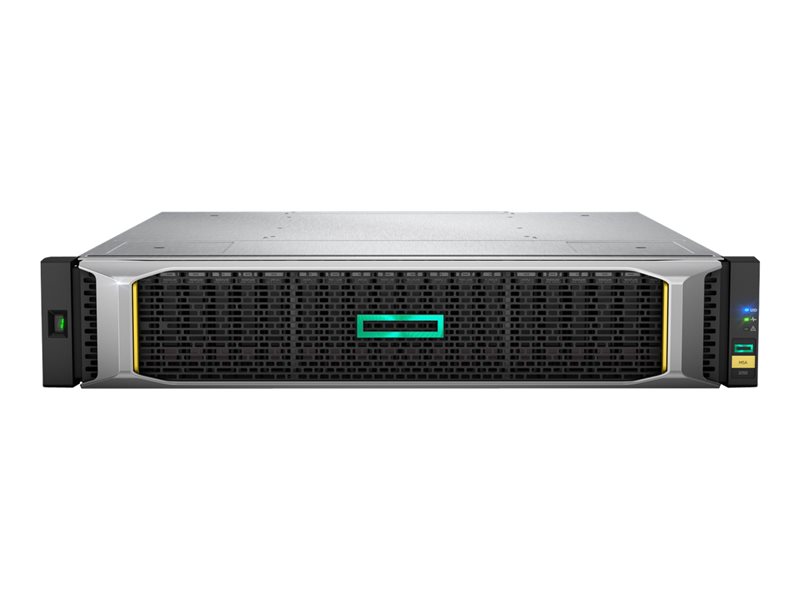

HPE MSA 2052 SAS Dual Controller SFF Storage
| CPU: | No CPU |
|---|---|
| Cache / Buffer Size (Max): | 8 GB |
| Capacity: | 2 x 800 GB |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN55022, GS, EN 61000-3-3, EN55024, CCC, FCC Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, KN24, KN22 Class A, CNS 13438 Class A, ICES-003:2004 Class A |
| Data Transfer Rate: | 1.2 GBps |
| Depth: | 49.5 cm |
| Device Type: | Solid state / hard drive array |
| ENERGY STAR Certified: | Yes |
| Enclosure Type: | Rack-mountable - 2U |
| Expansion Bays: | 24 (total) / 22 (free) - 2.5" SFF |
| Features: | Mixed-Use |
| Features: | Systems Insight Manager (SIM) |
| Height: | 8.9 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Installed Devices / Modules Qty: | 2 |
| Installed Qty: | 2 |
| Interface Type: | SAS 12Gb/s |
| Interfaces: | 8 x SAS 12Gb/s - Mini SAS HD (SFF-8644) ¦ 2 x mini-USB 2.0 (management) ¦ 2 x Ethernet 1000Base-T (management) - RJ-45 ¦ 2 x SAS |
| Manufacturer: | HPE Aruba |
| Max Operating Temperature: | 40 °C |
| Max Supported Capacity: | 614.4 TB |
| Max Supported Qty: | 2 |
| Maximum LUNs: | 512 |
| Min Operating Temperature: | 5 °C |
| OS Required: | HP-UX, SuSe Linux, Apple MacOS X, Microsoft Windows, Red Hat Enterprise Linux, HP OpenVMS, Microsoft Windows Server 2012, VMware ESXi 5.x, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012 R2 with Hyper-V, VMware ESXi 6.x |
| Power Consumption Operational: | 374 Watt |
| Power Device: | 2 x internal power supply - hot-plug |
| Power Redundancy: | Yes |
| RAID Level: | RAID 1, RAID 5, RAID 6, RAID 10 |
| Software Included: | HPE Advanced Data Services Suite, HPE 3PAR Virtual Copy, HPE MSA Remote Snap Software |
| Sound Emission: | 55 dBA |
| Supported Devices / Modules Qty: | 24 |
| Supported Drives: | SAS-3 |
| Total Array Capacity: | 1.6 TB |
| Type: | RAID (iSCSI), SSD |
| Version: | original |
| Voltage Required: | AC 120/230 V - 50/60 Hz |
| Weight: | 17.6 kg |
| Width: | 44.7 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
|---|---|
| : | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| Warnings: | Warnings Storage Accessoires International.pdf |
| Safety instructions: | Safety instructions Storage Accessoires International.pdf |
HPE MSA 2052 SAS Dual Controller SFF Storage
| CPU: | No CPU |
|---|---|
| Cache / Buffer Size (Max): | 8 GB |
| Capacity: | 2 x 800 GB |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN55022, GS, EN 61000-3-3, EN55024, CCC, FCC Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, KN24, KN22 Class A, CNS 13438 Class A, ICES-003:2004 Class A |
| Data Transfer Rate: | 1.2 GBps |
| Depth: | 49.5 cm |
| Device Type: | Solid state / hard drive array |
| ENERGY STAR Certified: | Yes |
| Enclosure Type: | Rack-mountable - 2U |
| Expansion Bays: | 24 (total) / 22 (free) - 2.5" SFF |
| Features: | Mixed-Use |
| Features: | Systems Insight Manager (SIM) |
| Height: | 8.9 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Installed Devices / Modules Qty: | 2 |
| Installed Qty: | 2 |
| Interface Type: | SAS 12Gb/s |
| Interfaces: | 8 x SAS 12Gb/s - Mini SAS HD (SFF-8644) ¦ 2 x mini-USB 2.0 (management) ¦ 2 x Ethernet 1000Base-T (management) - RJ-45 ¦ 2 x SAS |
| Manufacturer: | HPE Aruba |
| Max Operating Temperature: | 40 °C |
| Max Supported Capacity: | 614.4 TB |
| Max Supported Qty: | 2 |
| Maximum LUNs: | 512 |
| Min Operating Temperature: | 5 °C |
| OS Required: | HP-UX, SuSe Linux, Apple MacOS X, Microsoft Windows, Red Hat Enterprise Linux, HP OpenVMS, Microsoft Windows Server 2012, VMware ESXi 5.x, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012 R2 with Hyper-V, VMware ESXi 6.x |
| Power Consumption Operational: | 374 Watt |
| Power Device: | 2 x internal power supply - hot-plug |
| Power Redundancy: | Yes |
| RAID Level: | RAID 1, RAID 5, RAID 6, RAID 10 |
| Software Included: | HPE Advanced Data Services Suite, HPE 3PAR Virtual Copy, HPE MSA Remote Snap Software |
| Sound Emission: | 55 dBA |
| Supported Devices / Modules Qty: | 24 |
| Supported Drives: | SAS-3 |
| Total Array Capacity: | 1.6 TB |
| Type: | RAID (iSCSI), SSD |
| Version: | original |
| Voltage Required: | AC 120/230 V - 50/60 Hz |
| Weight: | 17.6 kg |
| Width: | 44.7 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
|---|---|
| : | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
