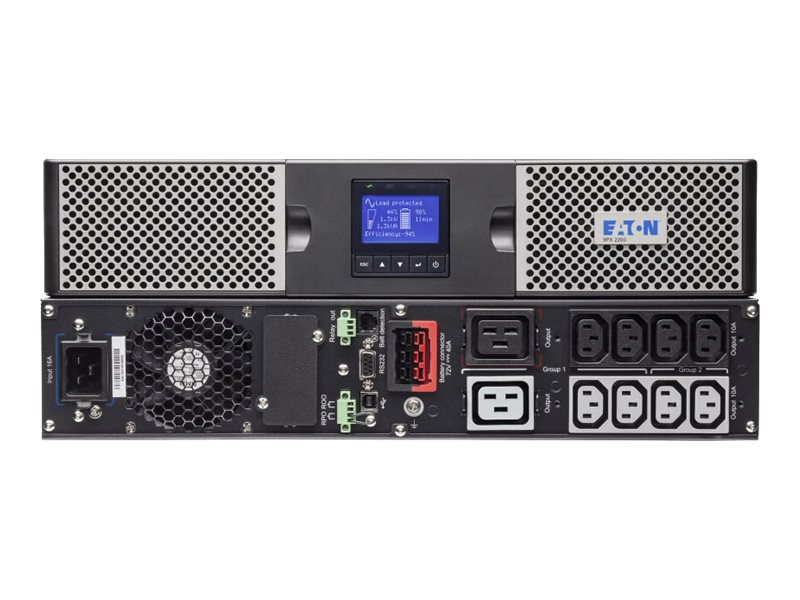

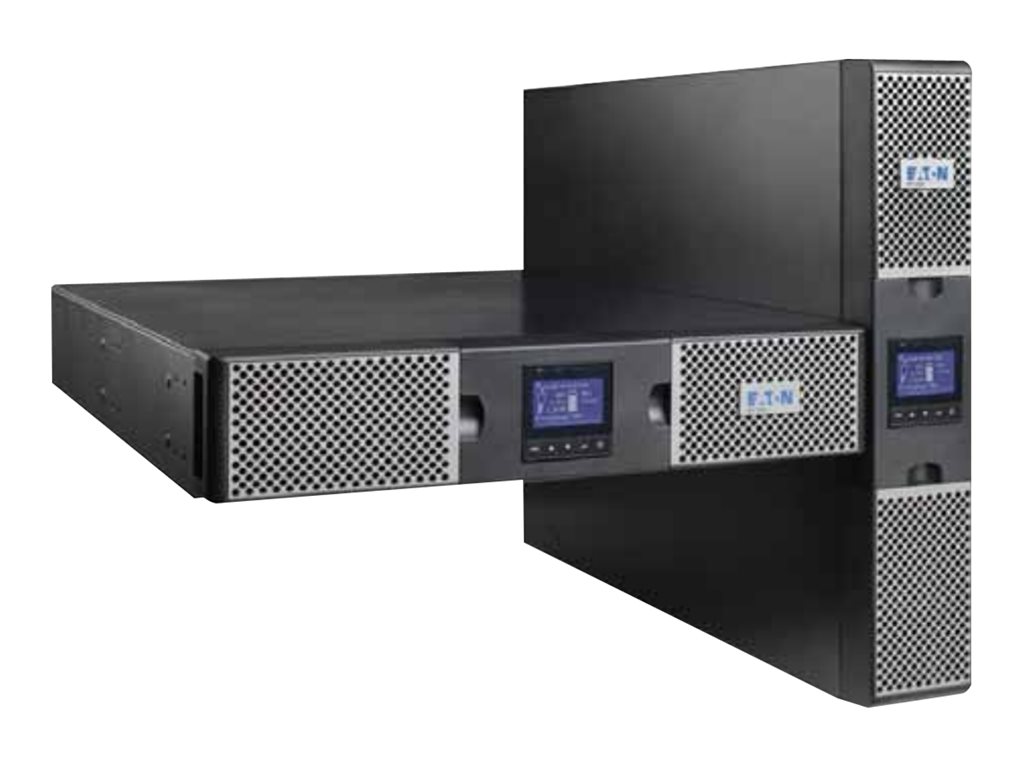

Eaton 9PX2200IRT2U
Eaton 9PX UPS, 2200 VA, 2200 W, Input: C20, Outputs: (8) C13, (2) C19, Rack/tower, 2U
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Eaton 9PX UPS, 2200 VA, 2200 W, Input: C20, Outputs: (8) C13, (2) C19, Rack/tower, 2U
| Compliant Standards: | FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cULus, CSA 22.2, KC, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1 |
|---|---|
| Depth: | 60.5 cm |
| Device Type: | UPS - Power Factor Correction (PFC) - rack-mountable / external |
| ENERGY STAR: | Yes |
| Efficiency: | 98% |
| Expansion Slots: | 1 (total) / 1 (free) x Expansion Slot |
| Features: | LCD display, internal bypass |
| Frequency Required: | 40 - 70 Hz |
| Height: | 8.65 cm |
| Height (Rack Units): | 2U |
| Input Connectors: | 1 |
| Input Voltage: | AC 200/208/220/230/240 V |
| Input Voltage Range: | AC 176 - 276 V |
| Input Wiring: | 1-phase |
| Interfaces: | 1 x management (USB) ¦ 1 x management (RS-232) |
| Manufacturer: | Eaton |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Output Voltage: | AC 200/208/220/230/240 V |
| Power Capacity: | 2200 Watt / 2200 VA |
| Power Output Connectors Details: | 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 16A |
| Remote Management Interface: | RS-232, USB |
| Run Time (Up To): | 44 min at 300 Watts ¦ 23 min at 500 Watts ¦ 15 min at 800 Watts ¦ 9 min at 1200 Watts ¦ 5 min at 1800 Watts |
| Software Included: | Intelligent Power Software Suite |
| Sound Emission: | 40 dB |
| UPS Technology: | On-line |
| Version: | original |
| Weight: | 25 kg |
| Width: | 44 cm |
| GPSR - economic actor: | Eaton, Deutschland, Hein-Moeller-Str. 7-11, Bonn, 53115, infogermany @ eaton.com |
|---|---|
| GPSR - product manufacturer: | Eaton, Deutschland, Hein-Moeller-Str. 7-11, Bonn, 53115, infogermany @ eaton.com |
| GPSR - EU responsible person: | Eaton, Deutschland, Hein-Moeller-Str. 7-11, Bonn, 53115, infogermany @ eaton.com |
| Warnings: | Warnings Other Storage Products International.pdf |
| Safety instructions: | Safety instructions Other Storage Products International.pdf |
Eaton 9PX UPS, 2200 VA, 2200 W, Input: C20, Outputs: (8) C13, (2) C19, Rack/tower, 2U
| Compliant Standards: | FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cULus, CSA 22.2, KC, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1 |
|---|---|
| Depth: | 60.5 cm |
| Device Type: | UPS - Power Factor Correction (PFC) - rack-mountable / external |
| ENERGY STAR: | Yes |
| Efficiency: | 98% |
| Expansion Slots: | 1 (total) / 1 (free) x Expansion Slot |
| Features: | LCD display, internal bypass |
| Frequency Required: | 40 - 70 Hz |
| Height: | 8.65 cm |
| Height (Rack Units): | 2U |
| Input Connectors: | 1 |
| Input Voltage: | AC 200/208/220/230/240 V |
| Input Voltage Range: | AC 176 - 276 V |
| Input Wiring: | 1-phase |
| Interfaces: | 1 x management (USB) ¦ 1 x management (RS-232) |
| Manufacturer: | Eaton |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Output Voltage: | AC 200/208/220/230/240 V |
| Power Capacity: | 2200 Watt / 2200 VA |
| Power Output Connectors Details: | 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 16A |
| Remote Management Interface: | RS-232, USB |
| Run Time (Up To): | 44 min at 300 Watts ¦ 23 min at 500 Watts ¦ 15 min at 800 Watts ¦ 9 min at 1200 Watts ¦ 5 min at 1800 Watts |
| Software Included: | Intelligent Power Software Suite |
| Sound Emission: | 40 dB |
| UPS Technology: | On-line |
| Version: | original |
| Weight: | 25 kg |
| Width: | 44 cm |
| GPSR - economic actor: | Eaton, Deutschland, Hein-Moeller-Str. 7-11, Bonn, 53115, infogermany @ eaton.com |
|---|---|
| GPSR - product manufacturer: | Eaton, Deutschland, Hein-Moeller-Str. 7-11, Bonn, 53115, infogermany @ eaton.com |
| GPSR - EU responsible person: | Eaton, Deutschland, Hein-Moeller-Str. 7-11, Bonn, 53115, infogermany @ eaton.com |
