Aruba JG307C

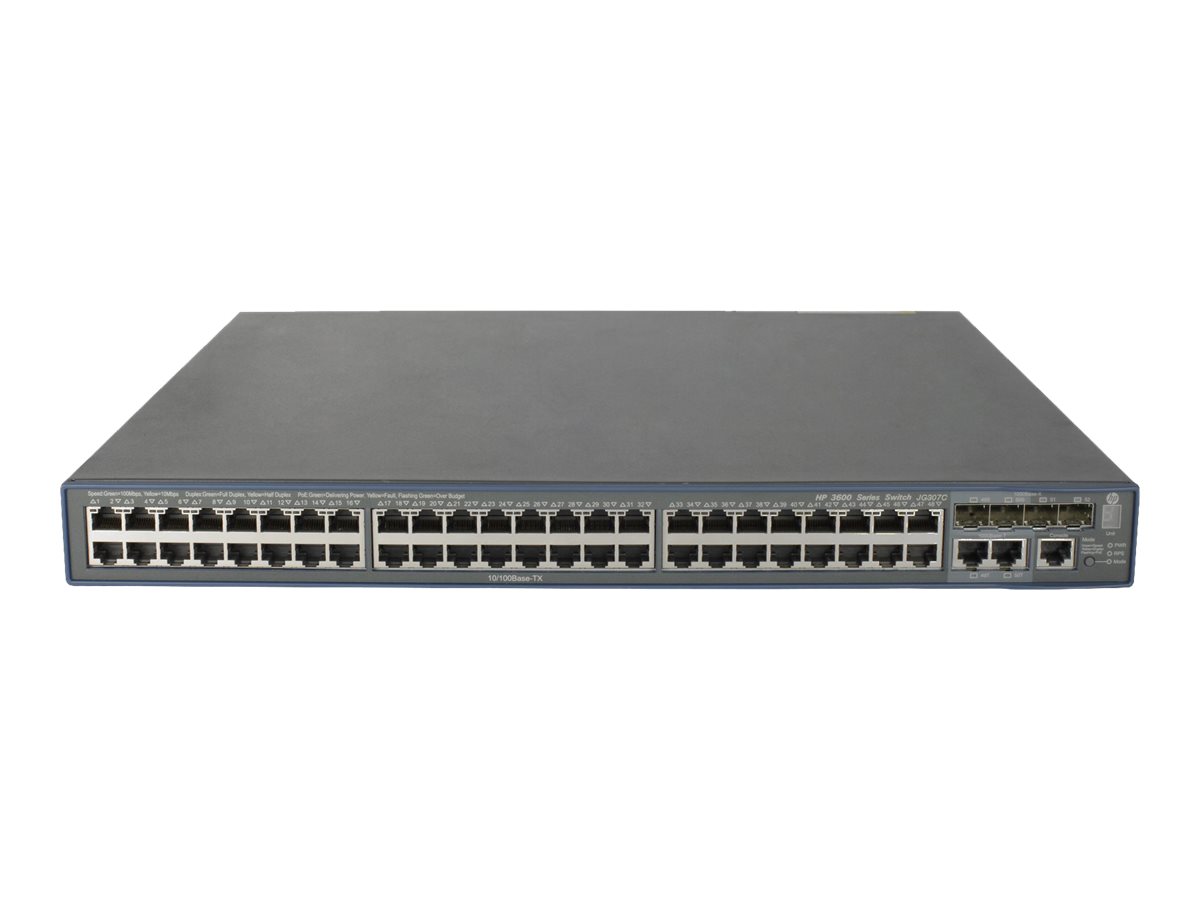

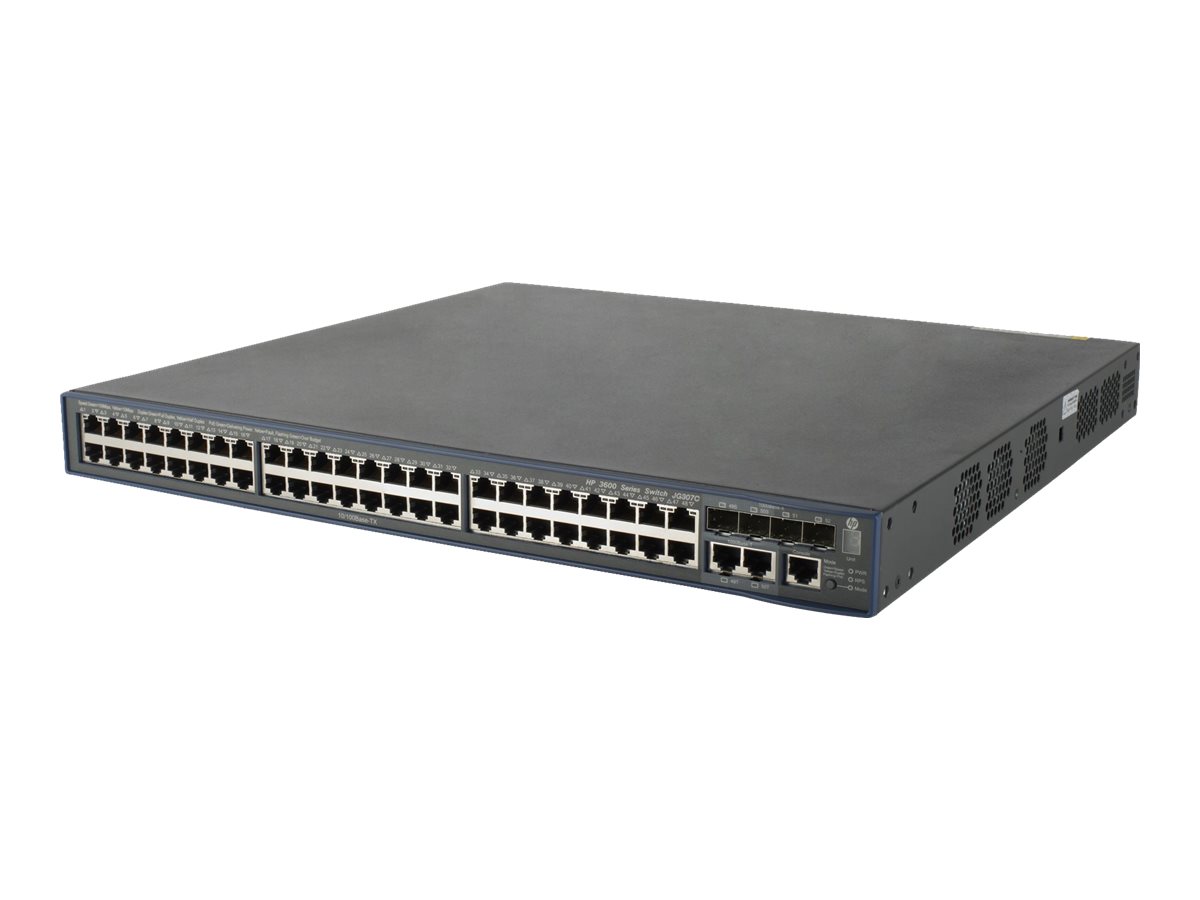

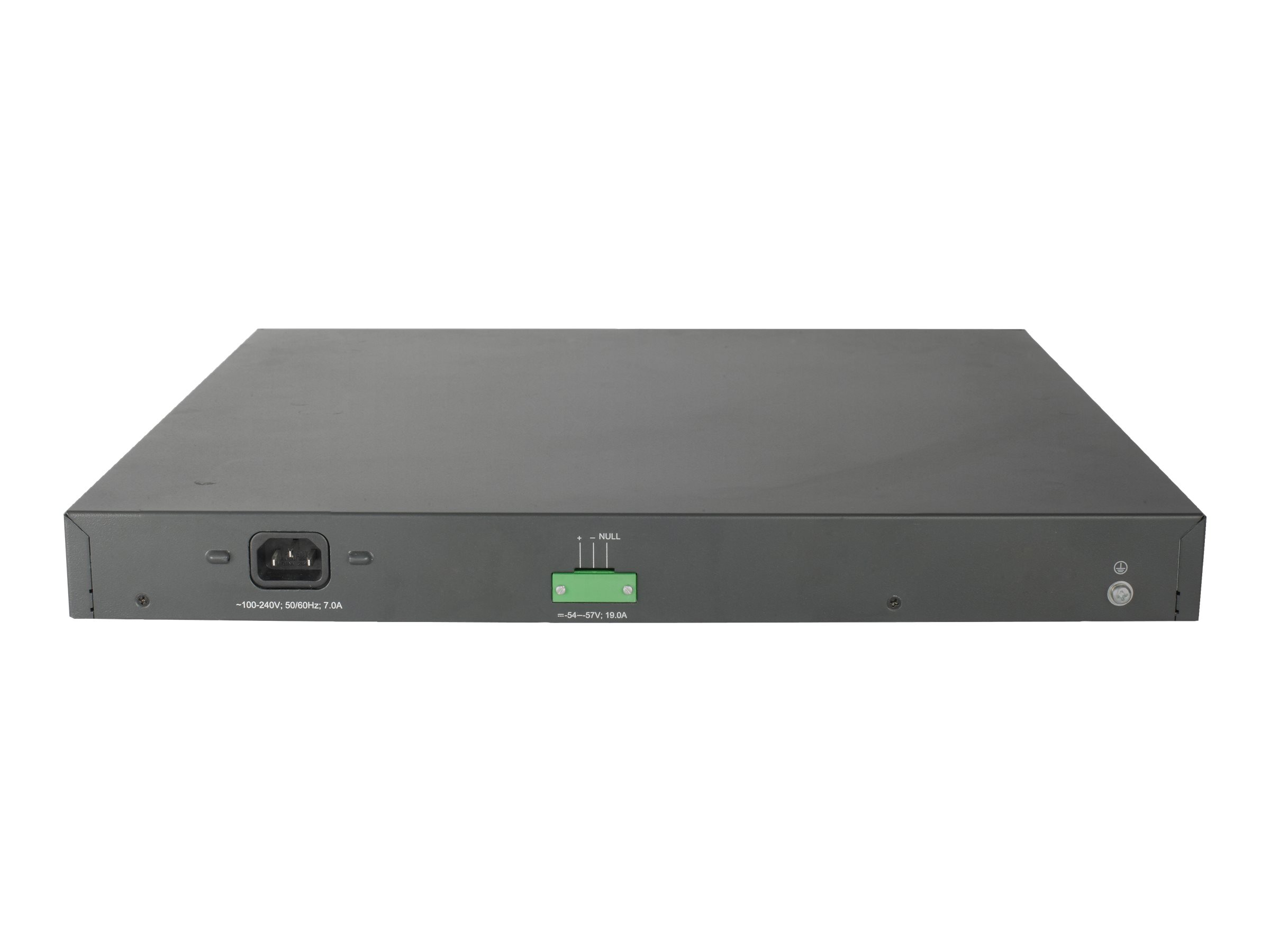

HP 3600-48-PoE+ v2 SI Switch
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
HP 3600-48-PoE+ v2 SI Switch
| Authentication Method: | RADIUS, Secure Shell v.2 (SSH2), HWTACACS |
|---|---|
| Capacity: | IPv4 routing table entries: 2048 |
| Compliant Standards: | FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, CSA C22.2 |
| Depth: | 42.01 cm |
| Device Type: | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type: | Rack-mountable 1U |
| Encryption Algorithm: | SSL |
| Features: | Flow control, routing, Layer 2 switching, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundanc |
| Flash Memory: | 128 MB |
| Height: | 4.37 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Humidity Range Storage: | 5 - 95% (non-condensing) |
| Interfaces: | 48 x LAN RJ-45 PoE+ ¦ 4 x Gigabit LAN SFP ¦ 2 x 1000Base-T RJ-45 ¦ 1 x serial (console) RJ-45 |
| Jumbo Frame Support: | 9216 bytes |
| Manufacturer: | HPE Aruba |
| Max Operating Temperature: | 50 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Throughput (64-byte packet size): 13.1 Mpps ¦ Routing/switching capacity: 17.6 Gbps |
| PoE Budget: | 720 W |
| Ports: | 48 x 10/100 (PoE+) + 4 x Gigabit SFP + 2 x shared 10/100/1000 |
| Power Consumption Operational: | 820 Watt |
| Power Device: | Internal power supply |
| Power Over Ethernet (PoE): | PoE+ |
| RAM: | 256 MB SDRAM |
| Rack Mounting Kit: | Included |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH-2, CLI |
| Routing Protocol: | RIP-1, RIP-2, IGMP, VRRP, static IPv4 routing, static IPv6 routing, RIPng, MLD |
| Subtype: | Fast Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 10 kg |
| Width: | 43.99 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
|---|---|
| GPSR - product manufacturer: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
