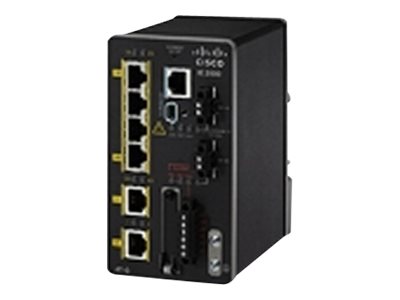

Cisco IE-2000-4TS-B
IE 4 10/100,2 FE SFP, Base
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
IE 4 10/100,2 FE SFP, Base
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+ |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 255 |
| Compliant Standards: | C-Tick, CISPR 22 Class A, CISPR 24, IEC 61000-4-11, VCCI Class A ITE, EN55022 Class A, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN |
| Depth: | 11.46 cm |
| Device Type: | Switch - 4 ports - Managed |
| Enclosure Type: | DIN rail mountable |
| Expansion Slots: | 1 (total) / 1 (free) x SD Memory Card |
| Features: | DHCP support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), Port Security, Remote Switch Port Analyzer (RSPAN) |
| Flash Memory: | 64 MB |
| Height: | 12.7 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Interfaces: | 6 x 100Base-TX RJ-45 ¦ 2 x SFP (mini-GBIC) |
| MAC Address Table Size: | 8K entries |
| MTBF: | 374,052 hours |
| Manufacturer: | Cisco Meraki |
| Max Storage Temperature: | 85 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Forwarding performance (64-byte packet size): 6.5 Mpps |
| Ports: | 4 x 10/100 + 2 x SFP |
| RAM: | 256 MB |
| Rack Mounting Kit: | Optional |
| Remote Management Protocol: | SNMP 3, HTTPS, SSH |
| Routing Protocol: | IGMP, static IPv4 routing |
| Software Included: | Cisco IOS LAN Base |
| Subtype: | Fast Ethernet |
| Version: | original |
| Weight: | 1.11 kg |
| Width: | 7.37 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
IE 4 10/100,2 FE SFP, Base
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+ |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 255 |
| Compliant Standards: | C-Tick, CISPR 22 Class A, CISPR 24, IEC 61000-4-11, VCCI Class A ITE, EN55022 Class A, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN |
| Depth: | 11.46 cm |
| Device Type: | Switch - 4 ports - Managed |
| Enclosure Type: | DIN rail mountable |
| Expansion Slots: | 1 (total) / 1 (free) x SD Memory Card |
| Features: | DHCP support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), Port Security, Remote Switch Port Analyzer (RSPAN) |
| Flash Memory: | 64 MB |
| Height: | 12.7 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Interfaces: | 6 x 100Base-TX RJ-45 ¦ 2 x SFP (mini-GBIC) |
| MAC Address Table Size: | 8K entries |
| MTBF: | 374,052 hours |
| Manufacturer: | Cisco Meraki |
| Max Storage Temperature: | 85 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Forwarding performance (64-byte packet size): 6.5 Mpps |
| Ports: | 4 x 10/100 + 2 x SFP |
| RAM: | 256 MB |
| Rack Mounting Kit: | Optional |
| Remote Management Protocol: | SNMP 3, HTTPS, SSH |
| Routing Protocol: | IGMP, static IPv4 routing |
| Software Included: | Cisco IOS LAN Base |
| Subtype: | Fast Ethernet |
| Version: | original |
| Weight: | 1.11 kg |
| Width: | 7.37 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
