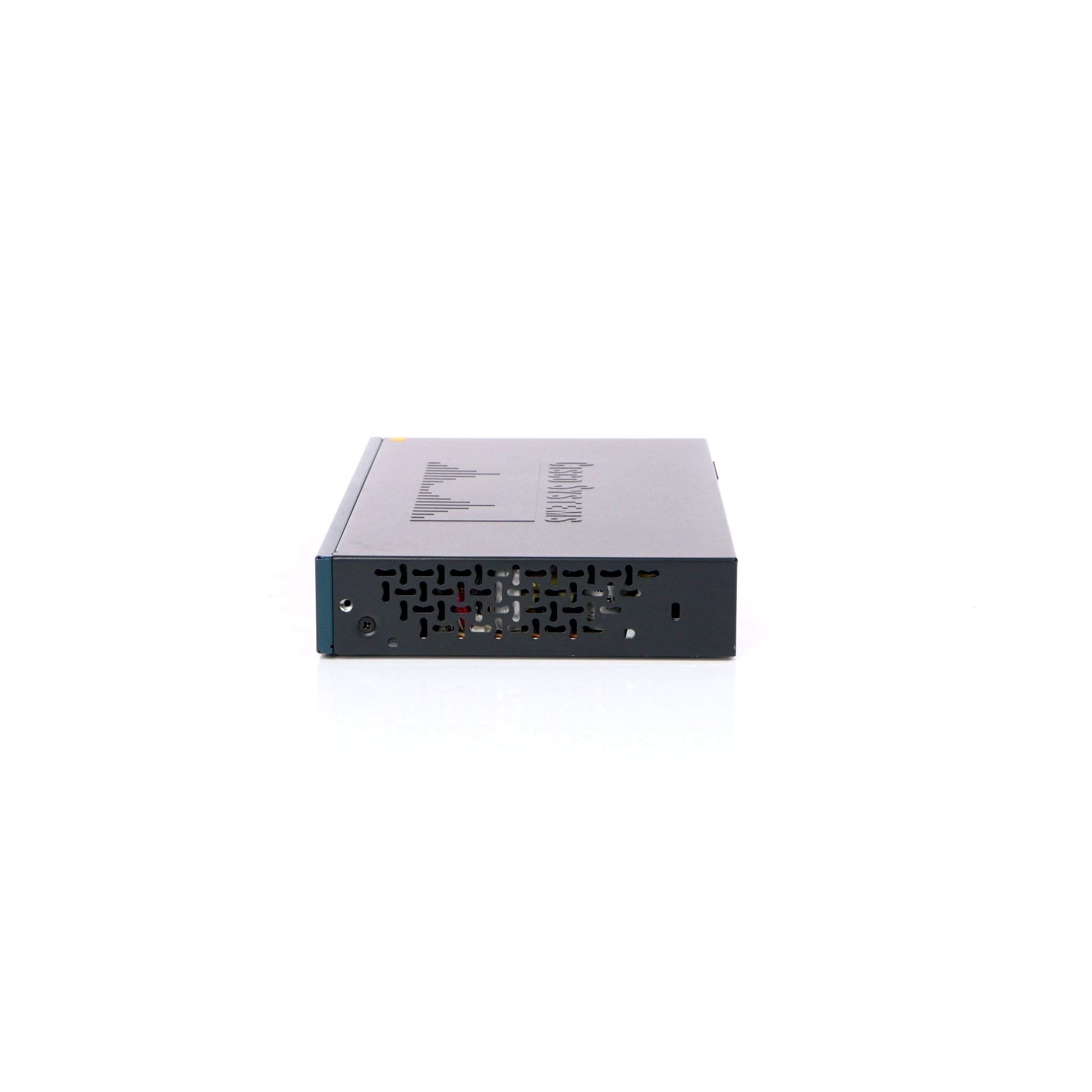

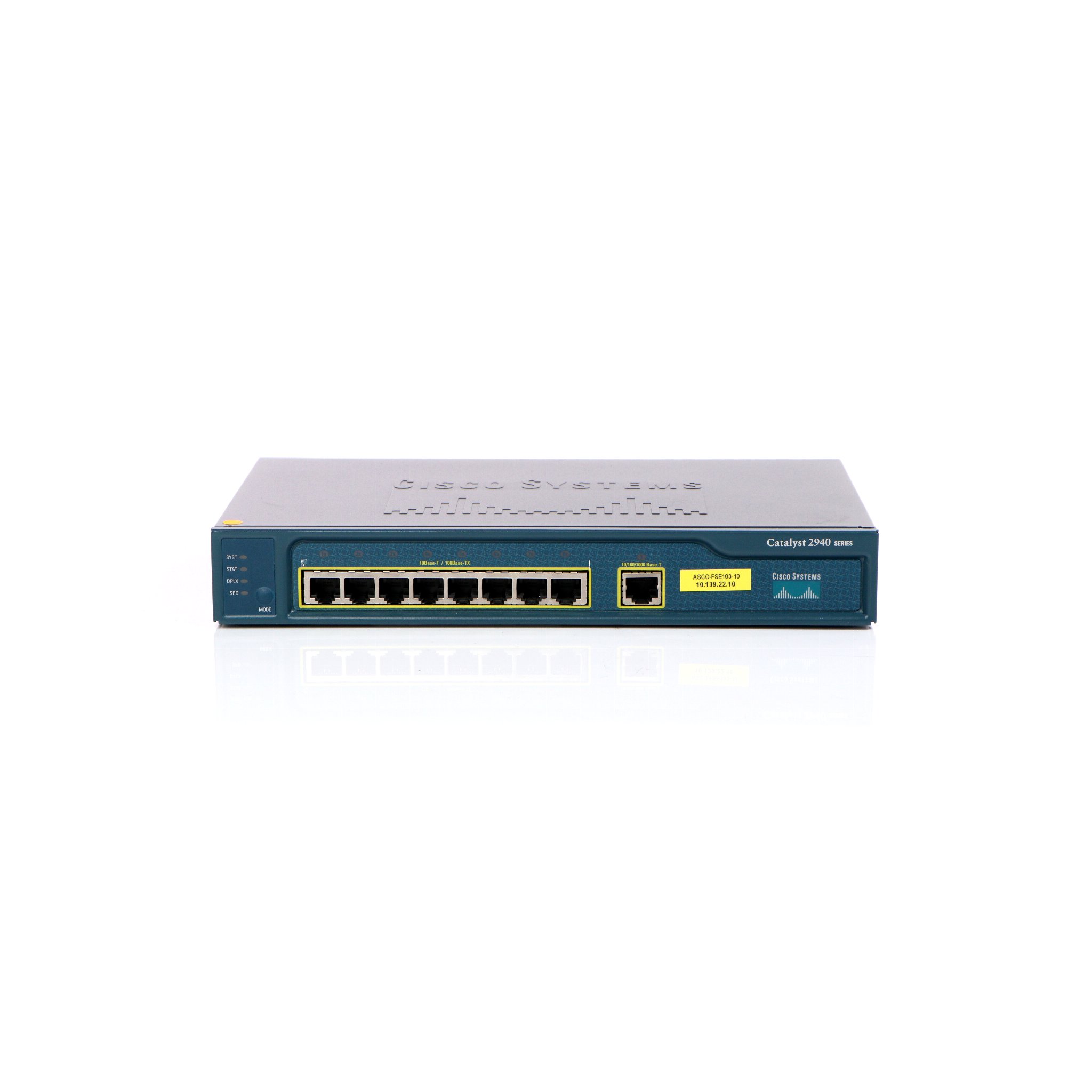

Cisco WS-C2940-8TT-S
8 10/100 Ethernet ports and 1 10/100/1000 Ethernet port
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
8 10/100 Ethernet ports and 1 10/100/1000 Ethernet port
| Authentication Method: | RADIUS, TACACS+ |
|---|---|
| Compliant Standards: | FCC Class A certified, CSA, UL, TUV GS, CISPR 22 Class A, CISPR 24, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024 |
| Depth: | 16.3 cm |
| Device Type: | Switch - 8 ports - Managed |
| Enclosure Type: | Desktop |
| Features: | Full duplex capability, fault tolerance, auto-sensing per device, DHCP support, auto-negotiation, trunking, VLAN support, IGMP snooping, manageable, Intrusion Detection System (IDS) |
| Flash Memory: | 8 MB Flash |
| Height: | 3.9 cm |
| Humidity Range Operating: | 10 - 85% |
| Interfaces: | 8 x 100Base-TX RJ-45 ¦ 1 x 1000Base-T RJ-45 ¦ 1 x console RJ-45 management |
| MAC Address Table Size: | 8K entries |
| MTBF: | 771,000 hours |
| Manufacturer: | Cisco Meraki |
| Max Altitude Operating: | 3 km |
| Max Operating Temperature: | 45 °C |
| Min Operating Temperature: | 0 °C |
| Mounting Kit: | Optional |
| Ports: | 8 x 10/100 + 1 x 10/100/1000 |
| Power Consumption Operational: | 15 Watt |
| Power Device: | Internal power supply |
| RAM: | 16 MB |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 1, RMON 2, Telnet, SNMP 3, HTTP |
| Software Included: | Drivers & Utilities |
| Status Indicators: | Port status, port transmission speed, port duplex mode, link OK, status, link/activity |
| Subtype: | Fast Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 1.4 kg |
| Width: | 26.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
8 10/100 Ethernet ports and 1 10/100/1000 Ethernet port
| Authentication Method: | RADIUS, TACACS+ |
|---|---|
| Compliant Standards: | FCC Class A certified, CSA, UL, TUV GS, CISPR 22 Class A, CISPR 24, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024 |
| Depth: | 16.3 cm |
| Device Type: | Switch - 8 ports - Managed |
| Enclosure Type: | Desktop |
| Features: | Full duplex capability, fault tolerance, auto-sensing per device, DHCP support, auto-negotiation, trunking, VLAN support, IGMP snooping, manageable, Intrusion Detection System (IDS) |
| Flash Memory: | 8 MB Flash |
| Height: | 3.9 cm |
| Humidity Range Operating: | 10 - 85% |
| Interfaces: | 8 x 100Base-TX RJ-45 ¦ 1 x 1000Base-T RJ-45 ¦ 1 x console RJ-45 management |
| MAC Address Table Size: | 8K entries |
| MTBF: | 771,000 hours |
| Manufacturer: | Cisco Meraki |
| Max Altitude Operating: | 3 km |
| Max Operating Temperature: | 45 °C |
| Min Operating Temperature: | 0 °C |
| Mounting Kit: | Optional |
| Ports: | 8 x 10/100 + 1 x 10/100/1000 |
| Power Consumption Operational: | 15 Watt |
| Power Device: | Internal power supply |
| RAM: | 16 MB |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 1, RMON 2, Telnet, SNMP 3, HTTP |
| Software Included: | Drivers & Utilities |
| Status Indicators: | Port status, port transmission speed, port duplex mode, link OK, status, link/activity |
| Subtype: | Fast Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 1.4 kg |
| Width: | 26.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
