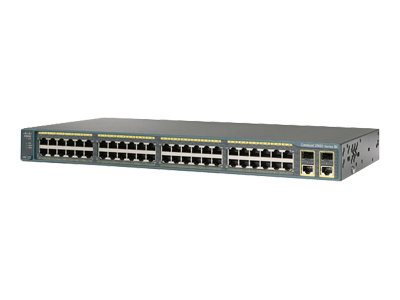

Cisco WS-C2960-48TC-S
Catalyst 2960 48 10/100 2 T/SFP LAN Lite Image
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Catalyst 2960 48 10/100 2 T/SFP LAN Lite Image
| Authentication Method: | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|---|---|
| Compliant Standards: | TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, EN55024, CB, EMC, MIC, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1, FCC Part 15 B Class A |
| Depth: | 23.6 cm |
| Device Type: | Switch - 48 ports - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Encryption Algorithm: | SSL |
| Features: | Redundant Power System (RPS) connector |
| Features: | Layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Rapid Spannin |
| Flash Memory: | 32 MB Flash |
| Height: | 4.4 cm |
| Humidity Range Operating: | 10 - 95% (non-condensing) |
| Humidity Range Storage: | 10 - 95% (non-condensing) |
| Interfaces: | 48 x 100Base-TX RJ-45 ¦ 2 x 1000Base-T RJ-45 ¦ 2 x SFP (mini-GBIC) |
| MAC Address Table Size: | 8K entries |
| MTBF: | 336,983 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | -5 °C |
| Min Storage Temperature: | -25 °C |
| Performance: | Switching capacity: 16 Gbps ¦ Forwarding performance (64-byte packet size): 10.1 Mpps |
| Ports: | 48 x 10/100 + 2 x combo Gigabit SFP |
| Power Consumption Operational: | 55 Watt |
| Power Device: | Internal power supply |
| RAM: | 64 MB |
| Rack Mounting Kit: | Optional |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2 |
| Software Included: | Cisco IOS LAN Lite |
| Status Indicators: | Port status, port transmission speed, port duplex mode, power, system, link/activity |
| Subtype: | Fast Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 3.65 kg |
| Width: | 44.5 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
