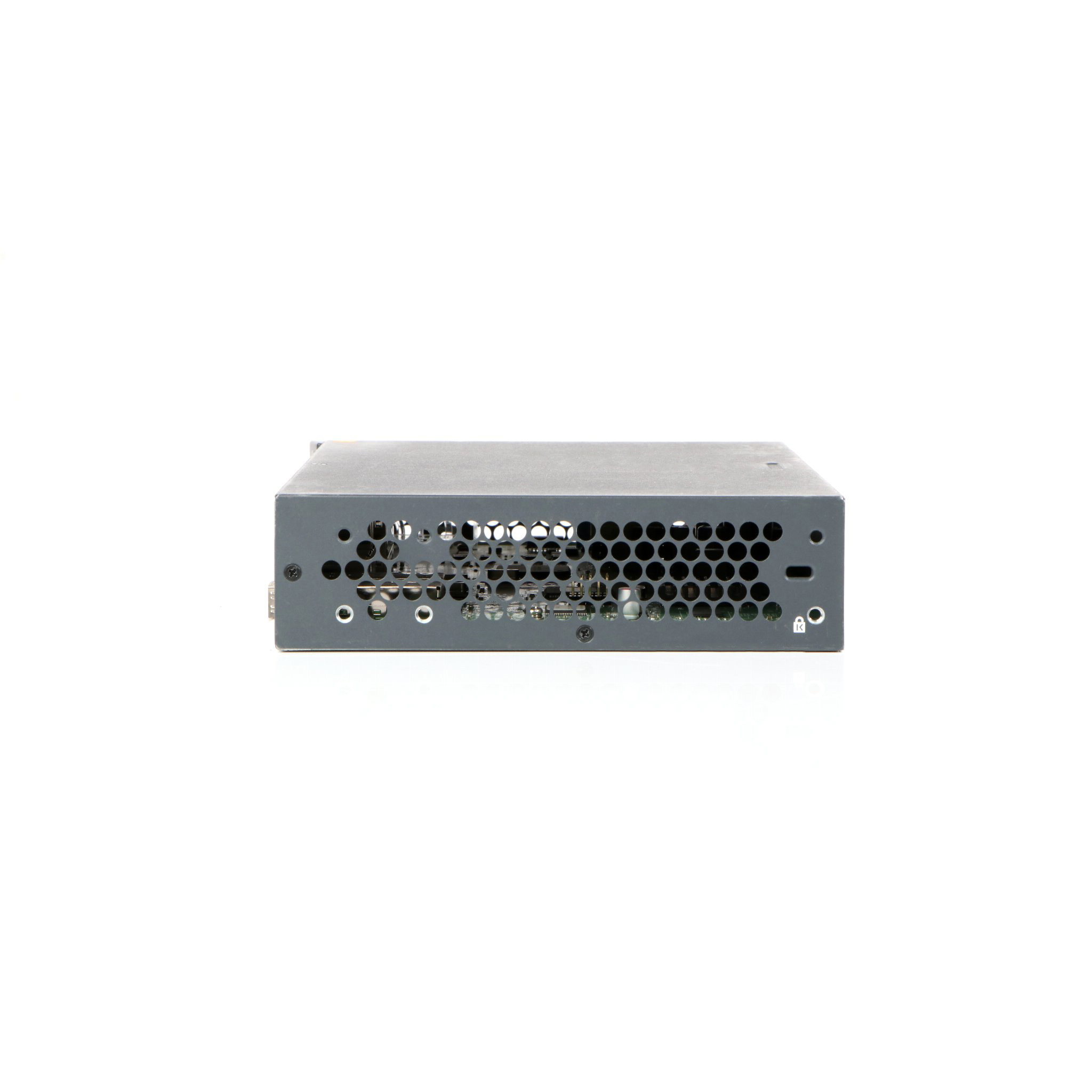

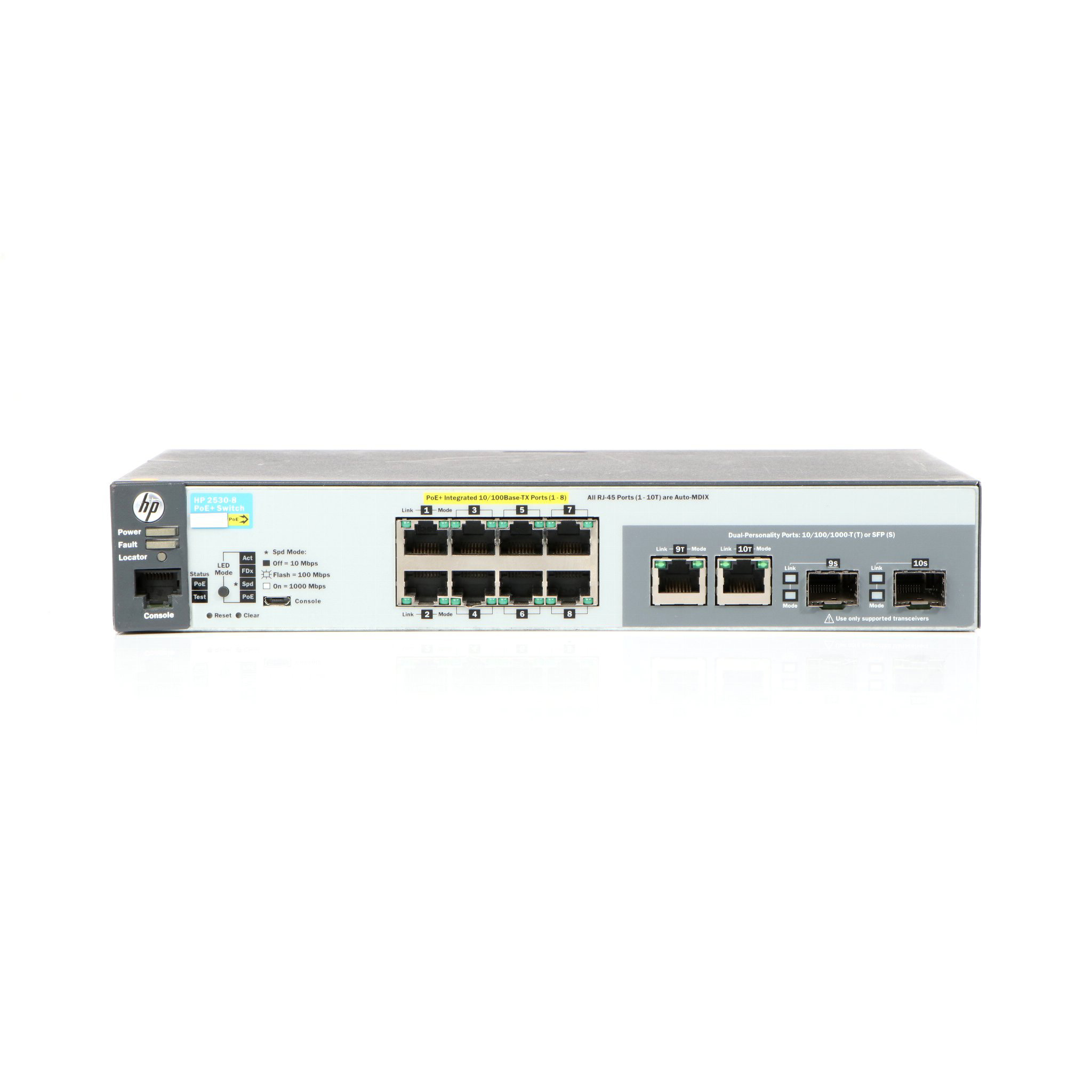

HPE J9780A

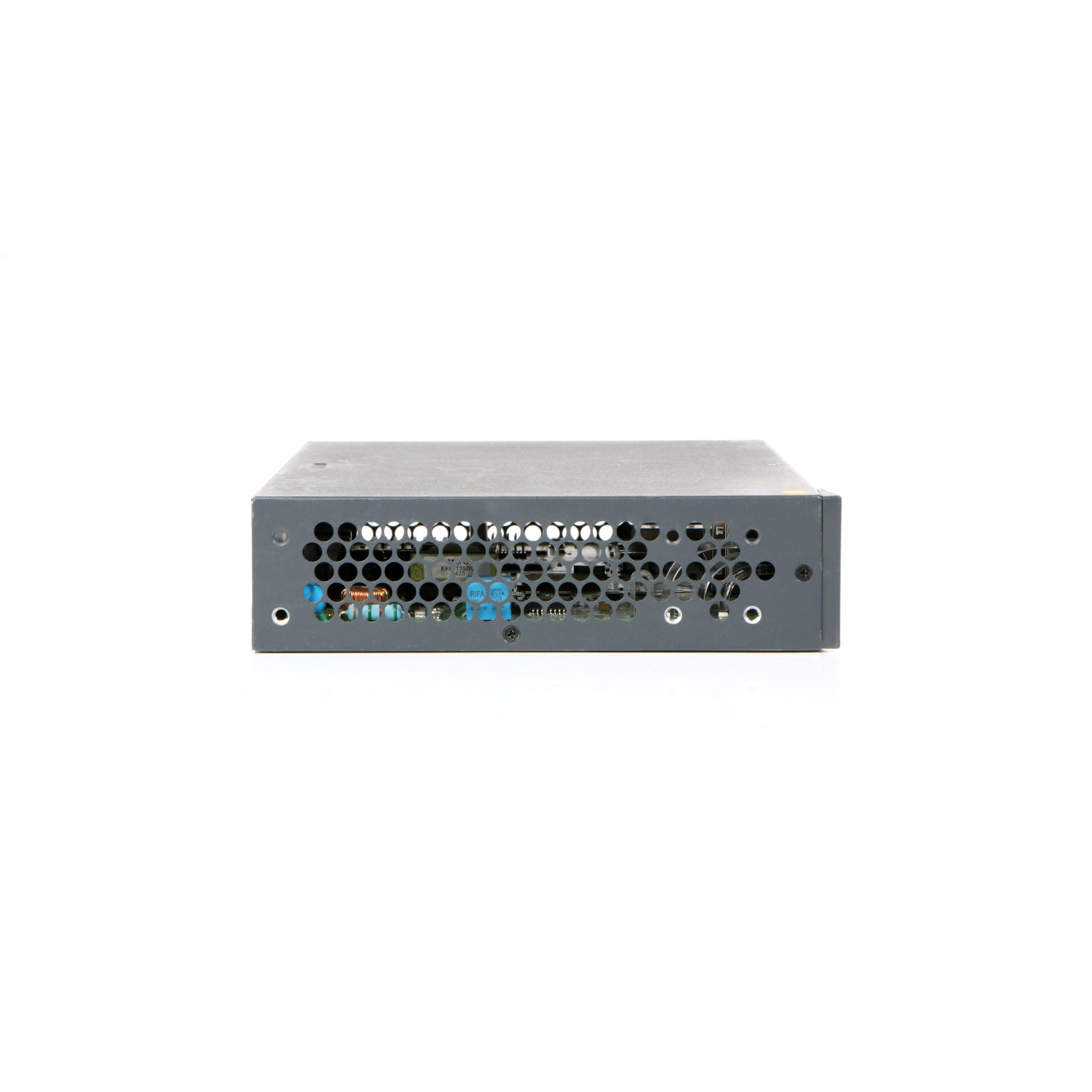

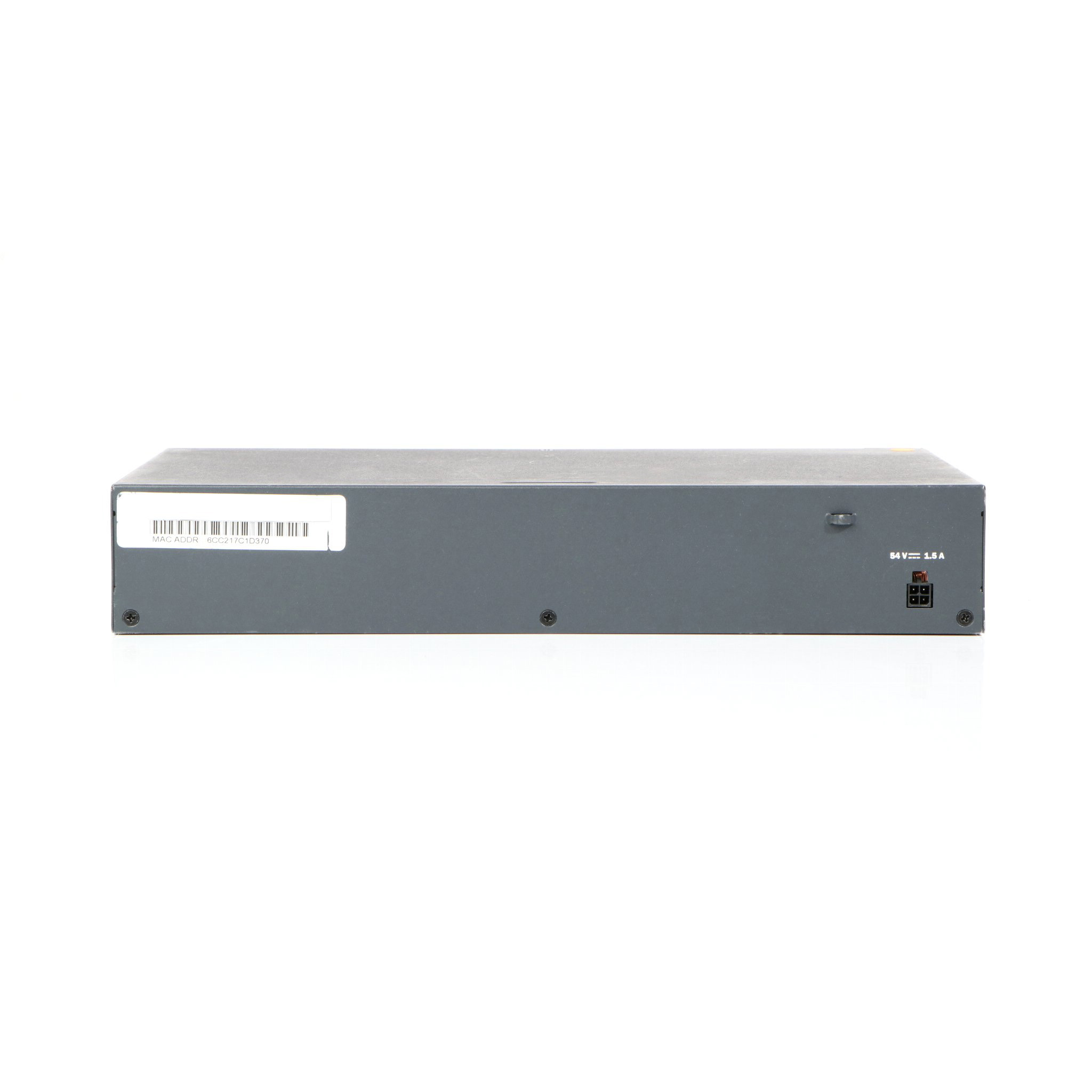

Aruba 2530 8 PoE+ Switch

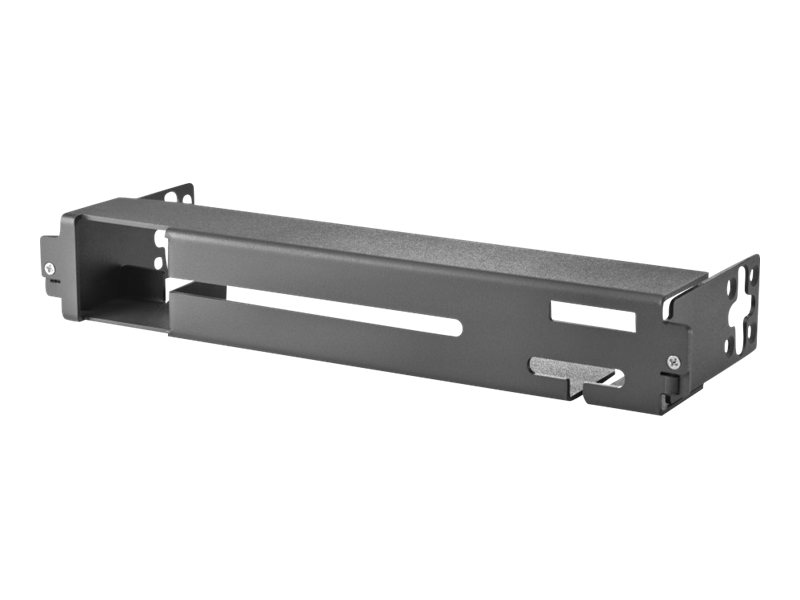

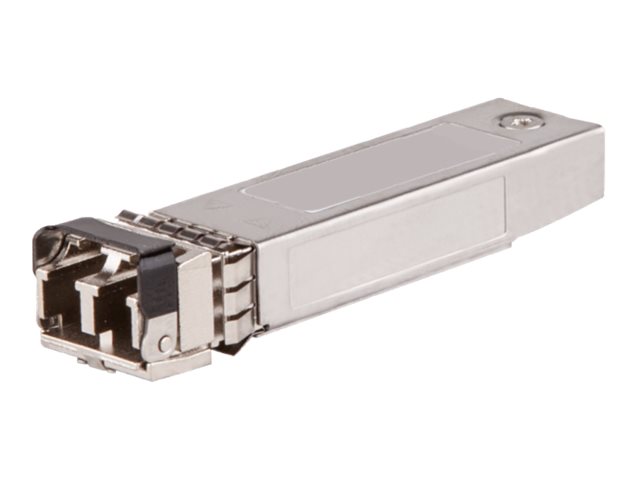

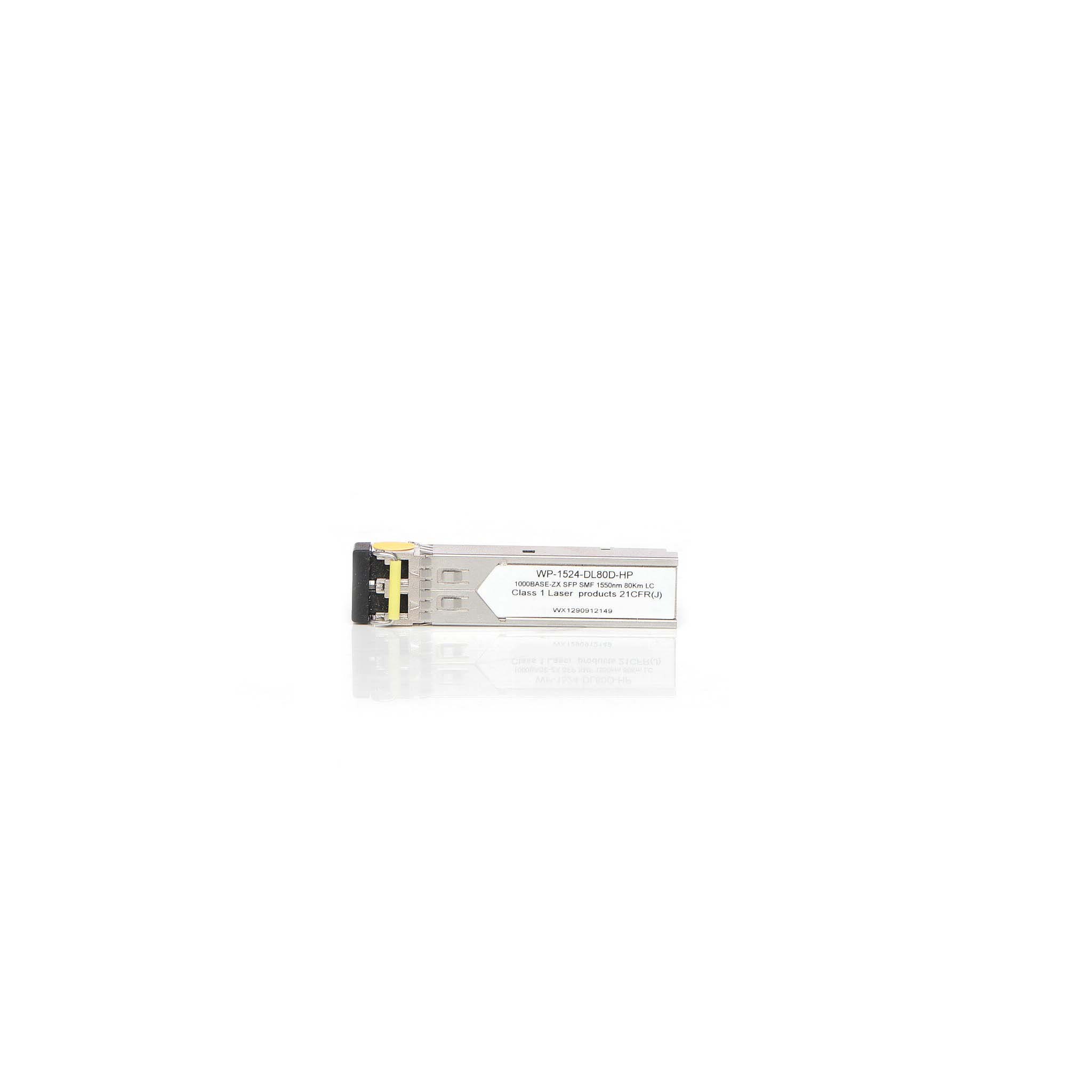

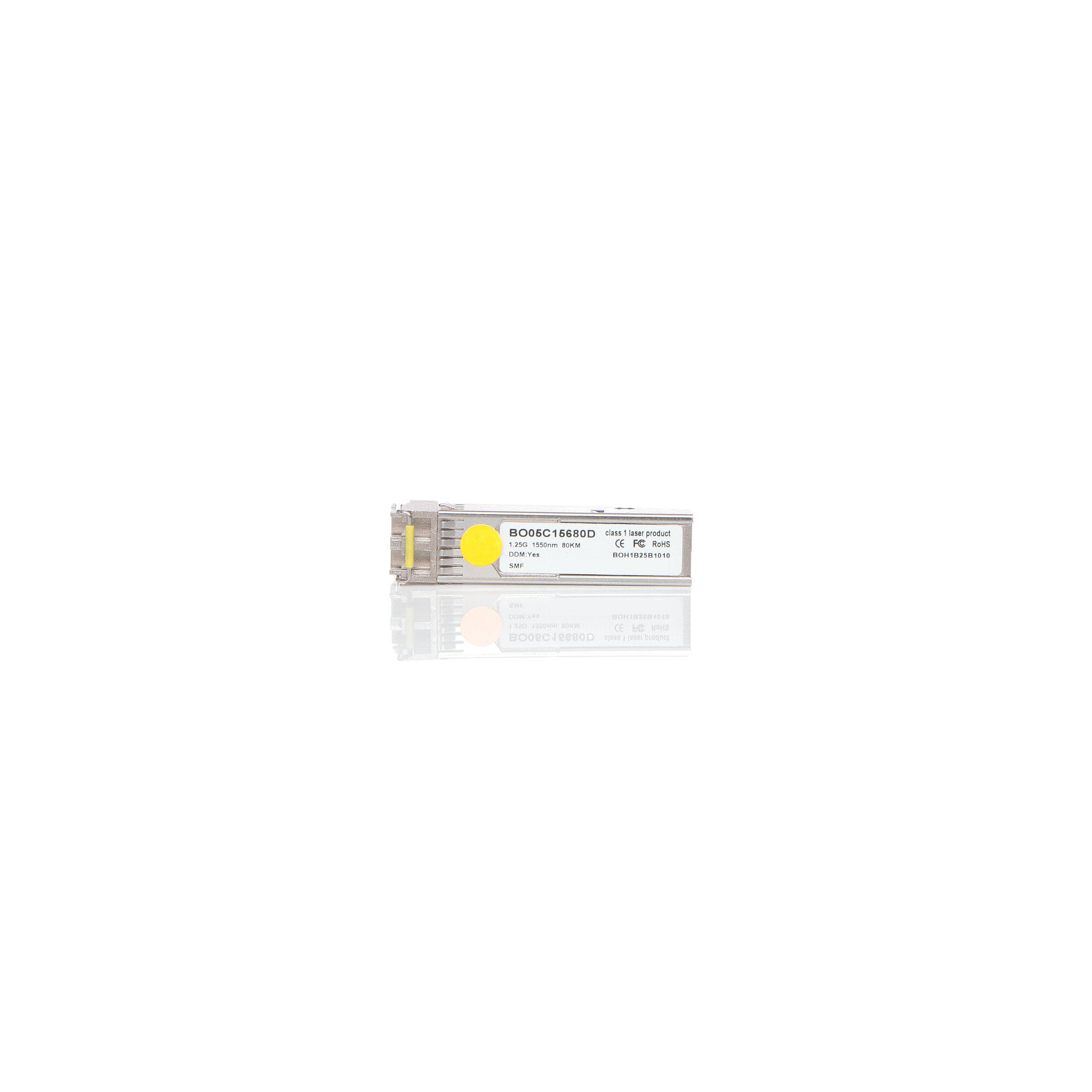

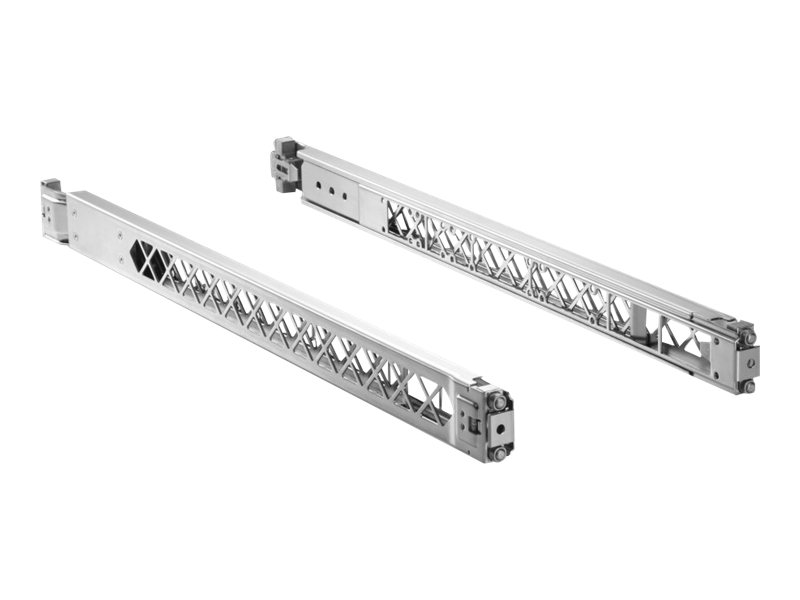

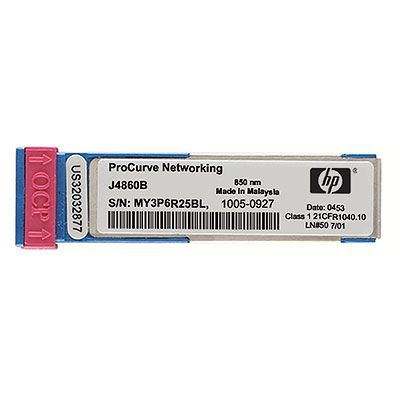

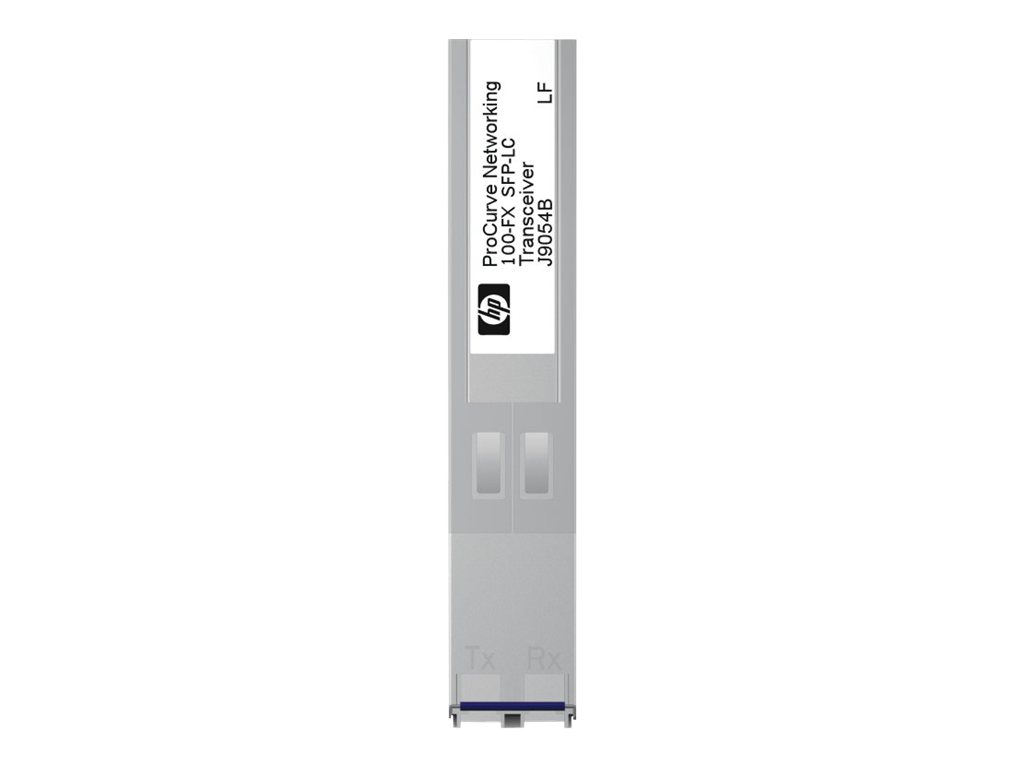

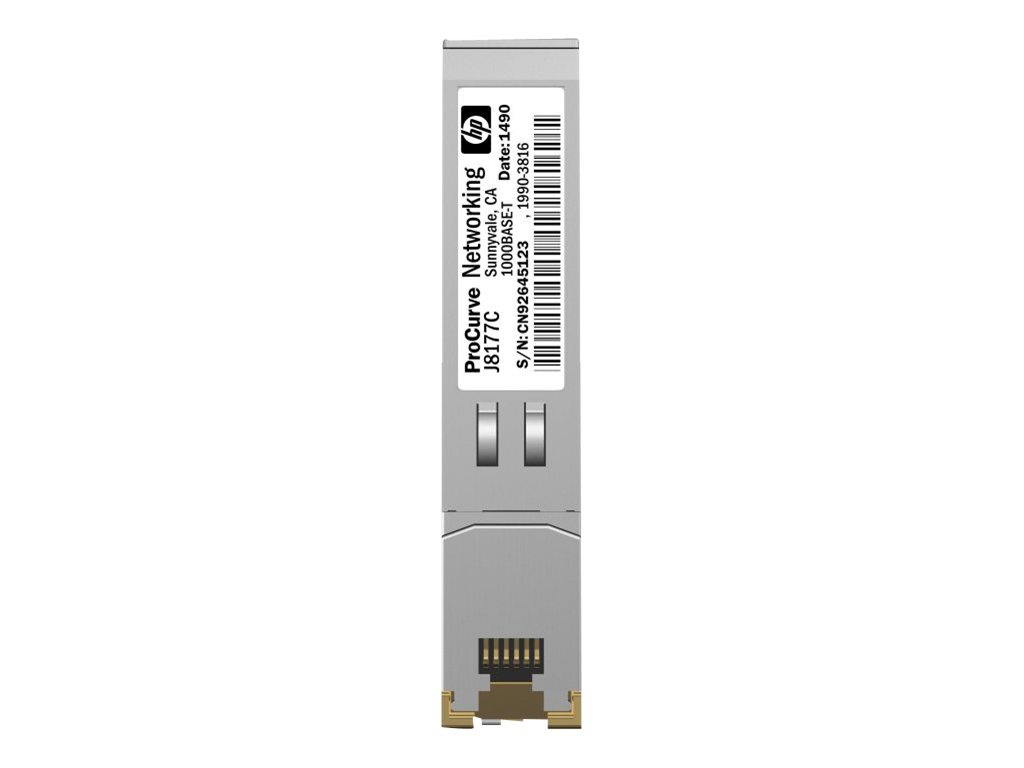

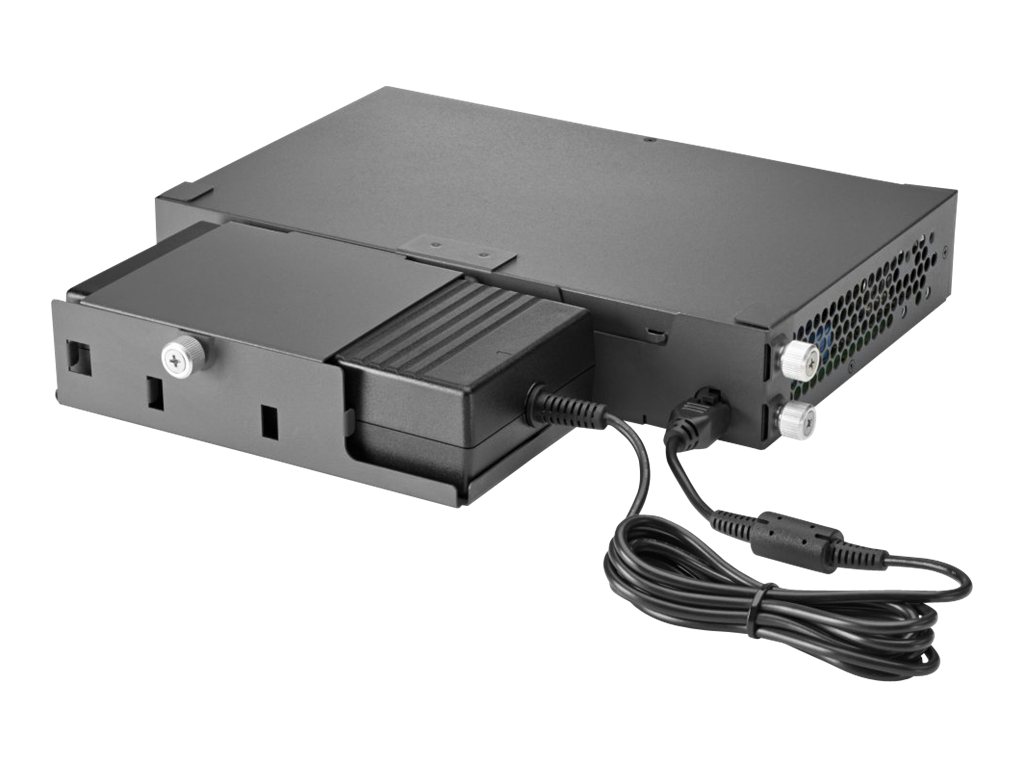

Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Aruba 2530 8 PoE+ Switch
| Authentication Method: | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|---|---|
| Capacity: | MAC addresses: 16000 |
| Compliant Standards: | FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class |
| Depth: | 15.95 cm |
| Device Type: | Switch - 8 ports - Managed |
| Enclosure Type: | Desktop, rack-mountable, wall-mountable 1U |
| Encryption Algorithm: | SSL |
| Features: | Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Access Con |
| Flash Memory: | 128 MB |
| Height: | 4.45 cm |
| Humidity Range Operating: | 15 - 95% (non-condensing) |
| Humidity Range Storage: | 15 - 90% (non-condensing) |
| Interfaces: | 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x SFP (mini-GBIC) ¦ 1 x management RJ-45 ¦ 8 x 10Base-T/100Base-TX - RJ-45 PoE+ |
| Jumbo Frame Support: | 9220 bytes |
| MAC Address Table Size: | 16000 entries |
| Manufacturer: | Aruba HPE |
| Max Operating Temperature: | 45 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Throughput: 4.1 Mpps ¦ Switching capacity: 5.6 Gbps |
| Ports: | 8 x 10/100 + 2 x Gigabit SFP + 2 x 10/100/1000 |
| Power Device: | Internal power supply |
| Power Over Ethernet (PoE): | PoE+ |
| Processor: | 1 x ARM: 800 MHz |
| RAM: | 256 MB DDR3 SDRAM |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI |
| Subtype: | Fast Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 910 g |
| Width: | 25.4 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
|---|---|
| : | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
