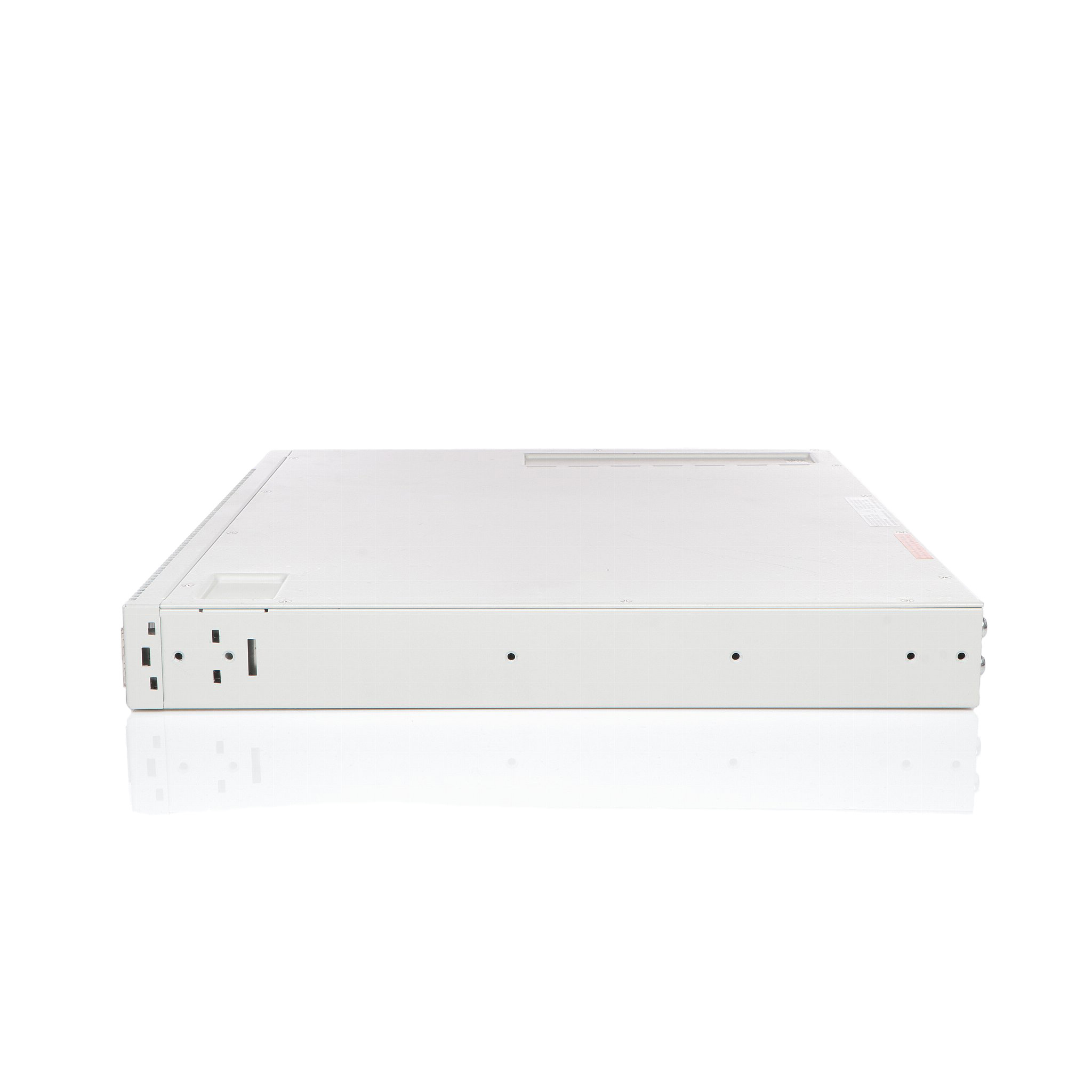

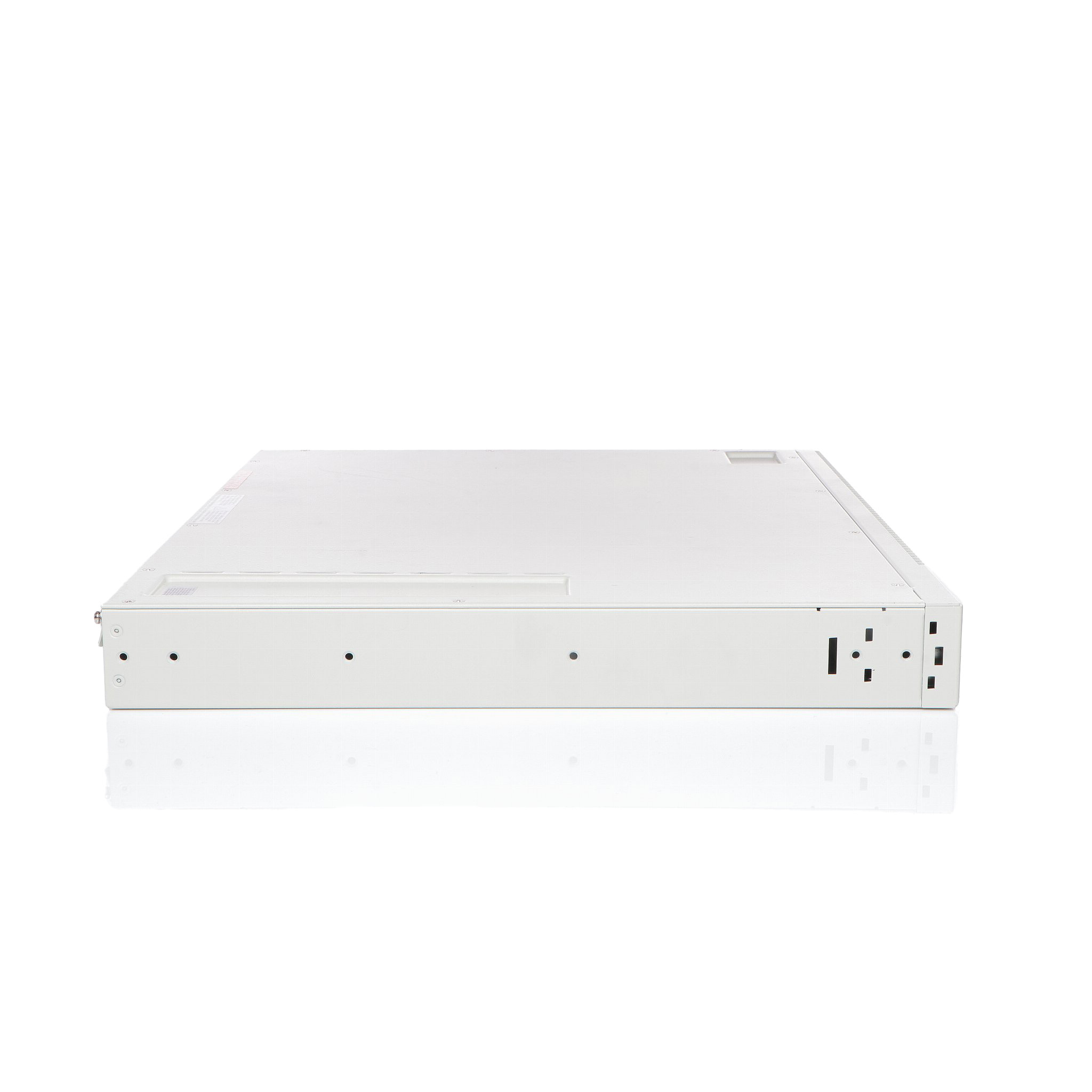

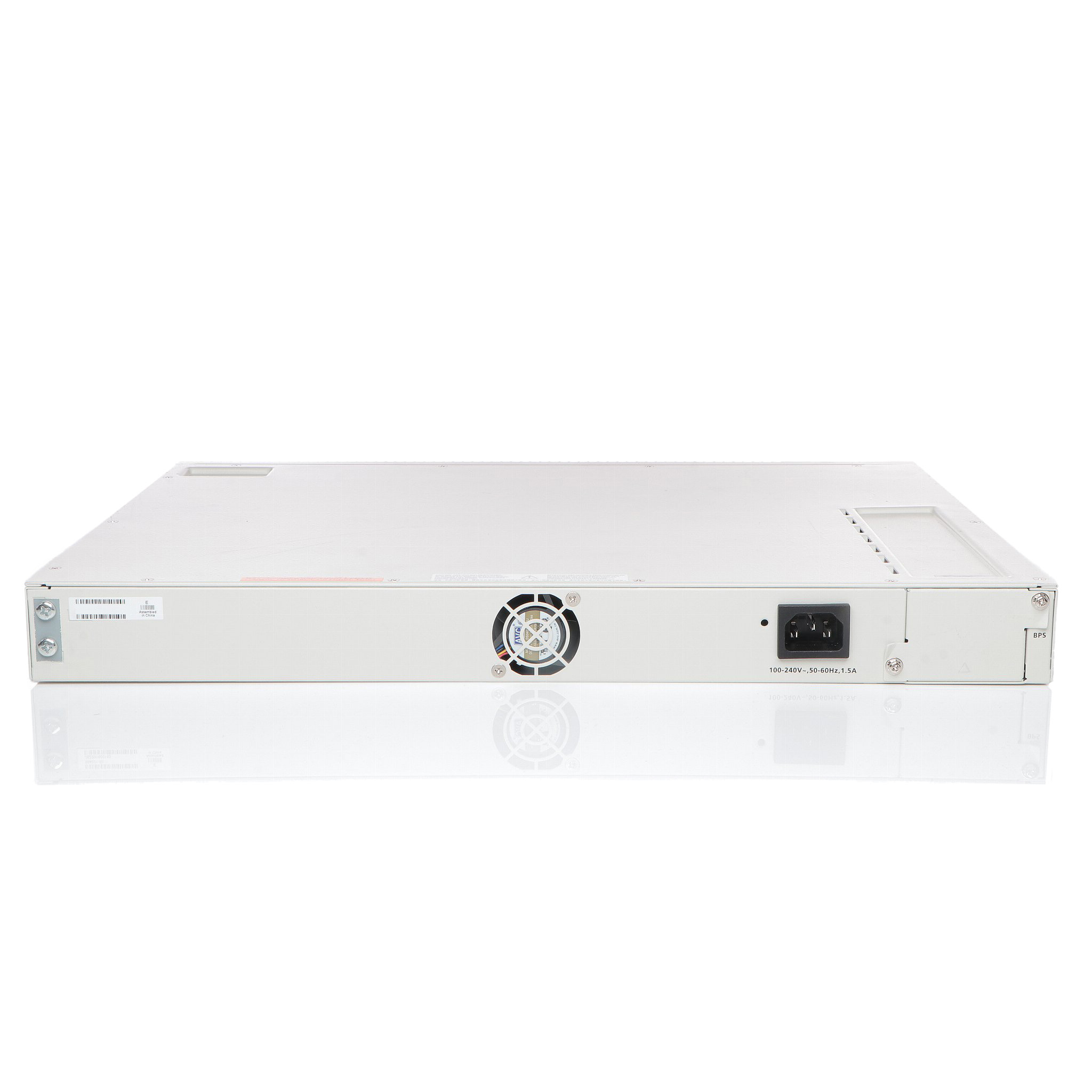

Alcatel-Lucent OS6560-24X4
OS6560-24X4 GigE-Festchassis 24 RJ-45 10/100 1G BaseT 4 Feste SFP+
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
OS6560-24X4 GigE-Festchassis 24 RJ-45 10/100 1G BaseT 4 Feste SFP+
| Authentication Method: | RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP, Extensible Authentication Protocol (EAP) |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 4000 ¦ Policies: up to 1500 ¦ Multicast groups: up to 1000 |
| Compliant Standards: | BSMI, EN 61000-3-2, EN55022, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, IEC 60950-1, UL 60950-1 Second Edition, KCC, WEEE, ANATEL, UL-AR, EN 60825-1, AS/NZS 3548 Class A, CDR, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az, |
| Depth: | 35 cm |
| Device Type: | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type: | Rack-mountable 1U |
| Encryption Algorithm: | MD5, PKI, ESP, HMAC |
| Features: | Auto-negotiation, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Dying Gasp support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) s |
| Flash Memory: | 1 GB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Installed Qty: | 1 |
| Interfaces: | 24 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1000Base-X SFP ¦ 4 x 1/10Gbit LANSFP+ uplink/stacking ¦ 1 x USB Type A ¦ 1 x console RJ-45 |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 16K entries |
| MTBF: | 372,000 hours |
| Manufacturer: | Alcatel-Lucent Nokia |
| Max Operating Temperature: | 45 °C |
| Max Storage Temperature: | 85 °C |
| Max Supported Qty: | 2 |
| Max Units In A Stack: | 8 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Switching ASIC capacity: 168 Gbps ¦ Switching capacity: 168 Gbps ¦ Throughput: 125 Mpps ¦ Stacking capacity (each): 40 Gbps ¦ Stacking capacity (total): 320 Gbps ¦ Latency: < 4 µs |
| Ports: | 24 x 10/100/1000 + 2 x Gigabit SFP + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking) |
| Power Consumption Operational: | 36 Watt |
| Power Device: | Internal power supply |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| RAM: | 1 GB |
| Rack Mounting Kit: | Included |
| Remote Management Protocol: | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SCP, SFTP |
| Routing Protocol: | RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLDv2, MLD |
| Status Indicators: | Power, system, link/activity, virtual chassis |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC |
| Weight: | 4.7 kg |
| Width: | 44 cm |
| GPSR - economic actor: | Alcatel-Lucent, Deutschland, Stammheimer Str. 10 Haus 6, 3. OG, Kornwestheim, 70806, enterprise.solutions@al-enterprise.com |
|---|---|
| GPSR - product manufacturer: | Alcatel-Lucent, Deutschland, Stammheimer Str. 10 Haus 6, 3. OG, Kornwestheim, 70806, enterprise.solutions@al-enterprise.com |
| GPSR - EU responsible person: | Alcatel-Lucent, Deutschland, Stammheimer Str. 10 Haus 6, 3. OG, Kornwestheim, 70806, enterprise.solutions@al-enterprise.com |
| EU Data-Act-Url: | https://www.al-enterprise.com/de-de/rechtliches/compliance-regeln |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
