Aruba JL001A

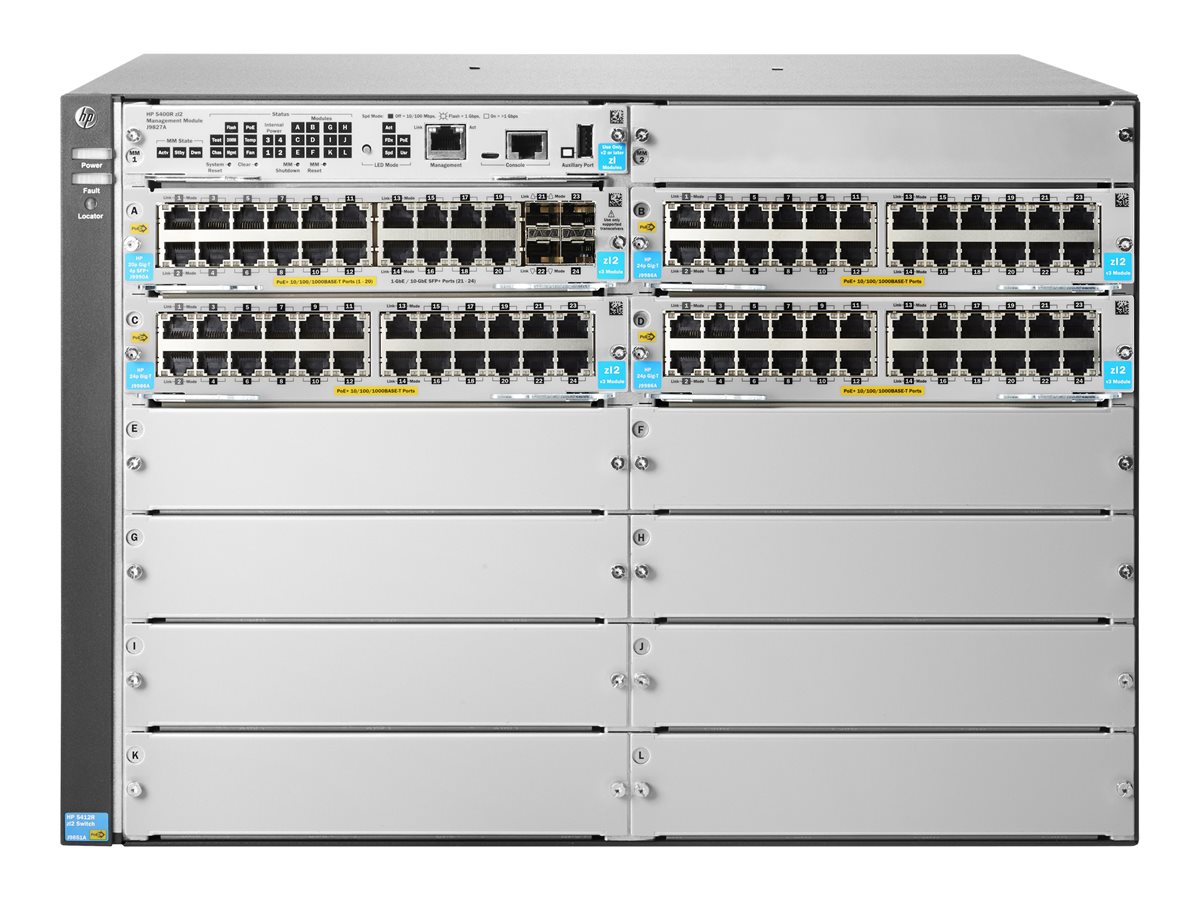

Aruba 5412R 92GT PoE+/4SFP+ v3 zl2 Swch

Skip image gallery

Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.

Aruba 5412R 92GT PoE+/4SFP+ v3 zl2 Swch
Authentication Method: Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Capacity: IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
Compliant Standards: FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, IEC 60950, EN 61000-3-3, E, IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Depth: 45.09 cm
Device Type: Switch - 92 ports - Managed
Enclosure Type: Rack-mountable 7U
Encryption Algorithm: SSL
Expansion Slots: 12 (total) / 8 (free) x Expansion Slot ¦ 1 (total) / 0 (free) x SD Memory Card
Features: Flow control, routing, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, IPv6 support, half duplex mode, full duplex mode, SNTP support, Spanning Tree Protocol (STP) support, R
Flash Memory: 1 GB
Height: 30.73 cm
Humidity Range Operating: 15 - 95% (non-condensing)
Humidity Range Storage: 15 - 95% (non-condensing)
Included Accessories: Fan tray
Installed Modules Qty (Max): 4 (installed) / 12 (max)
Interfaces: 92 x 1000Base-T RJ-45 PoE+ ¦ 4 x Gigabit / 10Gbit LANSFP+ ¦ 1 x RJ-45 management ¦ 1 x management
Jumbo Frame Support: Yes
MAC Address Table Size: 64K entries
Manufacturer: Aruba HPE
Max Operating Temperature: 45 °C
Max Storage Temperature: 70 °C
Max Supported Qty: 4
Min Operating Temperature: 0 °C
Min Storage Temperature: -40 °C
Performance: Routing/switching capacity: 1920 Gbps ¦ Throughput: up to 1142.8 Mpps ¦ Switching fabric bandwidth: 2030 Gbps
Ports: 92 x 10/100/1000 (PoE+) + 4 x Gigabit SFP / 10 Gigabit SFP+
Power Device: Internal power supply (not installed)
Power Over Ethernet (PoE): PoE+
Processor: 1 x Freescale P2020: 1.2 GHz
RAM: 4 GB DDR3 SDRAM
Rack Mounting Kit: Included
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SMON, CLI, XRMON
Routing Protocol: RIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, static IPv6 routing, MLDv2, MLD
Subtype: Gigabit Ethernet
Version: original
Weight: 20.5 kg
Width: 44.45 cm
GPSR - economic actor: Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com
GPSR - product manufacturer: Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com
GPSR - EU responsible person: Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com
EU Data-Act-Url: https://www.hpe.com/us/en/living-progress/governance/policies.html
Warnings: Warnings Switches International.pdf
Safety instructions: Safety instructions Switches International.pdf
Price and delivery information
Quantity:
1 available For special requests or large quantities, please contact us.

Delivery time: ca. 1-2 days The stated delivery times apply to shipping within Germany. Information on deliveries to other countries can be found here.

This item is delivered by a forwarding agent.
Product number: 884001-E2-616273
