Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
| Authentication Method: | RADIUS |
|---|---|
| Capacity: | MAC address entries: 16000 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32 |
| Compliant Standards: | EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, VCCI Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 6100, IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Depth: | 35.05 cm |

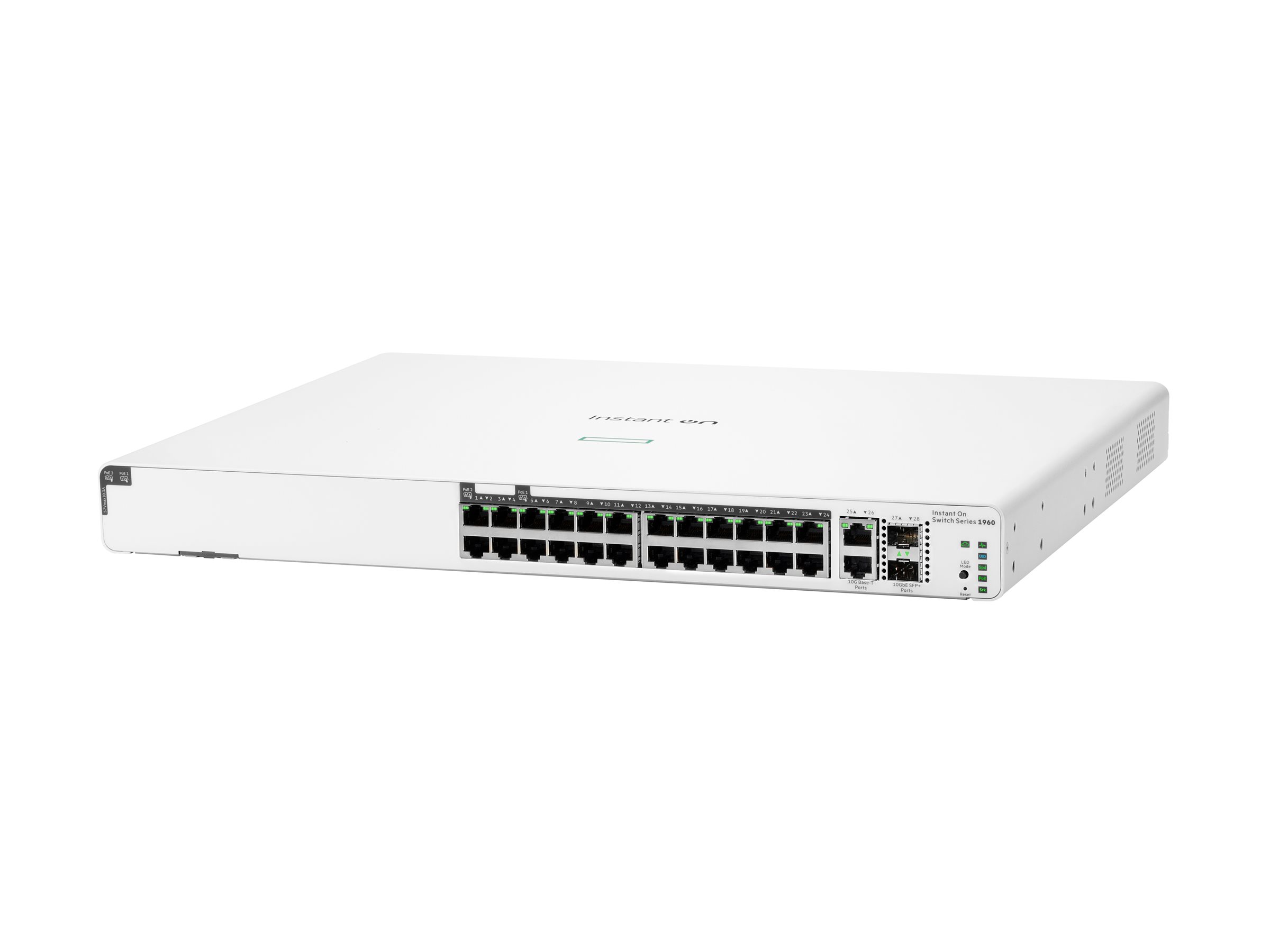

| Device Type: | Switch - 24 ports - L3 Lite - Managed - stackable |
| Enclosure Type: | Rack-mountable 1U |
| Features: | Flow control, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Trusted Platf |
| Height: | 4.395 cm |
| Humidity Range Operating: | 15 - 95% (40 °C) |
| Interfaces: | 24 x 10/100/1000 Base-T RJ-45 370 W ¦ 2 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+ ¦ 2 x 10GBase-T RJ-45 |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 16000 entries |
| MTBF: | 65.3 years |
| Manufacturer: | Aruba HPE |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Throughput: 95 Mpps ¦ Switching capacity: 128 Gbps ¦ Latency (100 Mbps): 4.4 µs ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.1 µs |
| PoE Budget: | 370 W |

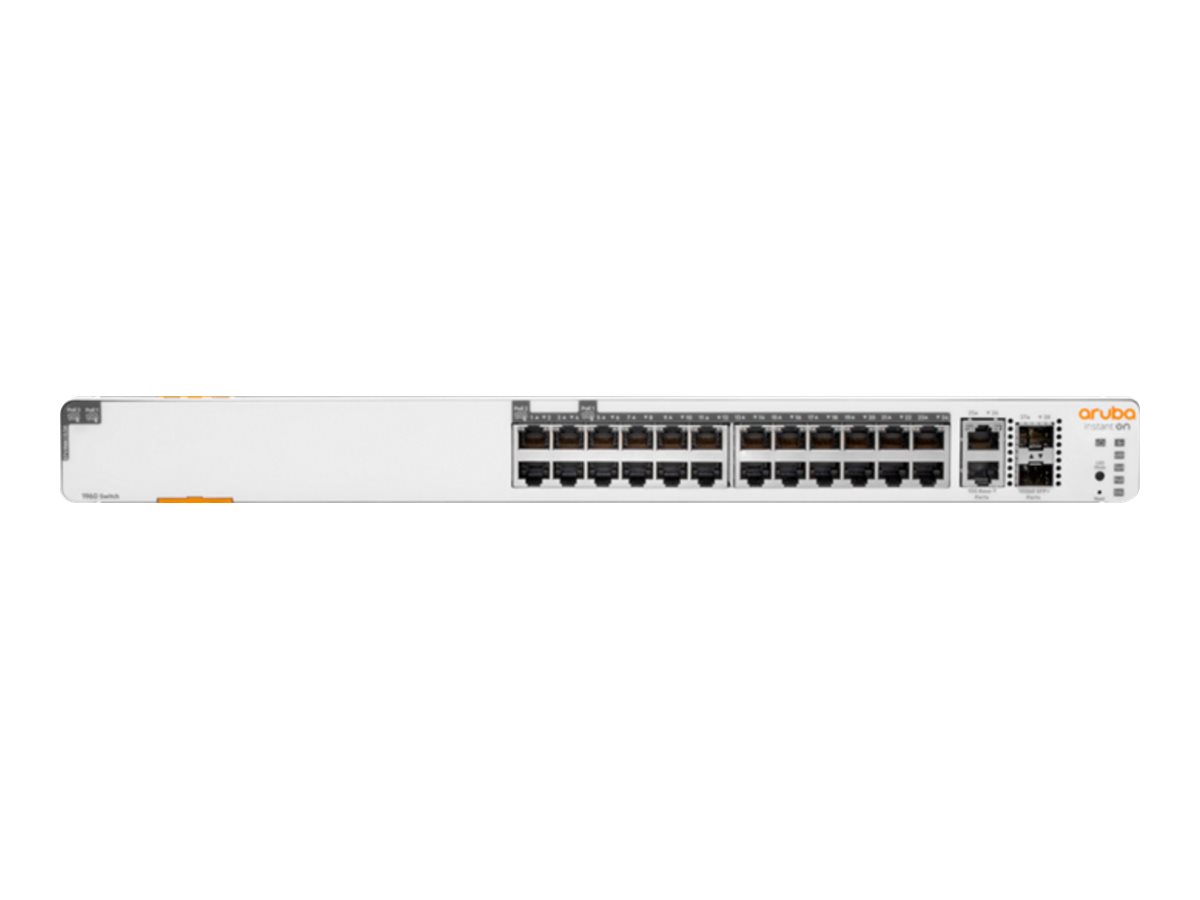

| Ports: | 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T |
| Power Device: | Internal power supply |
| Power Over Ethernet (PoE): | PoE |
| Pricing Type: | BTO |
| Processor: | 1 x ARM: 800 MHz |
| Remote Management Protocol: | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS |
| Routing Protocol: | Static IP routing |
| Status Indicators: | Port status, power |
| Subtype: | Gigabit Ethernet |
| Version: | original |

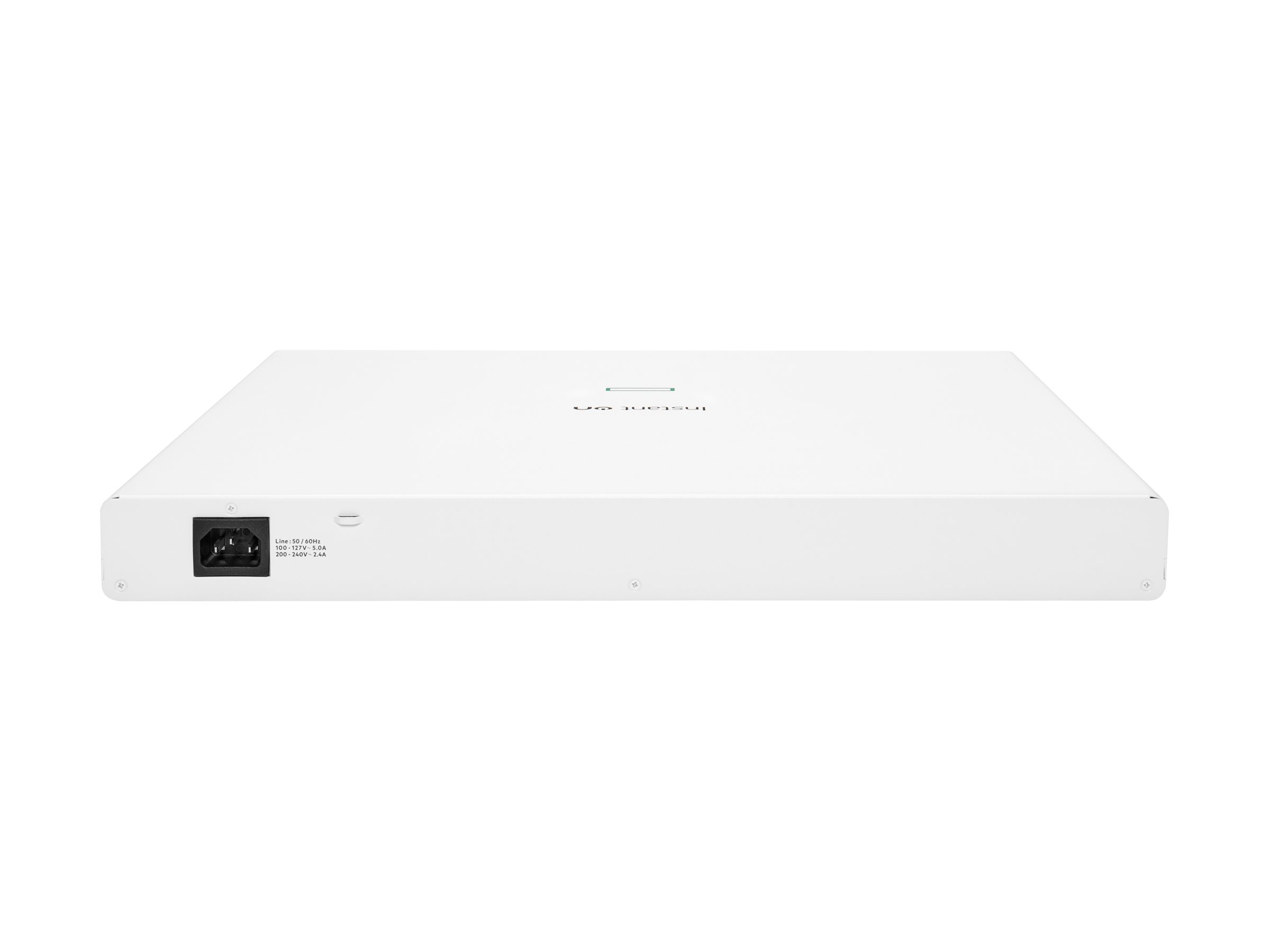

| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Weight: | 4.7 kg |
| Width: | 44.25 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
|---|---|
| GPSR - product manufacturer: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| EU Data-Act-Url: | https://www.hpe.com/us/en/living-progress/governance/policies.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
| Authentication Method: | RADIUS |
|---|---|
| Capacity: | MAC address entries: 16000 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32 |
| Compliant Standards: | EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, VCCI Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 6100, IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Depth: | 35.05 cm |
| Device Type: | Switch - 24 ports - L3 Lite - Managed - stackable |
| Enclosure Type: | Rack-mountable 1U |
| Features: | Flow control, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Trusted Platf |
| Height: | 4.395 cm |
| Humidity Range Operating: | 15 - 95% (40 °C) |
| Interfaces: | 24 x 10/100/1000 Base-T RJ-45 370 W ¦ 2 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+ ¦ 2 x 10GBase-T RJ-45 |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 16000 entries |
| MTBF: | 65.3 years |
| Manufacturer: | Aruba HPE |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Throughput: 95 Mpps ¦ Switching capacity: 128 Gbps ¦ Latency (100 Mbps): 4.4 µs ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.1 µs |
| PoE Budget: | 370 W |
| Ports: | 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T |
| Power Device: | Internal power supply |
| Power Over Ethernet (PoE): | PoE |
| Pricing Type: | BTO |
| Processor: | 1 x ARM: 800 MHz |
| Remote Management Protocol: | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS |
| Routing Protocol: | Static IP routing |
| Status Indicators: | Port status, power |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Weight: | 4.7 kg |
| Width: | 44.25 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
|---|---|
| GPSR - product manufacturer: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| EU Data-Act-Url: | https://www.hpe.com/us/en/living-progress/governance/policies.html |
