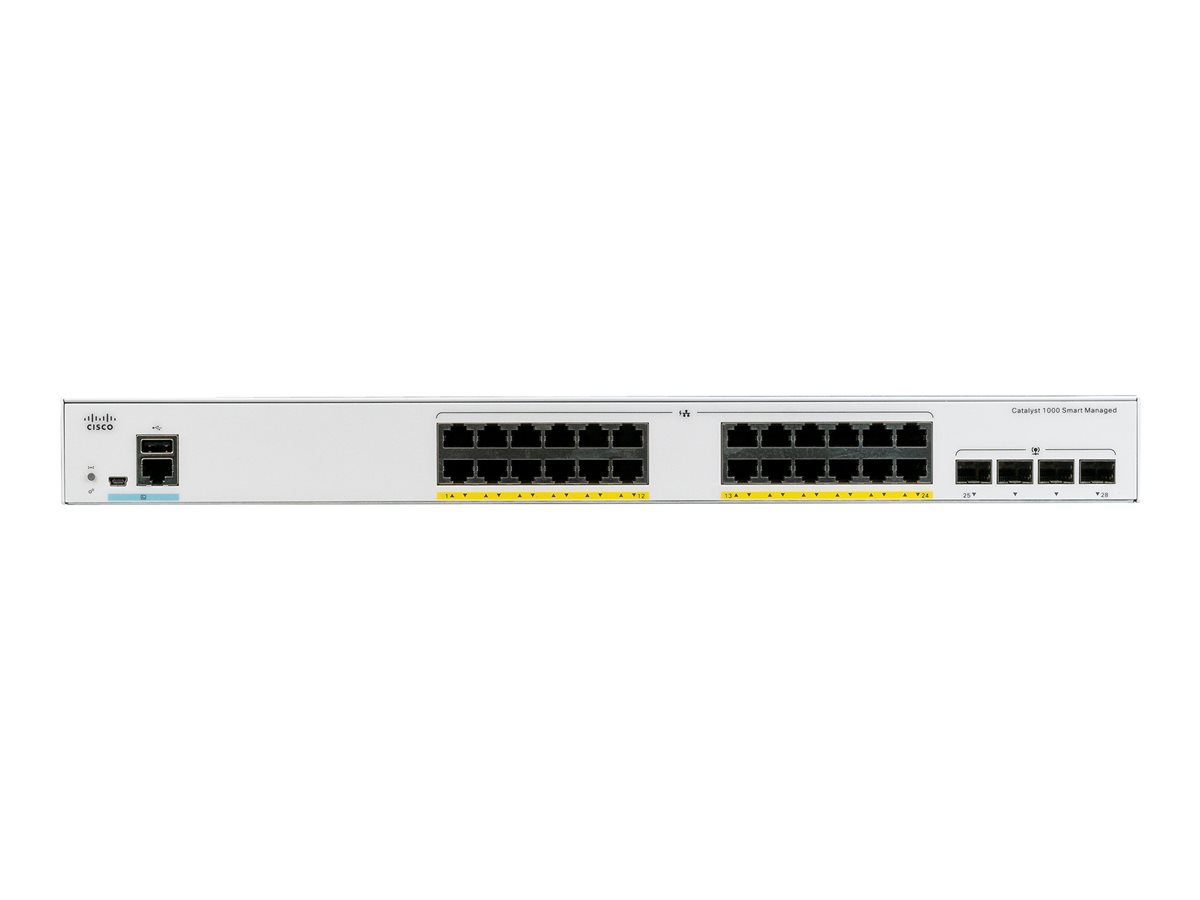

Cisco C1000-24FP-4X-L
Catalyst 1000 24port GE, Full POE, 4x10G SFP
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Catalyst 1000 24port GE, Full POE, 4x10G SFP
| Authentication Method: | Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|---|---|
| Capacity: | Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A |
| Depth: | 34.5 cm |
| Device Type: | Switch - 24 ports - Managed |
| Enclosure Type: | Rack-mountable |
| Features: | BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Ag |
| Flash Memory: | 256 MB |
| Height: | 4.39 cm |
| Humidity Range Operating: | 5 - 90% |
| Humidity Range Storage: | 5 - 95% |
| Installed Qty: | 1 |
| Interfaces: | 24 x 1000Base-T RJ-45 PoE+ - 15 W ¦ 4 x 10GBase-X SFP+ uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A |
| Jumbo Frame Support: | 10240 bytes |
| MTBF: | 2,026,793 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 50 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | -5 °C |
| Min Storage Temperature: | -25 °C |
| Performance: | Forwarding bandwidth: 64 Gbps ¦ Switching bandwidth: 128 Gbps ¦ Forwarding rate (64?byte L3 packets): 41.67 Mpps |
| PoE Budget: | 370 W |
| Ports: | 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
| Power Device: | Internal power supply |
| Power Over Ethernet (PoE): | PoE+ |
| Processor: | X ARM: 800 MHz |
| RAM: | 512 MB |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
| Routing Protocol: | IGMP, MLDv2, MLD, MSTP, RSTP, STP |
| Status Indicators: | Status |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Weight: | 4.6 kg |
| Width: | 44.5 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
