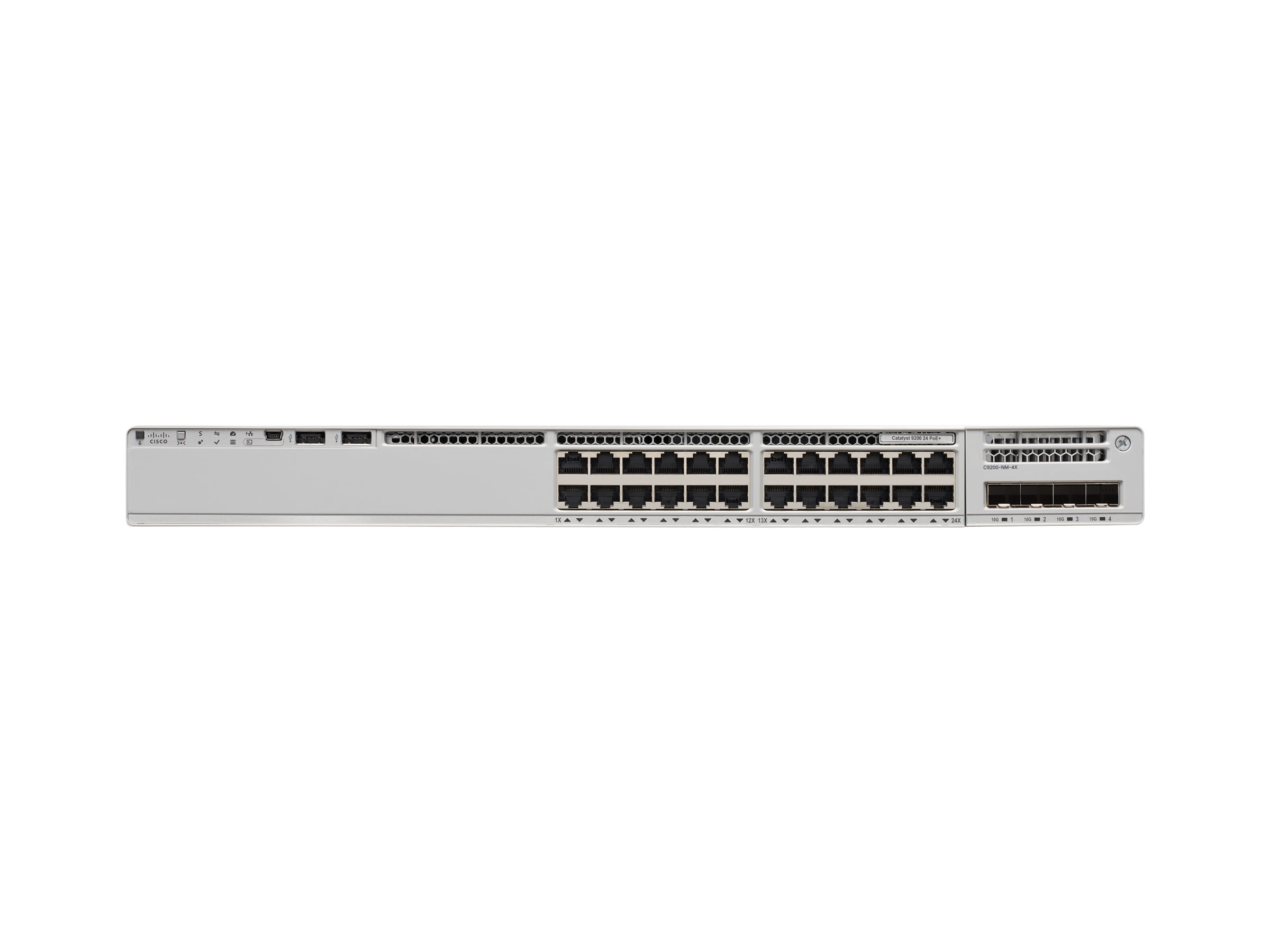

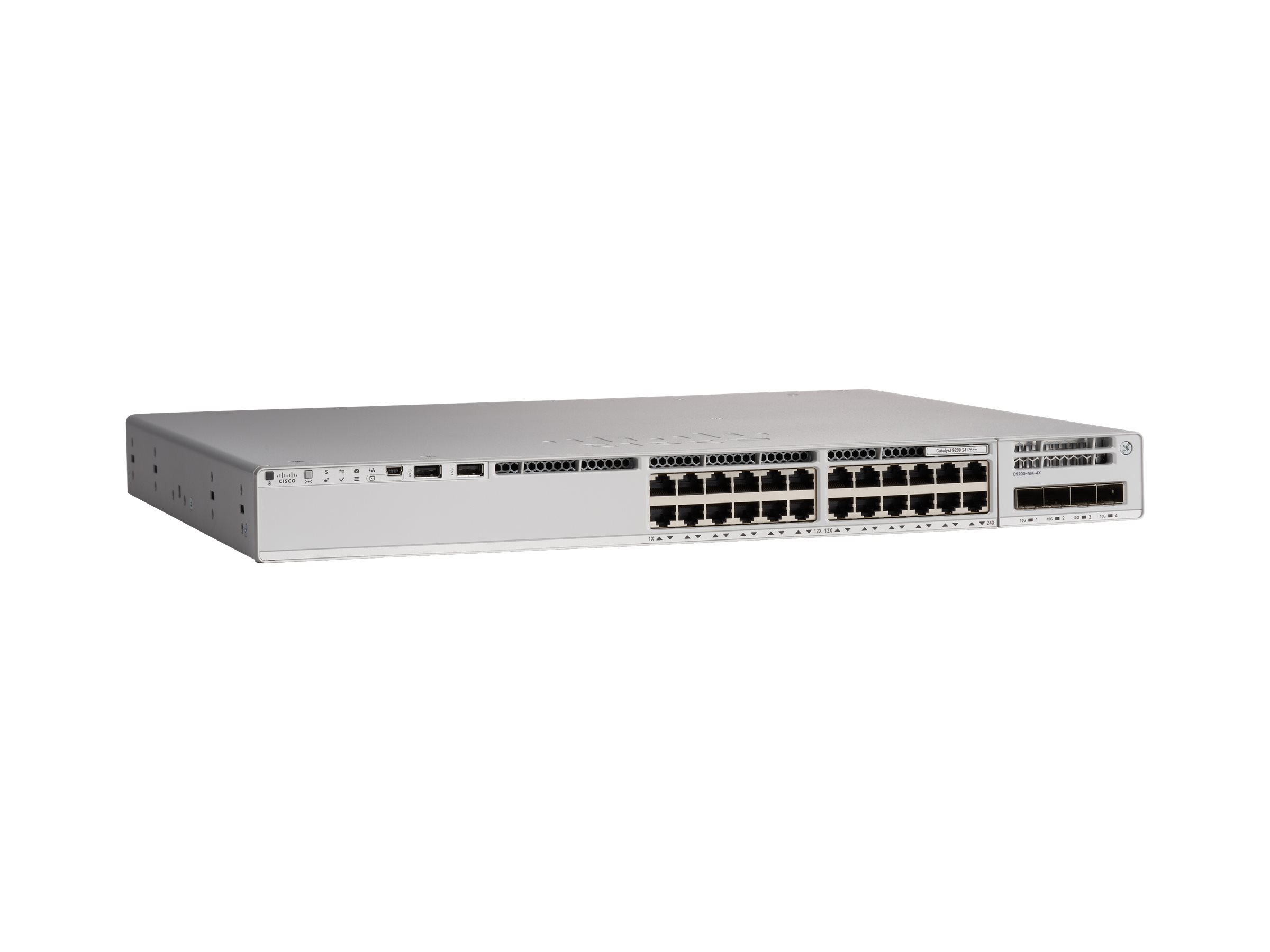

Cisco Catalyst 9200 - Enhanced VRF, Network Advantage - switch - L3 - smart - 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ - rack-mountable - PoE+
| Built-in Devices: | RFID tag |
|---|---|
| Capacity: | Virtual networks: 4 ¦ IPv4 routing table entries: 4000 ¦ IPv6 routing table entries: 2000 ¦ ACL scale entries: 1600 ¦ Packet buffer size: 6 MB ¦ VLAN IDs: 4096 ¦ Switched virtual interfaces (SVIs): 1000 |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz, Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, E |
| Depth: | 44.5 cm |
| Device Type: | Switch - 24 ports - L3 - smart - stackable |
| Enclosure Type: | Rack-mountable |
| Encryption Algorithm: | 128-bit AES |
| Features: | Cisco StackWise Technology, Virtual Routing and Forwarding (VRF), Flexible NetFlow (FNF), MACsec support, built-in ASIC, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Location ID Separation Protocol (LISP), Blue Beacon LED, Security Gro |
| Flash Memory: | 4 GB |
| Height: | 35 cm |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Humidity Range Storage: | 5 - 90% (non-condensing) |
| Interfaces: | 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 4 x 10GBase-X SFP+ |
| Jumbo Frame Support: | 9198 bytes |
| MAC Address Table Size: | 32000 entries |
| MTBF: | 422,310 hours |
| Manufacturer: | Cisco Meraki |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Storage Temperature: | -40 °C |
| Performance: | Stacking bandwidth: 160 Gbps ¦ Switching bandwidth: 128 Gbps ¦ Forwarding rate: 190.4 Mpps |
| Ports: | 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Device: | Internal power supply - hot-plug |
| Power Over Ethernet (PoE): | PoE+ |
| Power Redundancy: | Optional |
| RAM: | 4 GB |
| Remote Management Protocol: | NETCONF, RESTCONF |
| Routing Protocol: | OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SSM, MSDP, policy-based routing (PBR), RIPng |
| Software Included: | Cisco Network Advantage |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 100-240 V (50 - 60 Hz) |
| Weight: | 5.5 kg |
| Width: | 4.4 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
