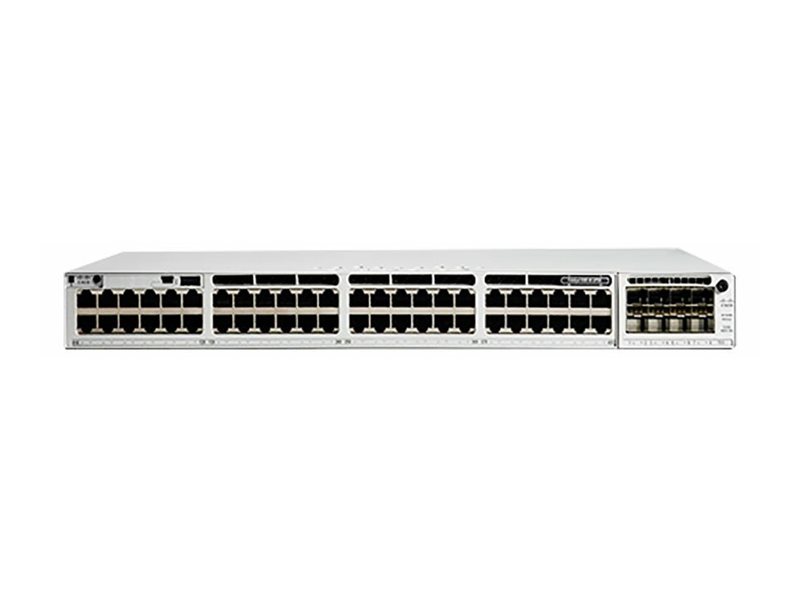

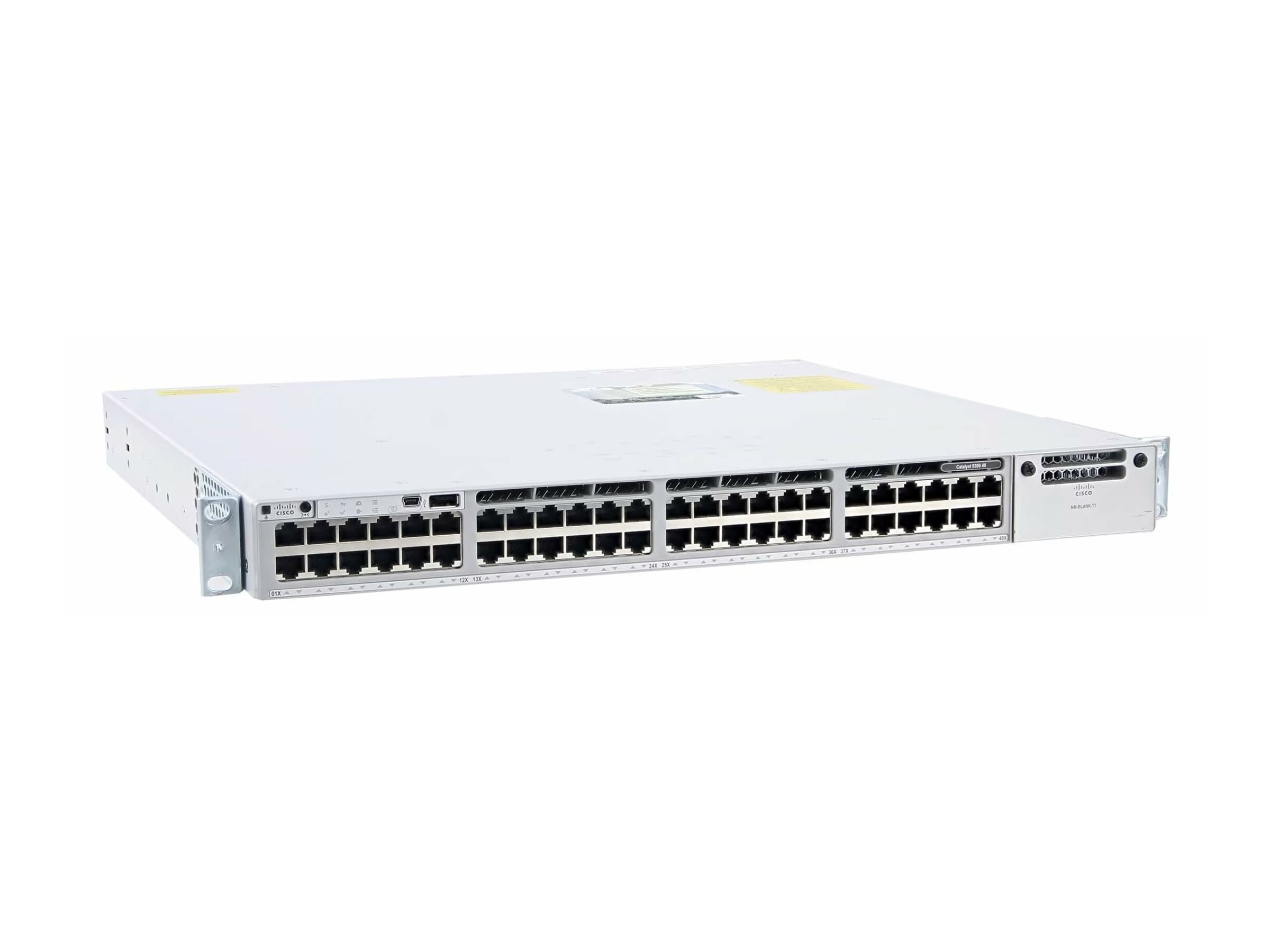

Cisco C9300-48P-A
Catalyst 9300 48-port PoE+, Network Advantage
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Catalyst 9300 48-port PoE+, Network Advantage
| Capacity: | IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000 |
|---|---|
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Cla |
| Depth: | 44.5 cm |
| Device Type: | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type: | Rack-mountable 1U |
| Encryption Algorithm: | 128-bit AES |
| Expansion Slots: | 1 (total) / 1 (free) x Expansion Slot |
| Features: | DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Ser |
| Flash Memory: | 16 GB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Humidity Range Storage: | 5 - 90% (non-condensing) |
| Important product information: | The DNA licence is not included in the scope of delivery and must be ordered separately. Please contact your sales manager. |
| Installed Qty: | 1 |
| Interfaces: | 48 x 1000Base-T RJ-45 PoE+ ¦ 1 x USB 2.0 |
| Jumbo Frame Support: | 9198 bytes |
| MAC Address Table Size: | 32000 entries |
| MTBF: | 277,770 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 45 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | -5 °C |
| Min Storage Temperature: | -40 °C |
| OS Required: | Cisco IOS Universal |
| Performance: | Switching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 190.48 Mpps |
| PoE Budget: | 437 W |
| Ports: | 48 x 10/100/1000 (PoE+) |
| Power Device: | Internal power supply - hot-plug |
| Power Over Ethernet (PoE): | PoE+ |
| Power Provided: | 715 Watt |
| Power Redundancy: | Optional |
| RAM: | 8 GB |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Routing Protocol: | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng |
| Status Indicators: | Status |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Weight: | 7.59 kg |
| Width: | 44.5 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
Important product information
The DNA licence is not included in the scope of delivery and must be ordered separately. Please contact your sales manager.
Catalyst 9300 48-port PoE+, Network Advantage
| Capacity: | IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000 |
|---|---|
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Cla |
| Depth: | 44.5 cm |
| Device Type: | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type: | Rack-mountable 1U |
| Encryption Algorithm: | 128-bit AES |
| Expansion Slots: | 1 (total) / 1 (free) x Expansion Slot |
| Features: | DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Ser |
| Flash Memory: | 16 GB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Humidity Range Storage: | 5 - 90% (non-condensing) |
| Important product information: | The DNA licence is not included in the scope of delivery and must be ordered separately. Please contact your sales manager. |
| Installed Qty: | 1 |
| Interfaces: | 48 x 1000Base-T RJ-45 PoE+ ¦ 1 x USB 2.0 |
| Jumbo Frame Support: | 9198 bytes |
| MAC Address Table Size: | 32000 entries |
| MTBF: | 277,770 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 45 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | -5 °C |
| Min Storage Temperature: | -40 °C |
| OS Required: | Cisco IOS Universal |
| Performance: | Switching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 190.48 Mpps |
| PoE Budget: | 437 W |
| Ports: | 48 x 10/100/1000 (PoE+) |
| Power Device: | Internal power supply - hot-plug |
| Power Over Ethernet (PoE): | PoE+ |
| Power Provided: | 715 Watt |
| Power Redundancy: | Optional |
| RAM: | 8 GB |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Routing Protocol: | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng |
| Status Indicators: | Status |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Weight: | 7.59 kg |
| Width: | 44.5 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
