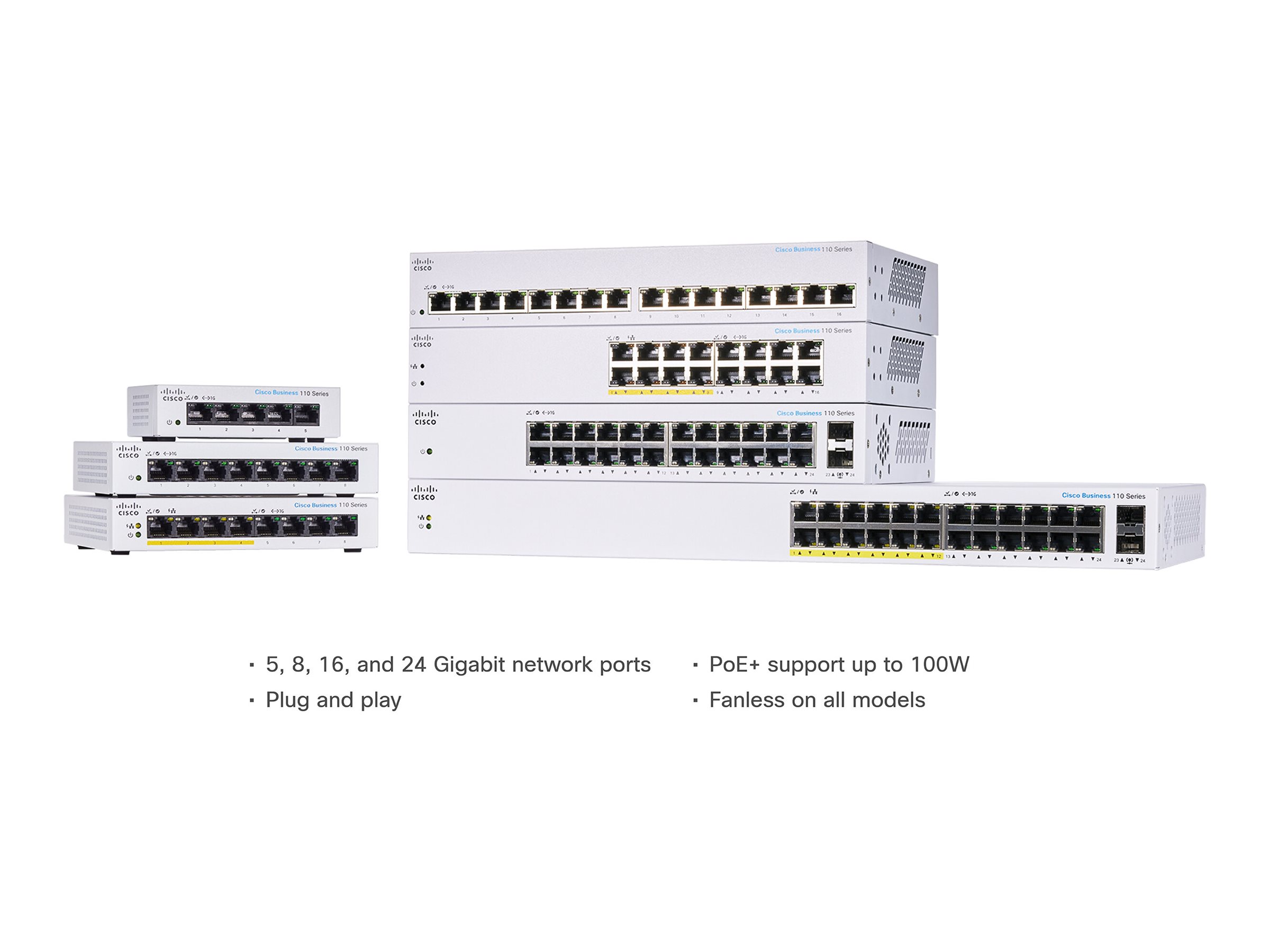

Cisco CBS110-5T-D-NA
Cisco Business 110 Series 110-5T-D - Switch - unmanaged - 5 x 10/100/1000 - desktop, rack-mountable, wall-mountable - DC power
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Cisco Business 110 Series 110-5T-D - Switch - unmanaged - 5 x 10/100/1000 - desktop, rack-mountable, wall-mountable - DC power
| Capacity: | Buffer capacity (MB): 1 |
|---|---|
| Compliant Standards: | FCC Class B certified, UL 60950, CSA 22.2, FCC CFR47 Part 15 A |
| Depth: | 7.5 cm |
| Device Type: | Switch - 5 ports - unmanaged |
| Enclosure Type: | Desktop, rack-mountable, wall-mountable |
| Features: | Flow control, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), Cable Diagnostics Function, fanless, Energy Efficient Ethernet, Head-of-line (HOL) blocking, Weighted Round Robin (WRR), loopback detection, security slot (Kensington security lock comp |
| Flash Memory: | 8 MB |
| Height: | 3 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Humidity Range Storage: | 5 - 90% (non-condensing) |
| Included Accessories: | Mounting kit |
| Interfaces: | 5 x 10/100/1000 Base-T RJ-45 |
| Jumbo Frame Support: | 9216 bytes |
| Localisation: | North America |
| MAC Address Table Size: | 2K entries |
| MTBF: | 4,243,002 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -20 °C |
| Performance: | Forwarding performance (64-byte packet size): 7.4 Mpps ¦ Switching capacity: 10 Gbps |
| Ports: | 5 x 10/100/1000 |
| Power Consumption Operational: | 2.74 Watt |
| Power Provided: | 1 A |
| Processor: | X ARM: 400 MHz |
| RAM: | 64 MB |
| Status Indicators: | Power, link/activity |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | DC 12 V |
| Weight: | 230 g |
| Width: | 11 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
