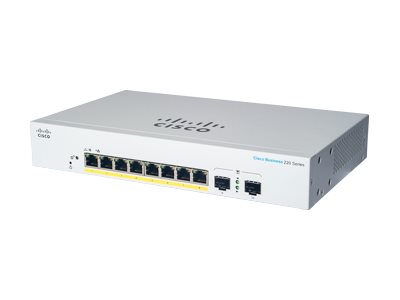

Cisco CBS220-8P-E-2G
Cisco Business 220 Series CBS220-8P-E-2G - Switch - smart - 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink) - rack-mountable - PoE+ (67 W)
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Cisco Business 220 Series CBS220-8P-E-2G - Switch - smart - 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink) - rack-mountable - PoE+ (67 W)
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
|---|---|
| Capacity: | MSTP instances: 16 ¦ VLANs supported: 256 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 4.1 |
| Compliant Standards: | C-Tick, UL 60950, CSA 22.2, FCC CFR47 Part 15 A |
| Depth: | 17 cm |
| Device Type: | Switch - 10 ports - smart |
| Enclosure Type: | Rack-mountable |
| Encryption Algorithm: | SSL |
| Features: | BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Access Control List (ACL) support, Quality of Service (QoS), Cabl |
| Flash Memory: | 64 MB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Humidity Range Storage: | 10 - 90% (non-condensing) |
| Interfaces: | 8 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-X SFP uplink |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 8192 entries |
| MTBF: | 315,326 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 50 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -20 °C |
| Performance: | Forwarding performance (64-byte packet size): 14.88 Mpps ¦ Switching capacity: 20 Gbps |
| PoE Budget: | 65 W |
| Ports: | 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink) |
| Power Consumption Operational: | 81.6 Watt |
| Power Device: | External power adapter |
| Power Over Ethernet (PoE): | PoE+ |
| RAM: | 256 MB |
| Rack Mounting Kit: | Included |
| Remote Management Protocol: | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
| Routing Protocol: | IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP |
| Status Indicators: | System, link/activity/speed |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Weight: | 1.18 kg |
| Width: | 27.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
