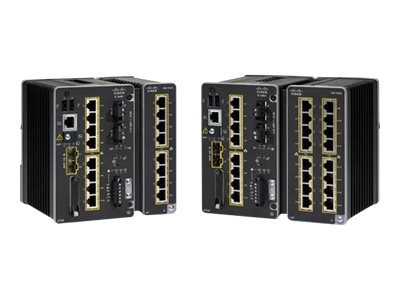

Cisco IE-3400-8T2S-A
Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Modular, NA.
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Modular, NA.
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+ |
|---|---|
| Built-in Devices: | SD card reader |
| Capacity: | Queues: 8 ¦ IGMP groups: 1000 ¦ VLAN IDs: 256 ¦ STP instances: 128 ¦ ACL: 1500 |
| Compliant Standards: | EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, |
| Depth: | 13.5 cm |
| Device Type: | Switch - 10 ports - Managed |
| Electric Current Required: | 5.4 A |
| Enclosure Type: | DIN rail mountable |
| Expansion Slots: | 1 (total) / 1 (free) x SD Memory Card |
| Features: | DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping, Access Control List (ACL |
| Flash Memory: | 1.5 GB |
| Height: | 15.2 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Humidity Range Storage: | 5 - 95% (non-condensing) |
| Interfaces: | 8 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1000Base-X SFP ¦ 1 x serial (RS-232) RJ-45 ¦ 1 x mini-USB Type B ¦ 2 x alarm ¦ 1 x alarm |
| MAC Address Table Size: | 8K entries |
| MTBF: | 549,808 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 70 °C |
| Max Storage Temperature: | 85 °C |
| Min Operating Temperature: | -40 °C |
| Min Storage Temperature: | -40 °C |
| Ports: | 8 x 10/100/1000 + 2 x Gigabit SFP |
| Power Consumption Operational: | 39 Watt |
| Power Device: | Internal power supply |
| Power Redundancy: | Yes |
| RAM: | 4 GB |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SCP, NTP |
| Routing Protocol: | IGMPv2, IGMP, IGMPv3, MSTP, RSTP, STP |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | DC 9.6 - 60 V |
| Weight: | 1.7 kg |
| Width: | 9.14 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
