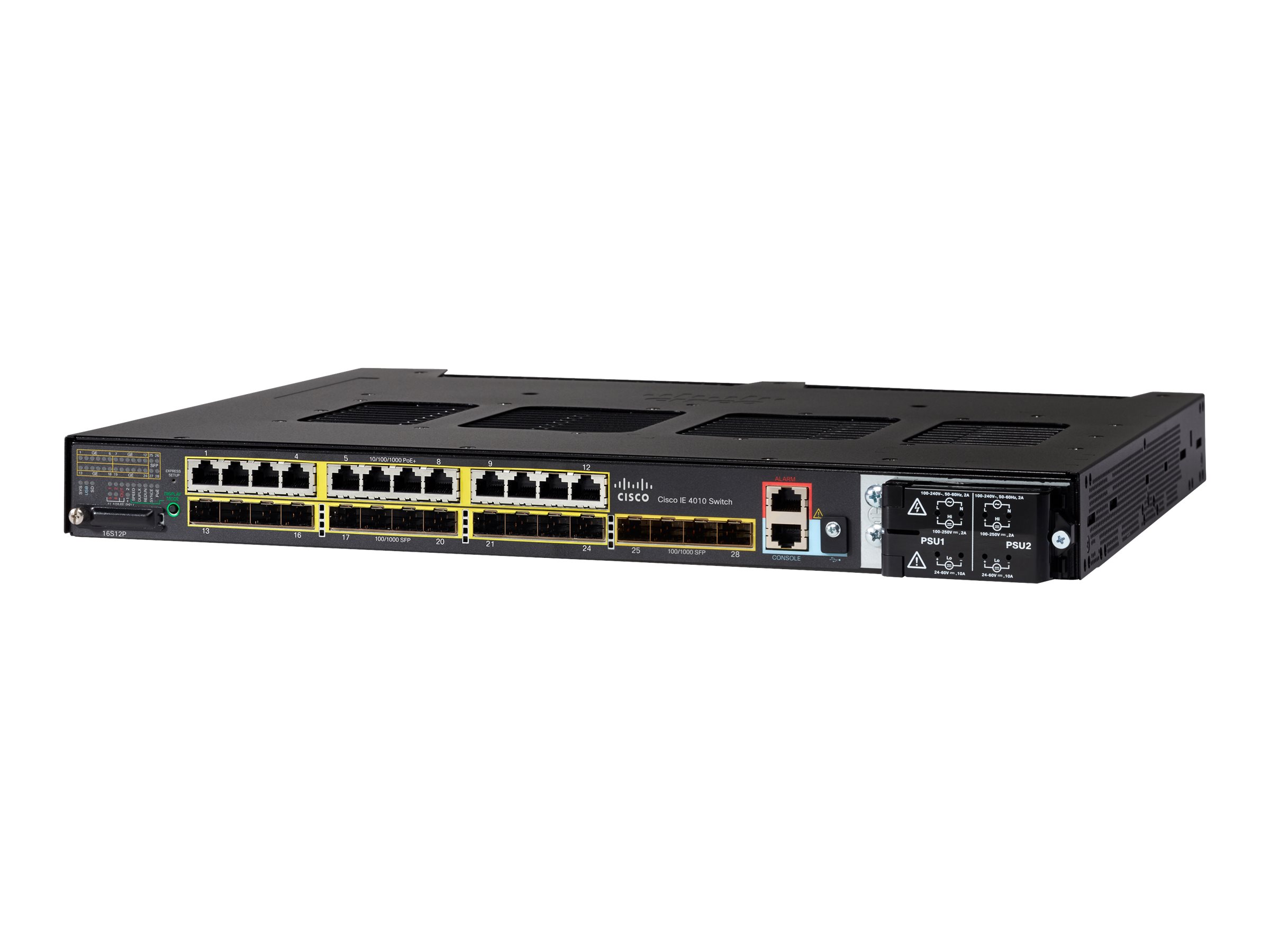

Cisco IE-4010-16S12P
IE4010 16x1G SFP and 12x10/100/1000 LAN BASE
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
IE4010 16x1G SFP and 12x10/100/1000 LAN BASE
| Authentication Method: | RADIUS, TACACS |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 1000 ¦ IGMP groups: 1000 ¦ NAT translations: 128 |
| Compliant Standards: | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN55024, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, FIPS 140-2, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-3 |
| Depth: | 35.6 cm |
| Device Type: | Switch - 28 ports - Managed |
| Enclosure Type: | DIN rail mountable 1U |
| Encryption Algorithm: | FIPS 140-2 |
| Expansion Slots: | 1 (total) / 0 (free) x SD Memory Card |
| Features: | NAT support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunnelling, DHCP sn |
| Flash Memory: | 128 MB |
| Height: | 4.45 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Included Accessories: | 1 GB SD card |
| Interfaces: | 12 x 1000Base-T RJ-45 ¦ 4 x SFP uplink ¦ 1 x console RJ-45 ¦ 1 x mini-USB Type B ¦ 12 x 1000Base-TX SFP |
| MAC Address Table Size: | 16K entries |
| MTBF: | 415,160 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 75 °C |
| Max Storage Temperature: | 85 °C |
| Min Operating Temperature: | -40 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Forwarding bandwidth: 28 Gbps ¦ Switching bandwidth: 56 Gbps |
| Ports: | 12 x 10/100/1000 (PoE+) + 4 x 10/100/1000/SFP (uplink) + 12 x 10/100/1000/SFP |
| RAM: | 1 GB |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 2, SNMP, RMON, Telnet, SNMP 3, HTTP, SSH, CLI, SCP |
| Routing Protocol: | IGMPv2, IGMP, IGMPv3, static IPv4 routing |
| Software Included: | Cisco IOS LAN Base |
| Subtype: | Gigabit Ethernet |
| TAA Compliant: | Yes |
| Version: | original |
| Weight: | 5.78 kg |
| Width: | 44.5 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
IE4010 16x1G SFP and 12x10/100/1000 LAN BASE
| Authentication Method: | RADIUS, TACACS |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 1000 ¦ IGMP groups: 1000 ¦ NAT translations: 128 |
| Compliant Standards: | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN55024, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, FIPS 140-2, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-3 |
| Depth: | 35.6 cm |
| Device Type: | Switch - 28 ports - Managed |
| Enclosure Type: | DIN rail mountable 1U |
| Encryption Algorithm: | FIPS 140-2 |
| Expansion Slots: | 1 (total) / 0 (free) x SD Memory Card |
| Features: | NAT support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunnelling, DHCP sn |
| Flash Memory: | 128 MB |
| Height: | 4.45 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Included Accessories: | 1 GB SD card |
| Interfaces: | 12 x 1000Base-T RJ-45 ¦ 4 x SFP uplink ¦ 1 x console RJ-45 ¦ 1 x mini-USB Type B ¦ 12 x 1000Base-TX SFP |
| MAC Address Table Size: | 16K entries |
| MTBF: | 415,160 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 75 °C |
| Max Storage Temperature: | 85 °C |
| Min Operating Temperature: | -40 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Forwarding bandwidth: 28 Gbps ¦ Switching bandwidth: 56 Gbps |
| Ports: | 12 x 10/100/1000 (PoE+) + 4 x 10/100/1000/SFP (uplink) + 12 x 10/100/1000/SFP |
| RAM: | 1 GB |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 2, SNMP, RMON, Telnet, SNMP 3, HTTP, SSH, CLI, SCP |
| Routing Protocol: | IGMPv2, IGMP, IGMPv3, static IPv4 routing |
| Software Included: | Cisco IOS LAN Base |
| Subtype: | Gigabit Ethernet |
| TAA Compliant: | Yes |
| Version: | original |
| Weight: | 5.78 kg |
| Width: | 44.5 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
