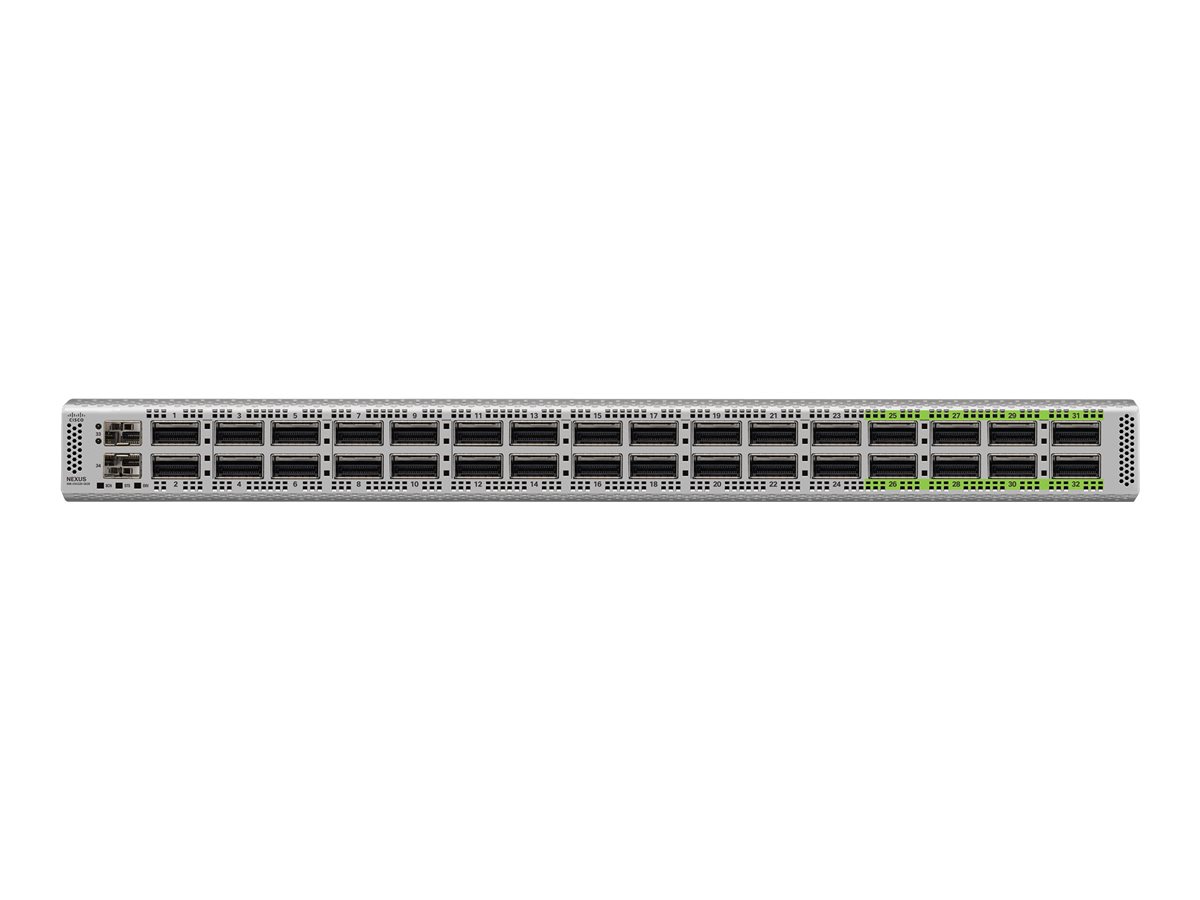

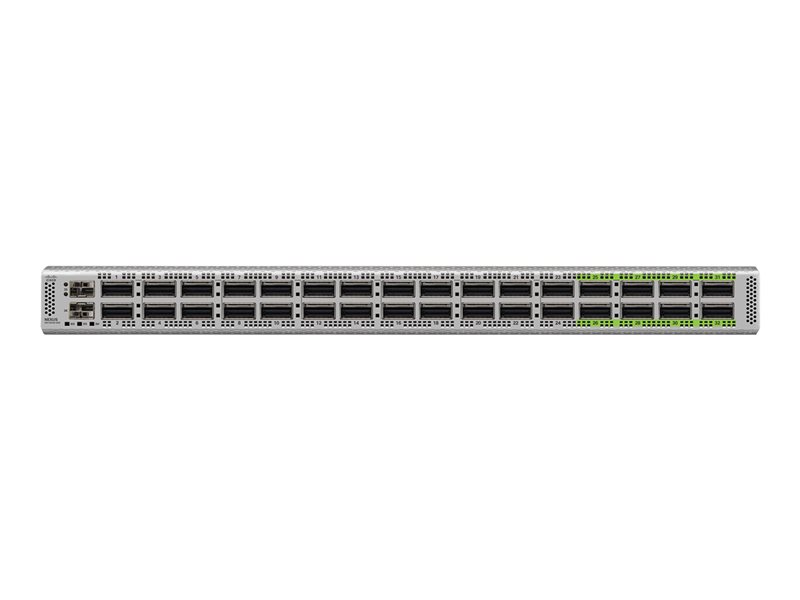

Cisco N9K-C9332D-GX2B
Nexus 9300 Series, 32p 400G QSFP-DD
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Nexus 9300 Series, 32p 400G QSFP-DD
| Built-in Devices: | 128 GB SSD |
|---|---|
| Capacity: | Longest prefix match (LPM) entries (IPv4): 2000000 ¦ Host table entries (IPv4): 2000000 ¦ Multicast routes: 256000 ¦ IGMP groups: 32000 ¦ ACL entries (ingress): 24000 ¦ ACL entries (egress): 12000 ¦ Virtual interfaces (VLANs): 4096 ¦ VRF instances: 16000 |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, RoHS, GB 4943, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22 Class A, EN 55022 Class A, FCC CFR47 Par |
| Depth: | 58.1 cm |
| Device Type: | Switch - 32 ports - L3 |
| Enclosure Type: | Rack-mountable 1U |
| Features: | MPLS support, Spanning Tree Protocol (STP) support, PIM-SM snooping, Data Center Bridging Exchange (DCBX) support, Access Control List (ACL) support, RDMA support, EIGRP Stub Routing, Equal-Cost Multipath (ECMP), Data Center Bridging (DCB), Multicast Sour |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 85% (non-condensing) |
| Interfaces: | 32 x 400Gbit LAN QSFP-DD ¦ 2 x 1/10Gbit LAN SFP+ ¦ 1 x serial (RS-232) ¦ 1 x USB ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x management SFP |
| MAC Address Table Size: | 256K entries |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Throughput: 12.8 Tbps ¦ Buffer memory: 120 Mbps |
| Ports: | 32 x 400 Gigabit QSFP-DD |
| Power Consumption Operational: | 638 Watt |
| Power Device: | Internal power supply - hot-plug |
| RAM: | 32 GB |
| Routing Protocol: | OSPF, RIP-2, BGP, EIGRP, PIM-SM, static IP routing, MSDP, static IPv6 routing, MPLS, RSVP |
| Subtype: | 400 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 100-240 V (50 - 60 Hz) |
| Weight: | 12.7 kg |
| Width: | 43.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
