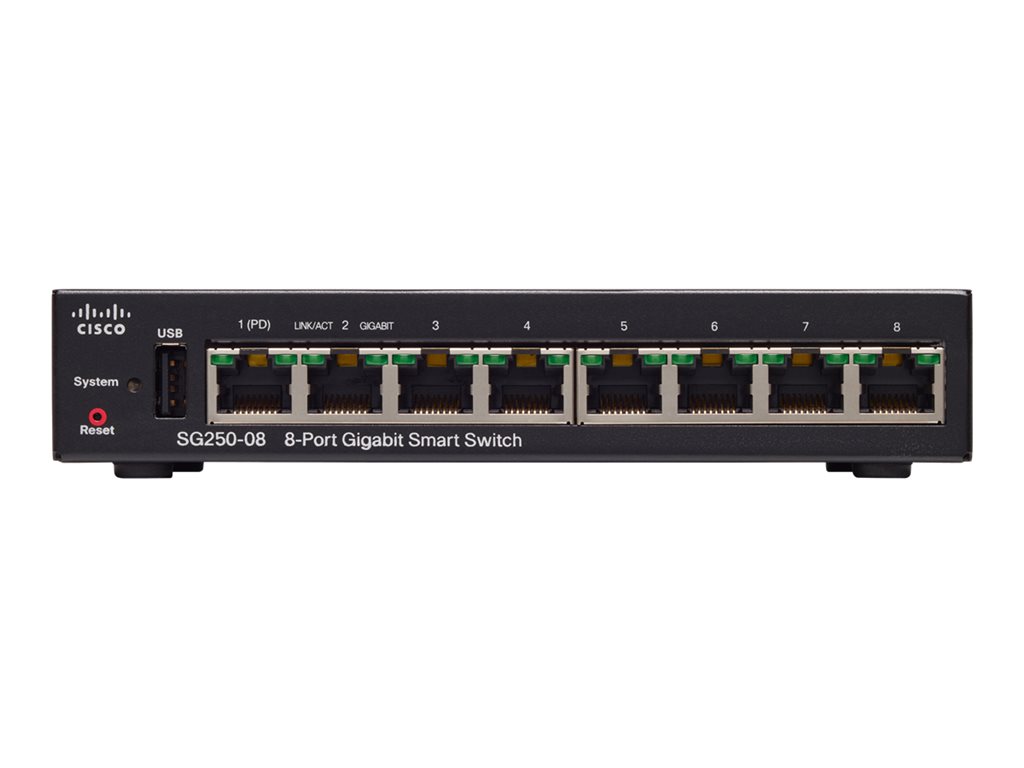

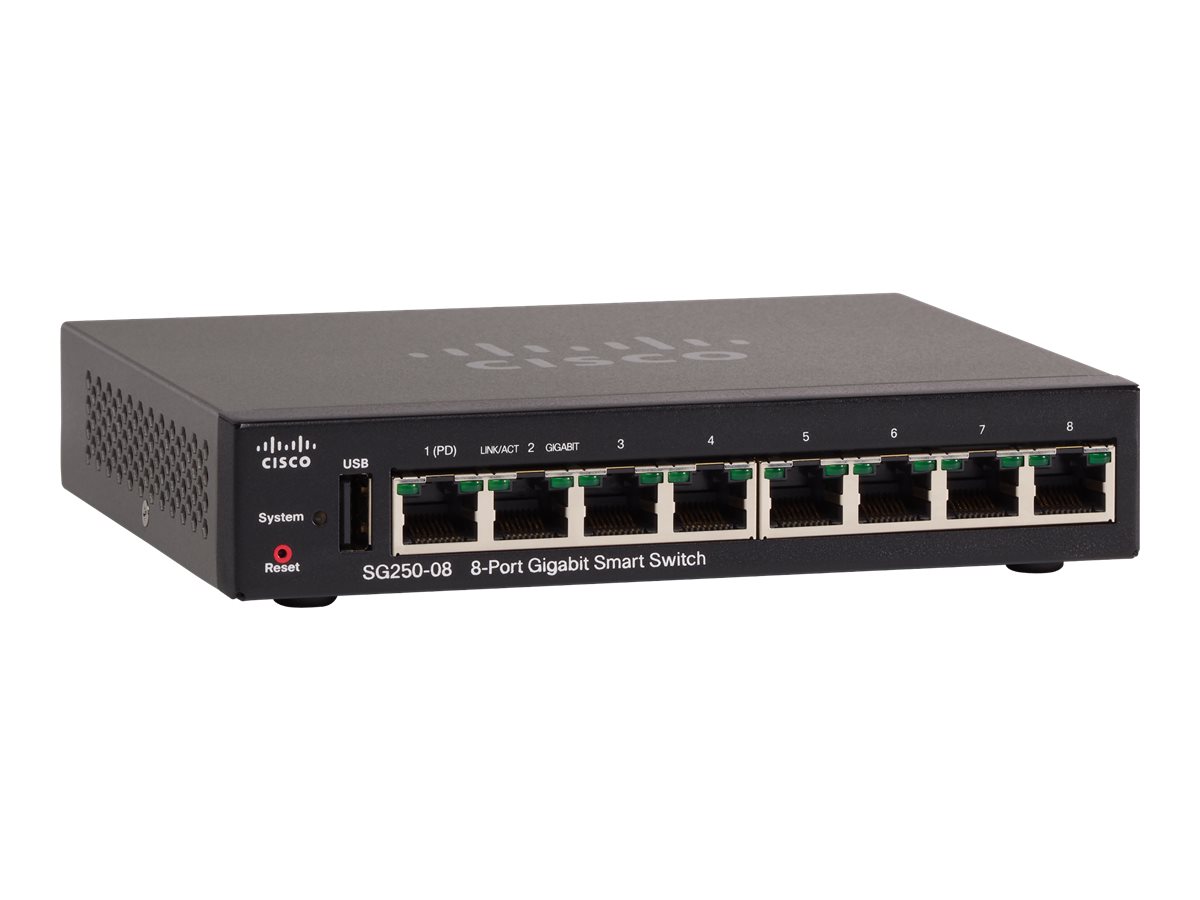

Cisco SG250-08-K9-EU
SG250-08 8-Port Gigabit
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
SG250-08 8-Port Gigabit
| Authentication Method: | Secure Shell (SSH), RADIUS, Secure Shell v.2 (SSH2) |
|---|---|
| Capacity: | MSTP instances: 8 ¦ Active VLANs: 256 ¦ ACL rules: 512 ¦ Priority queues: 8 |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, UL 60950, FCC Part 15 A, CSA 22.2, USGv6 |
| Depth: | 12.8 cm |
| Device Type: | Switch - 8 ports - L3 - smart |
| Enclosure Type: | Desktop |
| Encryption Algorithm: | SSL |
| Features: | PoE powered |
| Features: | Flow control, DHCP support, BOOTP support, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) su |
| Flash Memory: | 256 MB |
| Height: | 3 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Humidity Range Storage: | 10 - 90% (non-condensing) |
| Interfaces: | 8 x 1000Base-T RJ-45 PoE input ¦ 1 x USB management ¦ 1 x console RJ-45 |
| Jumbo Frame Support: | 9KB |
| Localisation: | United Arab Emirates, Indonesia, Israel, South Africa, Vietnam, Ukraine, Egypt, Thailand, India, Philippines, Korea, Russia, Europe, Turkey |
| MAC Address Table Size: | 8K entries |
| MTBF: | 1,305,509 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 50 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -20 °C |
| Performance: | Switching capacity: 16 Gbps ¦ Forwarding performance (64-byte packet size): 11.9 Mpps |
| Ports: | 8 x 10/100/1000 |
| Power Consumption Operational: | 7.6 Watt |
| Power Device: | External power adapter |
| Processor: | X ARM: 800 MHz |
| RAM: | 512 MB |
| Remote Management Protocol: | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP |
| Routing Protocol: | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, CIDR |
| Status Indicators: | System, link/activity/speed |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Weight: | 540 g |
| Width: | 16 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
