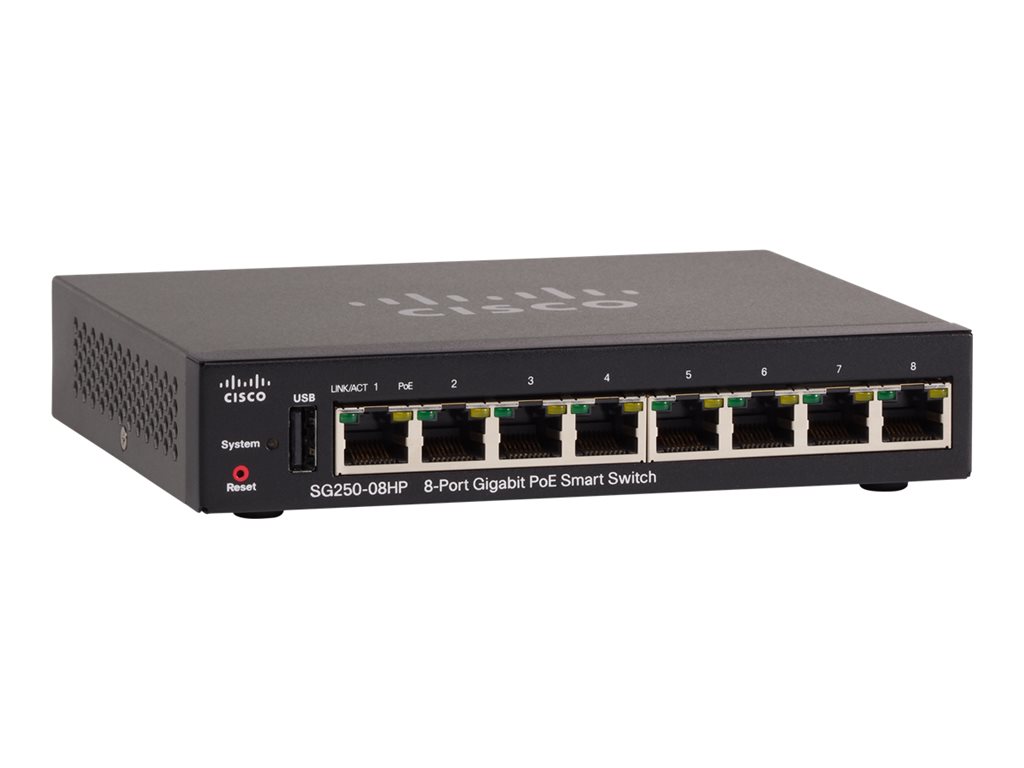

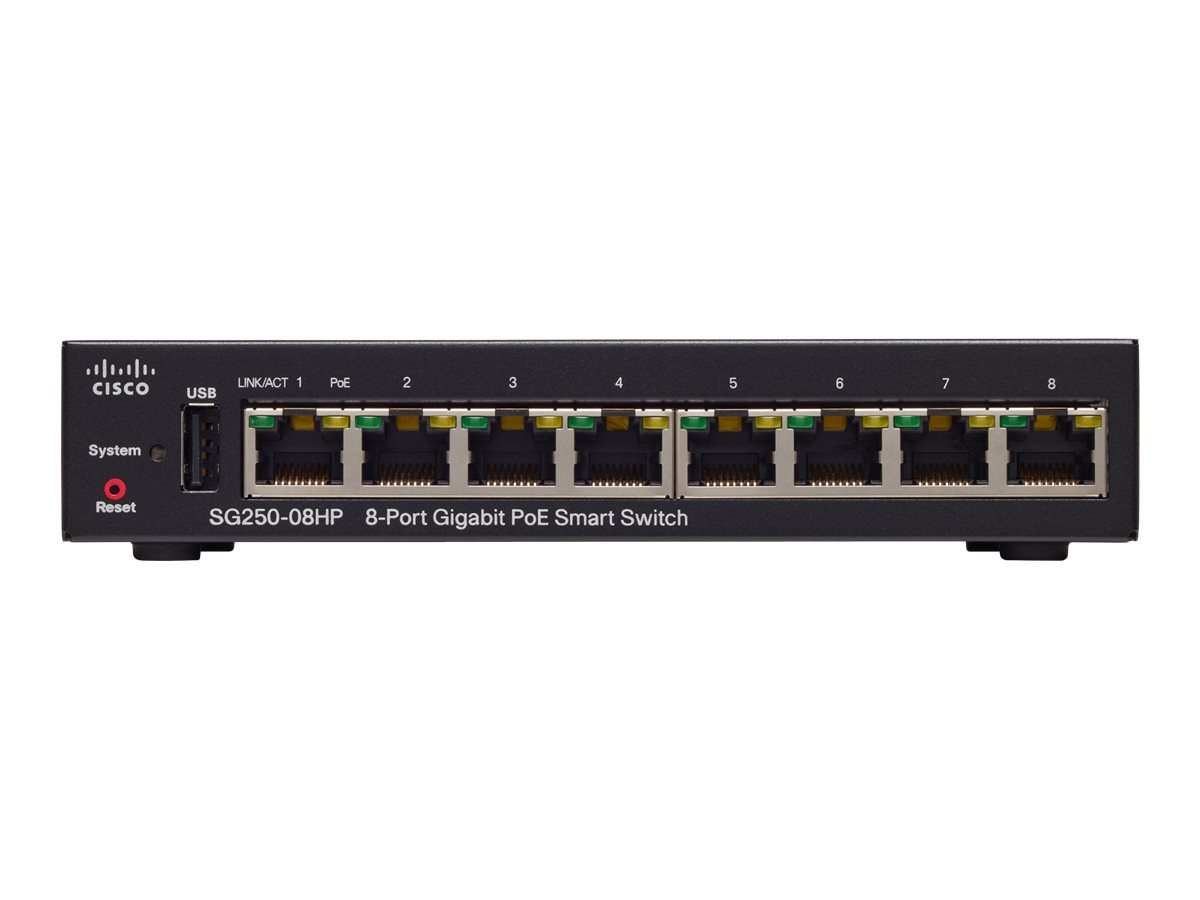

Cisco SG250-08HP-K9-EU
SG250-08HP 8-Port Gigabit PoE
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
SG250-08HP 8-Port Gigabit PoE
| Authentication Method: | RADIUS |
|---|---|
| Cables Included: | 1 x power cable |
| Capacity: | MSTP instances: 8 ¦ Active VLANs: 256 ¦ QoShardware queues: 4 |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az, UL 60950, CSA 22.2, FCC CFR47 Part 15 A |
| Depth: | 12.8 cm |
| Device Type: | Switch - 8 ports - smart |
| Enclosure Type: | Desktop 1U |
| Encryption Algorithm: | MD5, SSL |
| Features: | DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, S |
| Flash Memory: | 256 MB |
| Height: | 3 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Humidity Range Storage: | 10 - 90% (non-condensing) |
| Interfaces: | 8 x 1000Base-T RJ-45 PoE+ ¦ 1 x USB Type A management |
| Jumbo Frame Support: | 9000 bytes |
| Localisation: | Europe |
| MAC Address Table Size: | 8K entries |
| MTBF: | 506,682 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 50 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -20 °C |
| Performance: | Switching capacity: 11.9 Mpps ¦ Forwarding performance (64-byte packet size): 16 Gbps |
| PoE Budget: | 45 W |
| Ports: | 8 x 10/100/1000 (PoE+) |
| Power Device: | External power adapter |
| Power Over Ethernet (PoE): | PoE+ |
| Processor: | X ARM: 800 MHz |
| RAM: | 512 MB |
| Remote Management Protocol: | SNMP, RMON, HTTP, HTTPS, TFTP, SCP |
| Routing Protocol: | IGMP, static IPv4 routing |
| Status Indicators: | Link/activity |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 100-240 V (50 - 60 Hz) |
| Width: | 16 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
SG250-08HP 8-Port Gigabit PoE
| Authentication Method: | RADIUS |
|---|---|
| Cables Included: | 1 x power cable |
| Capacity: | MSTP instances: 8 ¦ Active VLANs: 256 ¦ QoShardware queues: 4 |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az, UL 60950, CSA 22.2, FCC CFR47 Part 15 A |
| Depth: | 12.8 cm |
| Device Type: | Switch - 8 ports - smart |
| Enclosure Type: | Desktop 1U |
| Encryption Algorithm: | MD5, SSL |
| Features: | DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, S |
| Flash Memory: | 256 MB |
| Height: | 3 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Humidity Range Storage: | 10 - 90% (non-condensing) |
| Interfaces: | 8 x 1000Base-T RJ-45 PoE+ ¦ 1 x USB Type A management |
| Jumbo Frame Support: | 9000 bytes |
| Localisation: | Europe |
| MAC Address Table Size: | 8K entries |
| MTBF: | 506,682 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 50 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -20 °C |
| Performance: | Switching capacity: 11.9 Mpps ¦ Forwarding performance (64-byte packet size): 16 Gbps |
| PoE Budget: | 45 W |
| Ports: | 8 x 10/100/1000 (PoE+) |
| Power Device: | External power adapter |
| Power Over Ethernet (PoE): | PoE+ |
| Processor: | X ARM: 800 MHz |
| RAM: | 512 MB |
| Remote Management Protocol: | SNMP, RMON, HTTP, HTTPS, TFTP, SCP |
| Routing Protocol: | IGMP, static IPv4 routing |
| Status Indicators: | Link/activity |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 100-240 V (50 - 60 Hz) |
| Width: | 16 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
