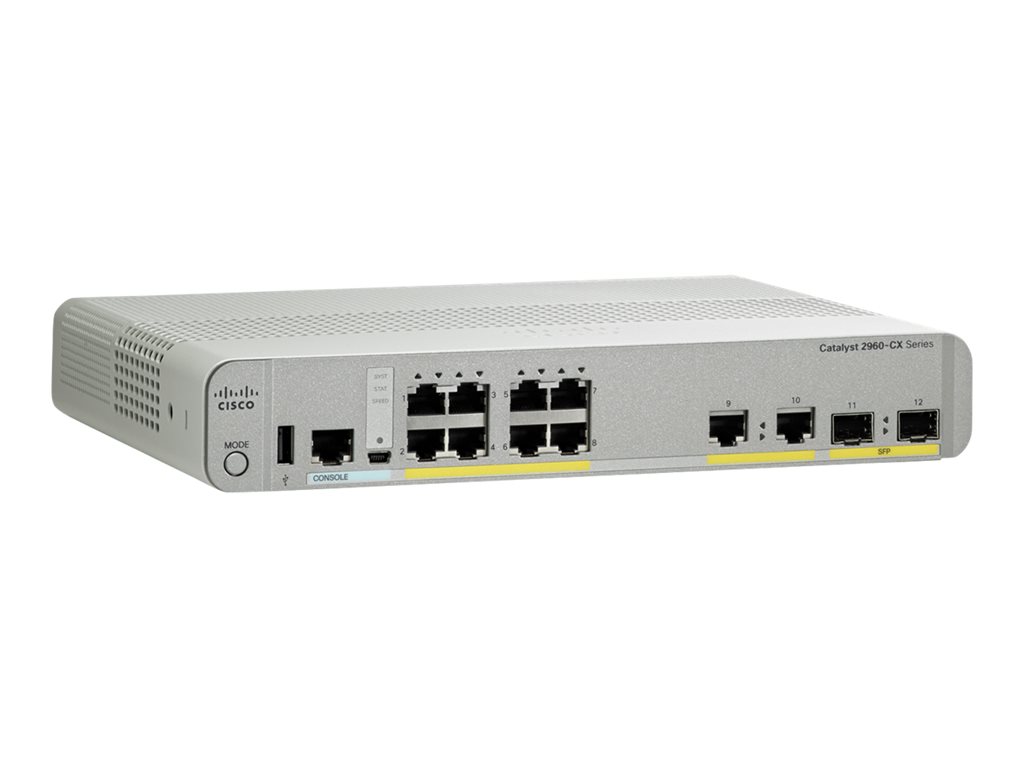

Cisco WS-C2960CX-8TC-L

Cisco Catalyst 2960-CX 8 Port Data Lan Base

Skip image gallery

Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.

Cisco Catalyst 2960-CX 8 Port Data Lan Base
80 PLUS Certification: 80 PLUS Silver
Authentication Method: Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Capacity: Virtual interfaces (VLANs): 1023
Compliant Standards: GOST, CISPR 24, EN55022, EN55024, CISPR 22, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, ANATEL, GB 4943, KCC Class A, IEC 60825, KN22, KN24, VCCI V-3/2007.04 Class A, AS/NZS CISPR22:2004 Class A, CAN/CSA-C22.2 No. 60950-1, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az
Depth: 21.3 cm
Device Type: Switch - 8 ports - Managed
Enclosure Type: Desktop, rack-mountable, DIN rail mountable, wall-mountable 1U
Features: BOOTP support, ARP support, VLAN support, Syslog support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), fanless,
Flash Memory: 128 MB
Height: 4.44 cm
Humidity Range Operating: 5 - 95% (non-condensing)
Humidity Range Storage: 5 - 95% (non-condensing)
Interfaces: 8 x 1000Base-T RJ-45 ¦ 1 x console RJ-45 ¦ 1 x mini-USB Type B management ¦ 1 x USB Type A ¦ 2 x 1000Base-T RJ-45 uplink ¦ 2 x SFP uplink
Jumbo Frame Support: 9018 bytes
MTBF: 756,260 hours
Manufacturer: Cisco Meraki
Max Operating Temperature: 45 °C
Max Storage Temperature: 70 °C
Min Operating Temperature: -5 °C
Min Storage Temperature: -25 °C
Performance: Forwarding performance: 12 Gbps ¦ Forwarding performance (64-byte packet size): 17.9 Mpps
Ports: 8 x 10/100/1000 + 2 x SFP + 2 x 10/100/1000 (uplink)
Power Consumption Operational: 16.7 Watt
Power Device: Internal power supply
Power Provided: 300 Watt
RAM: 512 MB
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
Routing Protocol: RIP-1, RIP-2, static IP routing
Software Included: Cisco IOS LAN Base
Status Indicators: Port status, port transmission speed, port duplex mode, system, link/activity
Subtype: Gigabit Ethernet
Version: original
Voltage Required: AC 120/230 V (50/60 Hz)
Weight: 1.72 kg
Width: 26.9 cm
GPSR - economic actor: Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com
GPSR - product manufacturer: Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com
GPSR - EU responsible person: Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com
EU Data-Act-Url: https://www.cisco.com/site/de/de/about/sitemap.html
Warnings: Warnings Switches International.pdf
Safety instructions: Safety instructions Switches International.pdf
