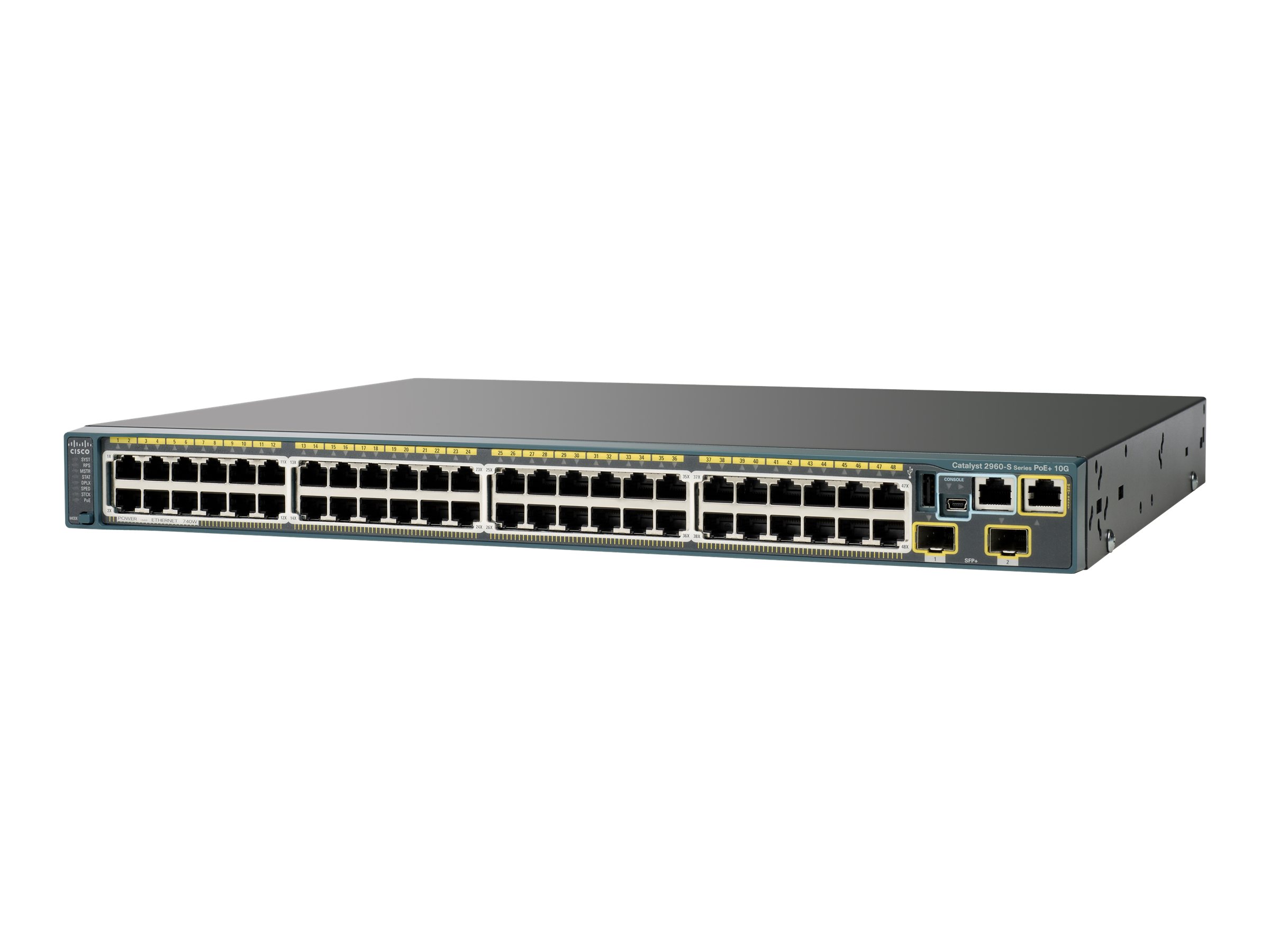

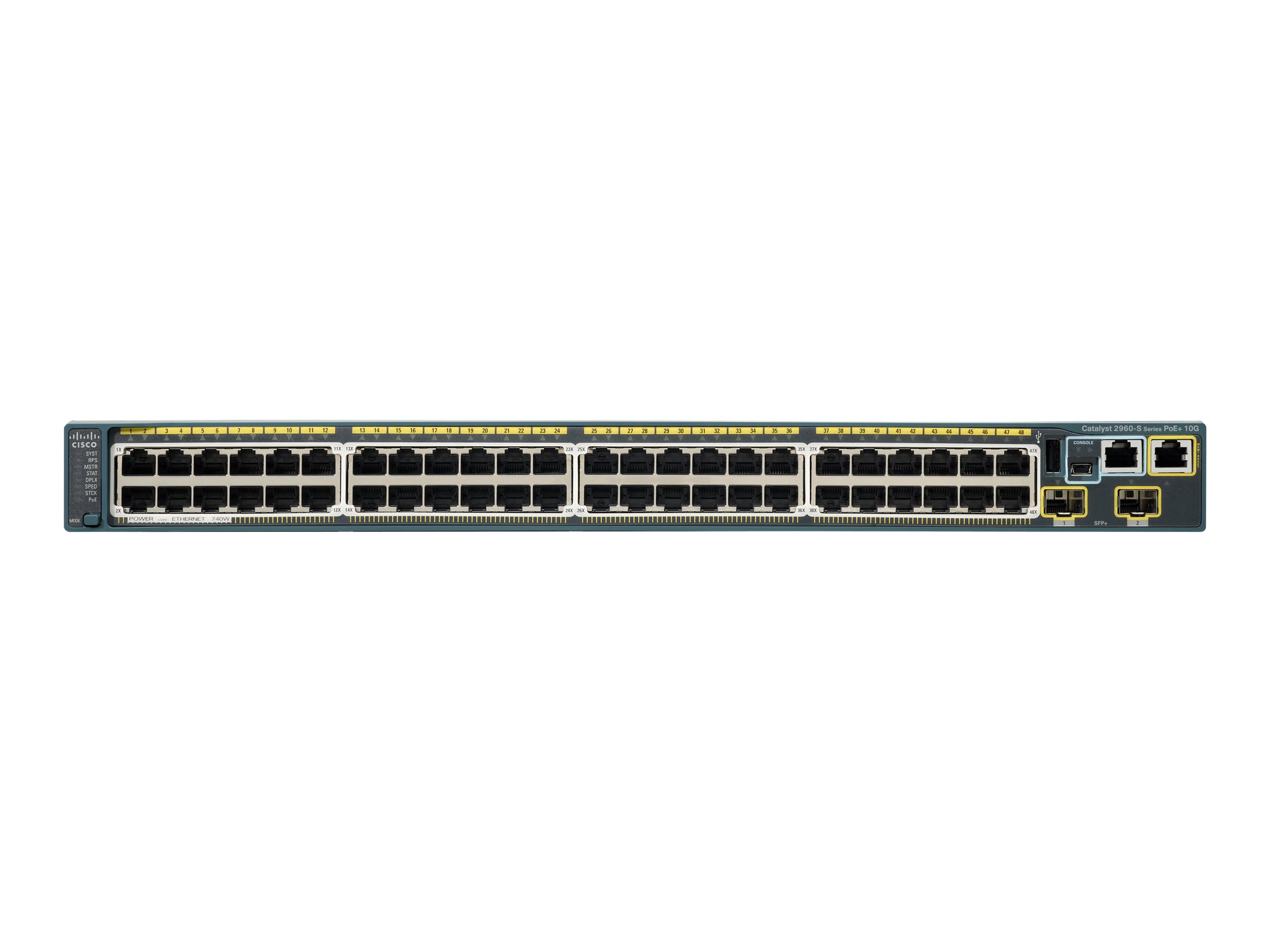

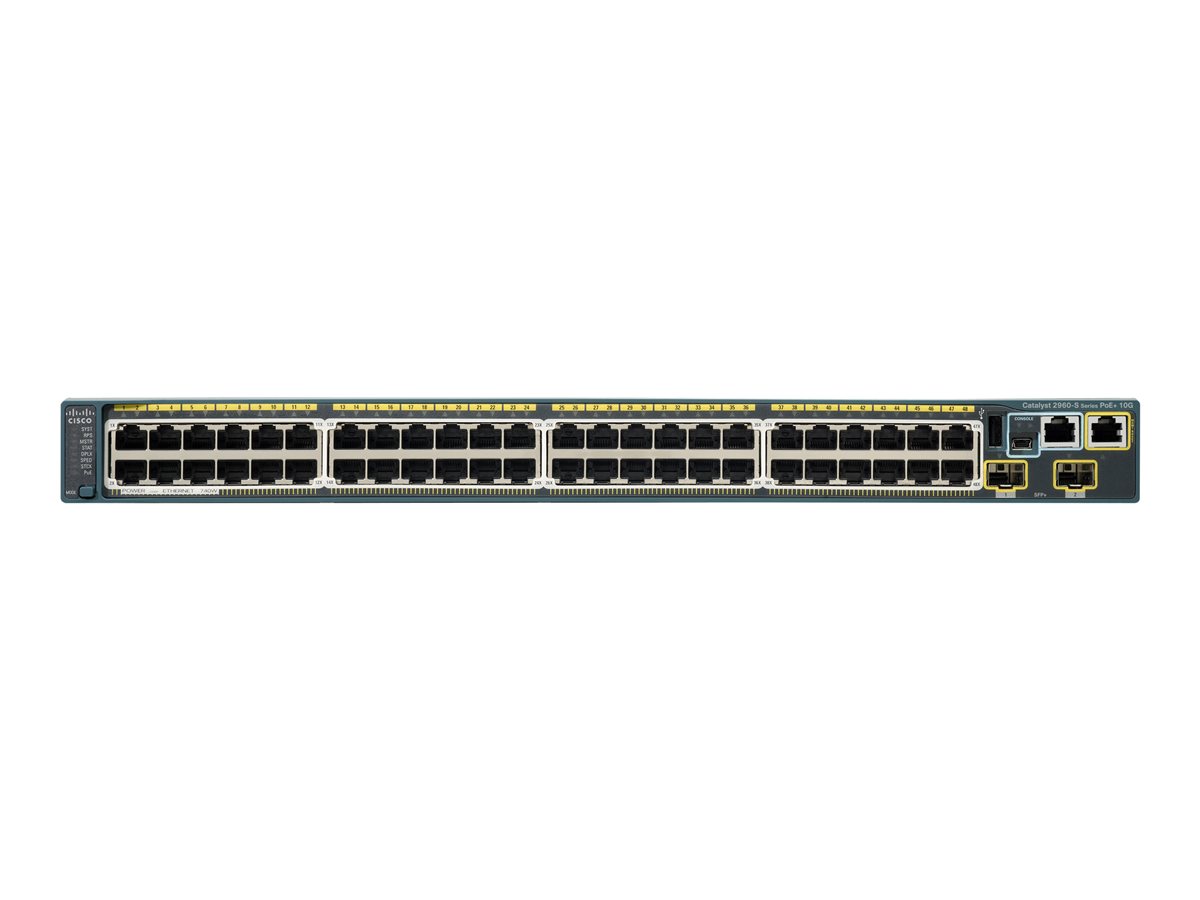

Cisco WS-C2960S-48FPD-L
Catalyst 2960S 48 GigE PoE 740W, 2 x 10G SFP LAN Base
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Catalyst 2960S 48 GigE PoE 740W, 2 x 10G SFP LAN Base
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+ |
|---|---|
| Compliant Standards: | TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, VCCI Class A ITE, EN55024, CB, EMC, MIC, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1, FCC Part 15 B Class A |
| Depth: | 38.6 cm |
| Device Type: | Switch - 48 ports - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Encryption Algorithm: | SSL |
| Expansion Slots: | 1 (total) / 1 (free) x Stacking Module |
| Features: | Layer 2 switching, auto-sensing per device, dynamic IP address assignment, power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support |
| Flash Memory: | 64 MB Flash |
| Height: | 4.5 cm |
| Humidity Range Operating: | 10 - 95% (non-condensing) |
| Humidity Range Storage: | 10 - 95% (non-condensing) |
| Interfaces: | 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 PoE ¦ 1 x USB Type A ¦ 1 x console - mini-USB Type B management ¦ 1 x console - RJ-45 management ¦ 1 x 10Base-T/100Base-TX - RJ-45 management ¦ 2 x SFP+ |
| MAC Address Table Size: | 8K entries |
| MTBF: | 183,498 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | -5 °C |
| Min Storage Temperature: | -25 °C |
| Performance: | Switching capacity: 176 Gbps ¦ Forwarding performance (64-byte packet size): 101.2 Mpps |
| Ports: | 48 x 10/100/1000 (PoE) + 2 x 10 Gigabit SFP+ |
| Power Consumption Operational: | 81 Watt |
| Power Device: | Internal power supply |
| Power Over Ethernet (PoE): | PoE |
| RAM: | 128 MB |
| Rack Mounting Kit: | Optional |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
| Software Included: | Cisco IOS LAN Base |
| Status Indicators: | Port status, port transmission speed, port duplex mode, power, system, link/activity |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 5.9 kg |
| Width: | 44.5 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
