Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+ |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 255 |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, TUV GS, CISPR 24, NOM, EN55024, CISPR 22, CB, MIC, RoHS, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, FCC Part 15 A, CSA C22.2 No. 60950-1 |
| Depth: | 38.6 cm |

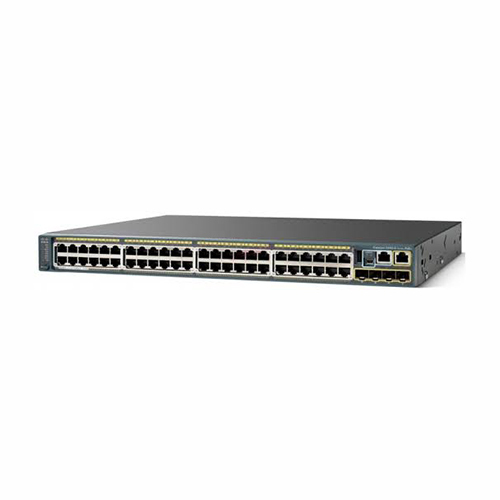

| Device Type: | Switch - 48 ports - Managed - stackable |
| Enclosure Type: | Desktop, rack-mountable 1U |
| Expansion Slots: | 1 (total) / 1 (free) x Stacking Module |
| Features: | Layer 2 switching, auto-negotiation, ARP support, Cisco Fast EtherChannel, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Mul |
| Flash Memory: | 64 MB |
| Height: | 4.5 cm |
| Humidity Range Operating: | 10 - 95% (non-condensing) |
| Humidity Range Storage: | 10 - 95% (non-condensing) |
| Interfaces: | 48 x 10Base-T/100Base-TX - RJ-45 ¦ 1 x USB Type A ¦ 4 x SFP (mini-GBIC) |
| Jumbo Frame Support: | 9216 bytes |
| MTBF: | 260,000 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 45 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | -5 °C |
| Min Storage Temperature: | -25 °C |
| Performance: | Switching capacity: 176 Gbps ¦ Forwarding performance: 88 Gbps |
| Ports: | 48 x 10/100 + 4 x SFP |
| Power Device: | Internal power supply |
| Power Over Ethernet (PoE): | PoE+ |
| RAM: | 128 MB |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI |
| Software Included: | Cisco IOS LAN Base |
| Status Indicators: | Port status, port transmission speed, port duplex mode, system, link/activity |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 5.9 kg |
| Width: | 44.5 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+ |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 255 |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, TUV GS, CISPR 24, NOM, EN55024, CISPR 22, CB, MIC, RoHS, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, FCC Part 15 A, CSA C22.2 No. 60950-1 |
| Depth: | 38.6 cm |
| Device Type: | Switch - 48 ports - Managed - stackable |
| Enclosure Type: | Desktop, rack-mountable 1U |
| Expansion Slots: | 1 (total) / 1 (free) x Stacking Module |
| Features: | Layer 2 switching, auto-negotiation, ARP support, Cisco Fast EtherChannel, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Mul |
| Flash Memory: | 64 MB |
| Height: | 4.5 cm |
| Humidity Range Operating: | 10 - 95% (non-condensing) |
| Humidity Range Storage: | 10 - 95% (non-condensing) |
| Interfaces: | 48 x 10Base-T/100Base-TX - RJ-45 ¦ 1 x USB Type A ¦ 4 x SFP (mini-GBIC) |
| Jumbo Frame Support: | 9216 bytes |
| MTBF: | 260,000 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 45 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | -5 °C |
| Min Storage Temperature: | -25 °C |
| Performance: | Switching capacity: 176 Gbps ¦ Forwarding performance: 88 Gbps |
| Ports: | 48 x 10/100 + 4 x SFP |
| Power Device: | Internal power supply |
| Power Over Ethernet (PoE): | PoE+ |
| RAM: | 128 MB |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI |
| Software Included: | Cisco IOS LAN Base |
| Status Indicators: | Port status, port transmission speed, port duplex mode, system, link/activity |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 5.9 kg |
| Width: | 44.5 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
