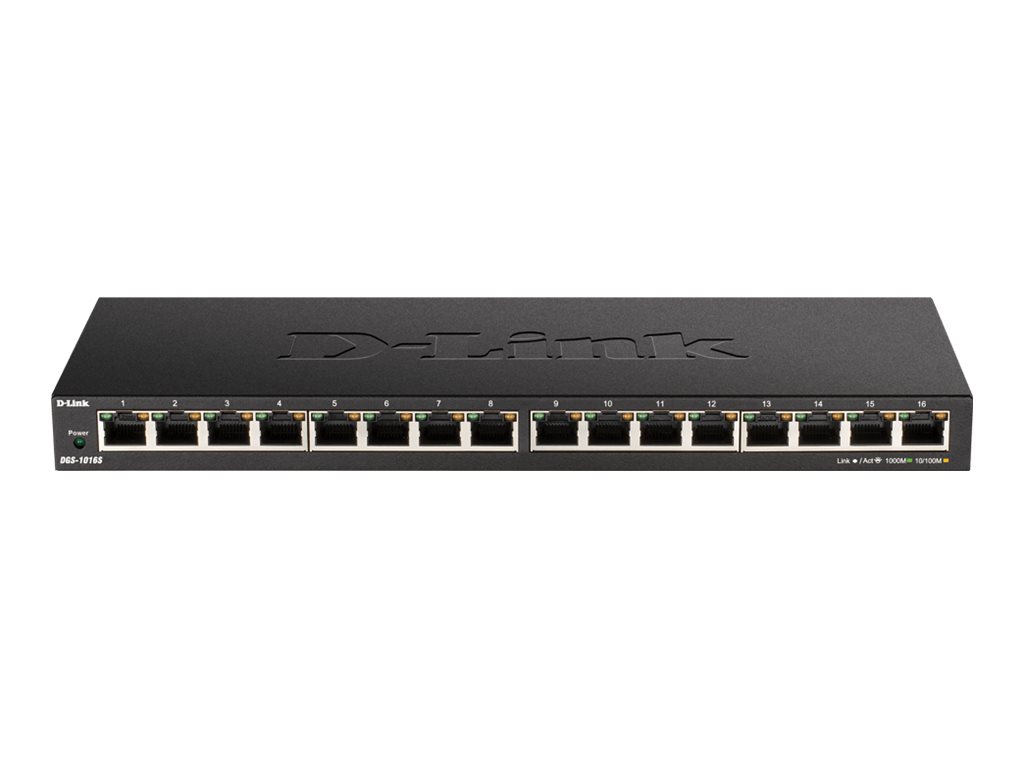

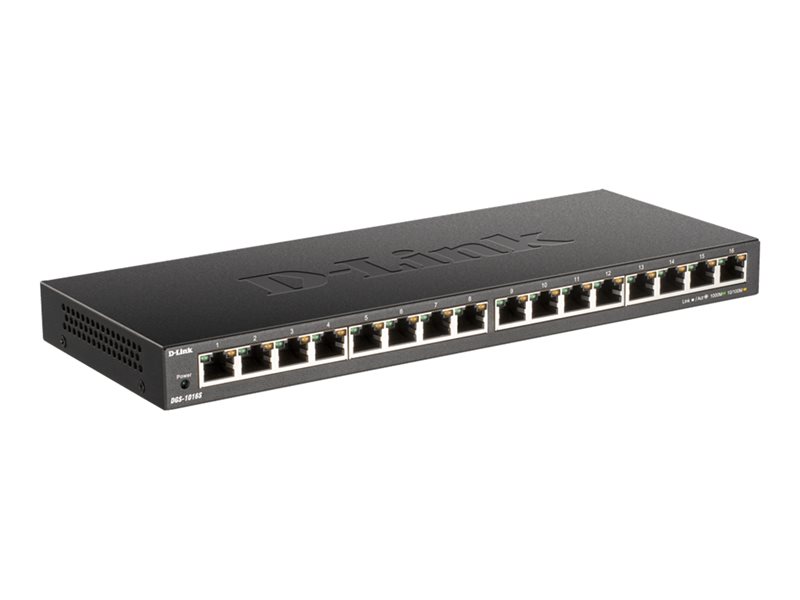

D-Link DGS-1016S
16-Port Gigabit Unmanaged SwitchDGS-1016S
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
16-Port Gigabit Unmanaged SwitchDGS-1016S
| Capacity: | Queues: 8 |
|---|---|
| Compliant Standards: | IEEE 802.1p, IEEE 802.3x, IEEE 802.3az, Plug and Play, RoHS |
| Depth: | 11 cm |
| Device Type: | Switch - 16 ports - unmanaged |
| Electric Current Required: | 1 A |
| Enclosure Type: | Desktop |
| Features: | Flow control, auto-uplink (auto MDI/MDI-X), store and forward, Quality of Service (QoS), fanless, 512KB packet buffer, Energy-Efficient Ethernet (EEE), cable length detection |
| Height: | 2.5 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Humidity Range Storage: | 5 - 95% (non-condensing) |
| Interfaces: | 16 x 1000Base-T RJ-45 |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 8K entries |
| MTBF: | 564,658 hours |
| Manufacturer: | D-Link |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Switching capacity: 32 Gbps ¦ Packet forwarding rate: 1488000 packets per second |
| Ports: | 16 x 10/100/1000 |
| Power Consumption Operational: | 8.89 Watt |
| Power Consumption Stand by: | 3.37 Watt |
| Power Device: | External power adapter |
| Status Indicators: | Port transmission speed, power, link/activity |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | DC 12 V |
| Weight: | 770 g |
| Width: | 28 cm |
| GPSR - economic actor: | D-Link, Deutschland, Schwalbacher Str. 74, Eschborn, 65760, dce-sales@dlink.com |
|---|---|
| GPSR - product manufacturer: | D-Link, Deutschland, Schwalbacher Str. 74, Eschborn, 65760, dce-sales@dlink.com |
| GPSR - EU responsible person: | D-Link, Deutschland, Schwalbacher Str. 74, Eschborn, 65760, dce-sales@dlink.com |
| EU Data-Act-Url: | https://www.dlink.com/de/de |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
