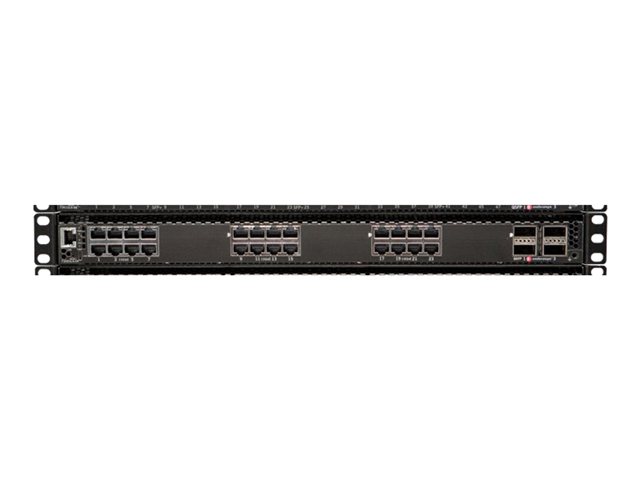

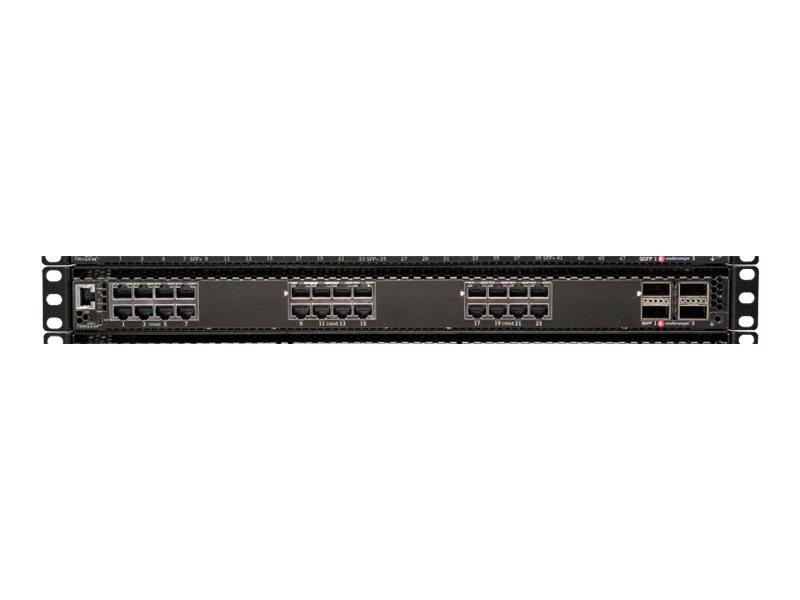

Enterasys 71K91L4-24
7124T 24 Ports 10GBASE-T w/4 40Gig QSFP+
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
7124T 24 Ports 10GBASE-T w/4 40Gig QSFP+
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|---|---|
| Capacity: | Active VLANs: 4094 |
| Compliant Standards: | BSMI, CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, EN 60825-1, VCCI V-3, EN 60825-2, CAN/CSA-C22.2 No. 60950-1, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1t, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3ba, IEEE 802.1AX |
| Depth: | 43.4 cm |
| Device Type: | Switch - 24 ports - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Features: | Flow control, VLAN support, IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, SNTP support, Metro Ring Protocol (MRP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Data |
| Height: | 4.37 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Included Accessories: | 2 reversible fan modules |
| Interfaces: | 1 x console ¦ 1 x micro-USB Type B ¦ 24 x 10Gb Ethernet / 1Gb Ethernet - RJ-45 ¦ 4 x 10Gb Ethernet / 40Gb Ethernet - QSFP+ |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 128K entries |
| Manufacturer: | Enterasys Extreme |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 73 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 5 °C |
| Min Storage Temperature: | -30 °C |
| Performance: | Switching throughput: 595 Mpps ¦ Switching capacity: 800 Gbps |
| Ports: | 24 x 1000/10000 + 4 x QSFP+ |
| Power Consumption Operational: | 138 Watt |
| Power Device: | Internal power supply (not installed) - hot-plug |
| Power Redundancy: | Optional |
| Rack Mounting Kit: | Included |
| Remote Management Protocol: | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, SMON, SSH, SSH-2 |
| Routing Protocol: | IGMPv2, IGMP, IGMPv3, MLDv2, MLD |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Weight: | 7.12 kg |
| Width: | 44.73 cm |
| GPSR - economic actor: | Extreme Networks, Deutschland, Solmsstraße 83, Frankfurt am Main, 60486, Info.de@extremenetworks.com |
|---|---|
| GPSR - product manufacturer: | Extreme Networks, Deutschland, Solmsstraße 83, Frankfurt am Main, 60486, Info.de@extremenetworks.com |
| GPSR - EU responsible person: | Extreme Networks, Deutschland, Solmsstraße 83, Frankfurt am Main, 60486, Info.de@extremenetworks.com |
| EU Data-Act-Url: | https://www.extremenetworks.com/support/policies |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
7124T 24 Ports 10GBASE-T w/4 40Gig QSFP+
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|---|---|
| Capacity: | Active VLANs: 4094 |
| Compliant Standards: | BSMI, CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, EN 60825-1, VCCI V-3, EN 60825-2, CAN/CSA-C22.2 No. 60950-1, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1t, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3ba, IEEE 802.1AX |
| Depth: | 43.4 cm |
| Device Type: | Switch - 24 ports - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Features: | Flow control, VLAN support, IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, SNTP support, Metro Ring Protocol (MRP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Data |
| Height: | 4.37 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Included Accessories: | 2 reversible fan modules |
| Interfaces: | 1 x console ¦ 1 x micro-USB Type B ¦ 24 x 10Gb Ethernet / 1Gb Ethernet - RJ-45 ¦ 4 x 10Gb Ethernet / 40Gb Ethernet - QSFP+ |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 128K entries |
| Manufacturer: | Enterasys Extreme |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 73 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 5 °C |
| Min Storage Temperature: | -30 °C |
| Performance: | Switching throughput: 595 Mpps ¦ Switching capacity: 800 Gbps |
| Ports: | 24 x 1000/10000 + 4 x QSFP+ |
| Power Consumption Operational: | 138 Watt |
| Power Device: | Internal power supply (not installed) - hot-plug |
| Power Redundancy: | Optional |
| Rack Mounting Kit: | Included |
| Remote Management Protocol: | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, SMON, SSH, SSH-2 |
| Routing Protocol: | IGMPv2, IGMP, IGMPv3, MLDv2, MLD |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Weight: | 7.12 kg |
| Width: | 44.73 cm |
| GPSR - economic actor: | Extreme Networks, Deutschland, Solmsstraße 83, Frankfurt am Main, 60486, Info.de@extremenetworks.com |
|---|---|
| GPSR - product manufacturer: | Extreme Networks, Deutschland, Solmsstraße 83, Frankfurt am Main, 60486, Info.de@extremenetworks.com |
| GPSR - EU responsible person: | Extreme Networks, Deutschland, Solmsstraße 83, Frankfurt am Main, 60486, Info.de@extremenetworks.com |
| EU Data-Act-Url: | https://www.extremenetworks.com/support/policies |
