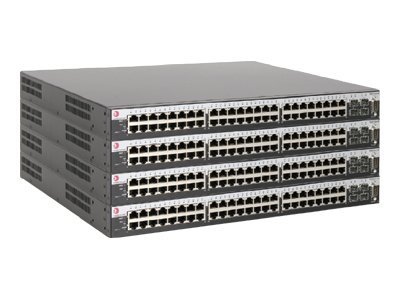

SecureStack C3 with (48) 10/100/1000 PoE RJ45 ports, (4) mini-GBIC combo ports, and (2) dedicated stacking ports. Total active ports per switch: (48) Gigabit ports.
| Authentication Method: | RADIUS, Secure Shell v.2 (SSH2) |
|---|---|
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, VCCI, EN 60950, EN 61000-3-2, EN55022, IEC 825-1/EN 60825-1 class 1, IEC 60950, EN 61000-3-3, EN55024, UL 60950, CISPR 22, CSA 22.2 No. 60950 |
| Depth: | 36.9 cm |
| Device Type: | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type: | Desktop 1U |
| Encryption Algorithm: | SSL |
| Features: | Redundant Power System (RPS) connector |
| Features: | Flow control, routing, Layer 3 switching, Layer 2 switching, auto-sensing per device, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, port mirroring, manag |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% |
| Interfaces: | 2 x network stack device ¦ 1 x console - 9 pin D-Sub (DB-9) management ¦ 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 PoE ¦ 4 x SFP (mini-GBIC) |
| MAC Address Table Size: | 16K entries |
| Manufacturer: | Enterasys |
| Max Operating Temperature: | 50 °C |
| Max Units In A Stack: | 8 |
| Min Operating Temperature: | 0 °C |
| Ports: | 48 x 10/100/1000 + 4 x shared SFP |
| Power Consumption Operational: | 583 Watt |
| Power Device: | Internal power supply |
| Power Over Ethernet (PoE): | PoE |
| Remote Management Protocol: | SNMP 2, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, SSH-2 |
| Routing Protocol: | OSPF, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, VRRP, OSPFv2, PIM-SM, OSPFv3 |
| Status Indicators: | Port status, status |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 6.6 kg |
| Width: | 44.1 cm |
| GPSR - economic actor: | Extreme Networks, Deutschland, Solmsstraße 83, Frankfurt am Main, 60486, Info.de@extremenetworks.com |
|---|---|
| GPSR - product manufacturer: | Extreme Networks, Deutschland, Solmsstraße 83, Frankfurt am Main, 60486, Info.de@extremenetworks.com |
| GPSR - EU responsible person: | Extreme Networks, Deutschland, Solmsstraße 83, Frankfurt am Main, 60486, Info.de@extremenetworks.com |
| EU Data-Act-Url: | https://www.extremenetworks.com/support/policies |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
SecureStack C3 with (48) 10/100/1000 PoE RJ45 ports, (4) mini-GBIC combo ports, and (2) dedicated stacking ports. Total active ports per switch: (48) Gigabit ports.
| Authentication Method: | RADIUS, Secure Shell v.2 (SSH2) |
|---|---|
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, VCCI, EN 60950, EN 61000-3-2, EN55022, IEC 825-1/EN 60825-1 class 1, IEC 60950, EN 61000-3-3, EN55024, UL 60950, CISPR 22, CSA 22.2 No. 60950 |
| Depth: | 36.9 cm |
| Device Type: | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type: | Desktop 1U |
| Encryption Algorithm: | SSL |
| Features: | Redundant Power System (RPS) connector |
| Features: | Flow control, routing, Layer 3 switching, Layer 2 switching, auto-sensing per device, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, port mirroring, manag |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% |
| Interfaces: | 2 x network stack device ¦ 1 x console - 9 pin D-Sub (DB-9) management ¦ 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 PoE ¦ 4 x SFP (mini-GBIC) |
| MAC Address Table Size: | 16K entries |
| Manufacturer: | Enterasys |
| Max Operating Temperature: | 50 °C |
| Max Units In A Stack: | 8 |
| Min Operating Temperature: | 0 °C |
| Ports: | 48 x 10/100/1000 + 4 x shared SFP |
| Power Consumption Operational: | 583 Watt |
| Power Device: | Internal power supply |
| Power Over Ethernet (PoE): | PoE |
| Remote Management Protocol: | SNMP 2, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, SSH-2 |
| Routing Protocol: | OSPF, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, VRRP, OSPFv2, PIM-SM, OSPFv3 |
| Status Indicators: | Port status, status |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 6.6 kg |
| Width: | 44.1 cm |
| GPSR - economic actor: | Extreme Networks, Deutschland, Solmsstraße 83, Frankfurt am Main, 60486, Info.de@extremenetworks.com |
|---|---|
| GPSR - product manufacturer: | Extreme Networks, Deutschland, Solmsstraße 83, Frankfurt am Main, 60486, Info.de@extremenetworks.com |
| GPSR - EU responsible person: | Extreme Networks, Deutschland, Solmsstraße 83, Frankfurt am Main, 60486, Info.de@extremenetworks.com |
| EU Data-Act-Url: | https://www.extremenetworks.com/support/policies |
