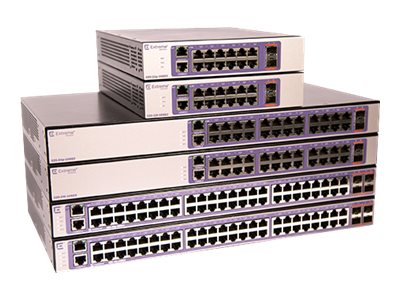

Extreme 16564
220-Series 48 port 10/100/1000BASE-T, 4 10GbE unpopulated SFP+ ports (2 LRM Capable), 1 Fixed AC PSU, 1 RPS port, L2 Switching with RIP and Static Routes, 1 country-specific power cord
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
220-Series 48 port 10/100/1000BASE-T, 4 10GbE unpopulated SFP+ ports (2 LRM Capable), 1 Fixed AC PSU, 1 RPS port, L2 Switching with RIP and Static Routes, 1 country-specific power cord
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|---|---|
| Capacity: | VLANs supported: 1024 ¦ LAG groups: 6 ¦ ACL: 100 ¦ Traffic classes (queues): 8 ¦ IPv6 routes (static): 64 |
| Compliant Standards: | CB, AS/NZS 60950-1, CCC, EMC, ICES-003 Class A, FCC, KCC, CDRH, CSA C22.2 No. 60950-1 Second Edition, VCCI Class A, EN 61000-4-2:2009, EN 61000-4-11:2004, EN 300 386 V1.6.1, RoHS 2011/65/EU, 21 CFR 1040.10, IEC 61000-4-2:2008, IEC 61000-4-11:2004, EN 6100 |
| Depth: | 25.4 cm |
| Device Type: | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type: | Desktop, rack-mountable 1U |
| Encryption Algorithm: | TLS 1.0, SSL 3.0 |
| Features: | Redundant Power System (RPS) connector |
| Features: | Flow control, ARP support, VLAN support, IGMP snooping, port mirroring, DiffServ support, E-mail alert, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rap |
| Flash Memory: | 128 MB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 10 - 95% (non-condensing) |
| Humidity Range Storage: | 10 - 95% (non-condensing) |
| Interfaces: | 48 x 1000Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ ¦ 1 x serial RJ-45 ¦ 1 x management (LAN) RJ-45 |
| MAC Address Table Size: | 16000 entries |
| Manufacturer: | Extreme |
| Max Operating Temperature: | 50 °C |
| Max Storage Temperature: | 70 °C |
| Max Units In A Stack: | 4 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Switching throughput: 176 Gbps ¦ Switching throughput: 130.9 Mpps |
| Ports: | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Power Consumption Operational: | 45 Watt |
| Power Device: | Internal power supply |
| Power Redundancy: | Optional |
| Processor: | 1 x ARM Cortex-A9: 1 GHz |
| RAM: | 512 MB |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, CLI |
| Routing Protocol: | RIP, RIP-2, IGMP, static IP routing, static IPv6 routing |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Weight: | 3.82 kg |
| Width: | 44.1 cm |
| GPSR - economic actor: | Extreme Networks, Deutschland, Solmsstraße 83, Frankfurt am Main, 60486, Info.de @ extremenetworks.com |
|---|---|
| GPSR - product manufacturer: | Extreme Networks, Deutschland, Solmsstraße 83, Frankfurt am Main, 60486, Info.de @ extremenetworks.com |
| GPSR - EU responsible person: | Extreme Networks, Deutschland, Solmsstraße 83, Frankfurt am Main, 60486, Info.de @ extremenetworks.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
220-Series 48 port 10/100/1000BASE-T, 4 10GbE unpopulated SFP+ ports (2 LRM Capable), 1 Fixed AC PSU, 1 RPS port, L2 Switching with RIP and Static Routes, 1 country-specific power cord
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|---|---|
| Capacity: | VLANs supported: 1024 ¦ LAG groups: 6 ¦ ACL: 100 ¦ Traffic classes (queues): 8 ¦ IPv6 routes (static): 64 |
| Compliant Standards: | CB, AS/NZS 60950-1, CCC, EMC, ICES-003 Class A, FCC, KCC, CDRH, CSA C22.2 No. 60950-1 Second Edition, VCCI Class A, EN 61000-4-2:2009, EN 61000-4-11:2004, EN 300 386 V1.6.1, RoHS 2011/65/EU, 21 CFR 1040.10, IEC 61000-4-2:2008, IEC 61000-4-11:2004, EN 6100 |
| Depth: | 25.4 cm |
| Device Type: | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type: | Desktop, rack-mountable 1U |
| Encryption Algorithm: | TLS 1.0, SSL 3.0 |
| Features: | Redundant Power System (RPS) connector |
| Features: | Flow control, ARP support, VLAN support, IGMP snooping, port mirroring, DiffServ support, E-mail alert, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rap |
| Flash Memory: | 128 MB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 10 - 95% (non-condensing) |
| Humidity Range Storage: | 10 - 95% (non-condensing) |
| Interfaces: | 48 x 1000Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ ¦ 1 x serial RJ-45 ¦ 1 x management (LAN) RJ-45 |
| MAC Address Table Size: | 16000 entries |
| Manufacturer: | Extreme |
| Max Operating Temperature: | 50 °C |
| Max Storage Temperature: | 70 °C |
| Max Units In A Stack: | 4 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Switching throughput: 176 Gbps ¦ Switching throughput: 130.9 Mpps |
| Ports: | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Power Consumption Operational: | 45 Watt |
| Power Device: | Internal power supply |
| Power Redundancy: | Optional |
| Processor: | 1 x ARM Cortex-A9: 1 GHz |
| RAM: | 512 MB |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, CLI |
| Routing Protocol: | RIP, RIP-2, IGMP, static IP routing, static IPv6 routing |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Weight: | 3.82 kg |
| Width: | 44.1 cm |
| GPSR - economic actor: | Extreme Networks, Deutschland, Solmsstraße 83, Frankfurt am Main, 60486, Info.de @ extremenetworks.com |
|---|---|
| GPSR - product manufacturer: | Extreme Networks, Deutschland, Solmsstraße 83, Frankfurt am Main, 60486, Info.de @ extremenetworks.com |
| GPSR - EU responsible person: | Extreme Networks, Deutschland, Solmsstraße 83, Frankfurt am Main, 60486, Info.de @ extremenetworks.com |
