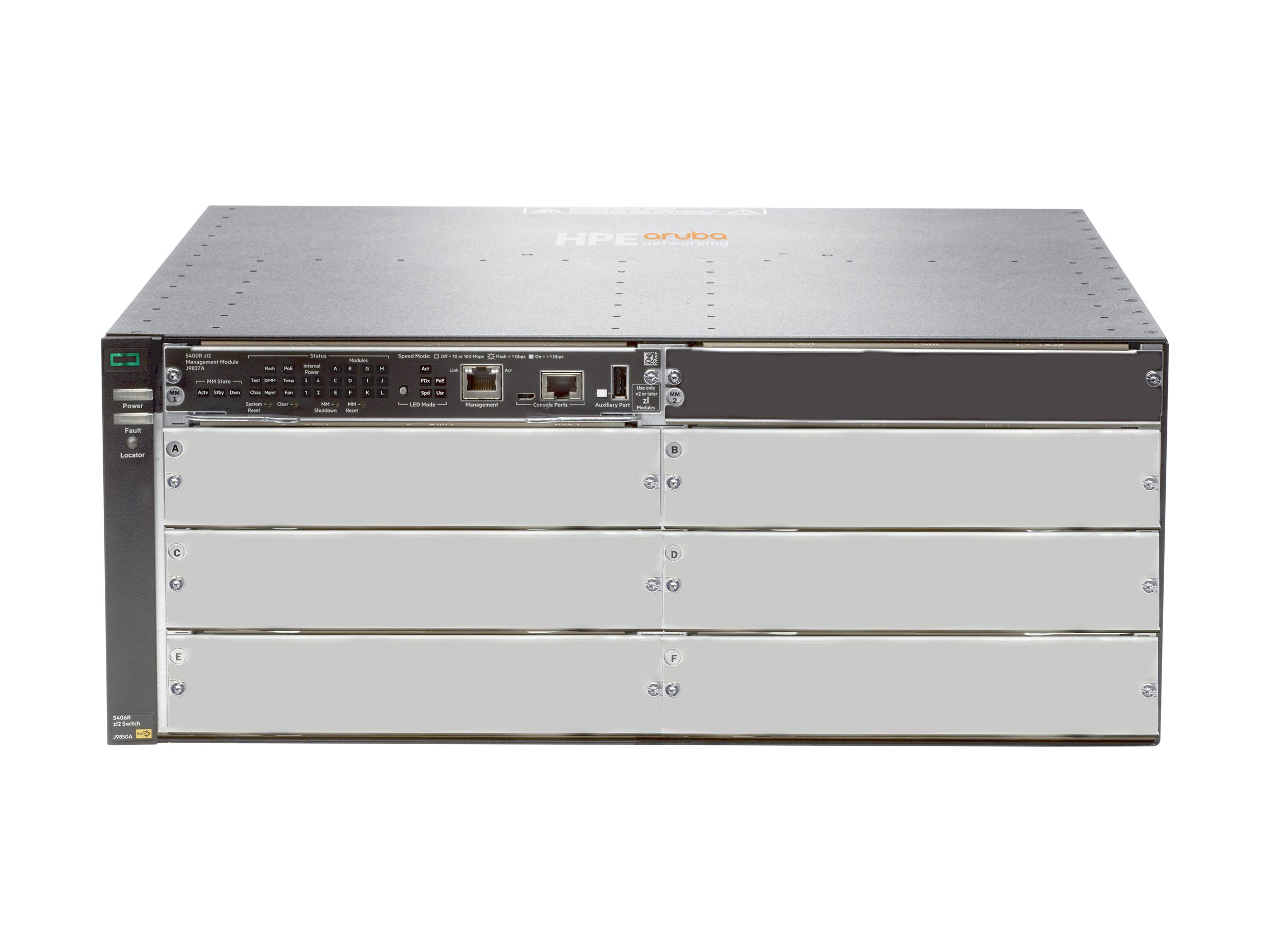

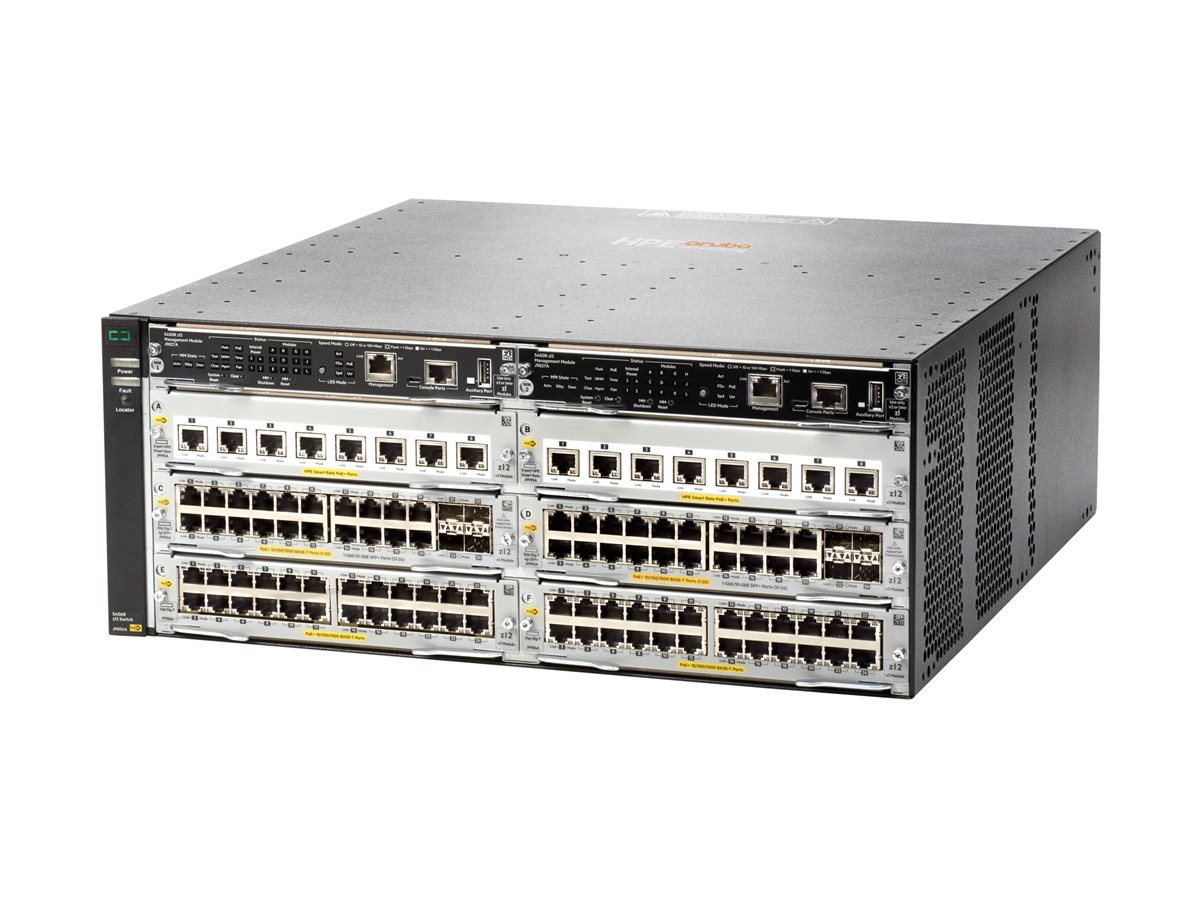

HPE J9821A
HP 5406R zl2 Switch
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
HP 5406R zl2 Switch
| Authentication Method: | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|---|---|
| Capacity: | IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000 |
| Compliant Standards: | FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 60950, EN 61000-3-3, EN55024, UL 60950,, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Depth: | 45.09 cm |
| Device Type: | Switch - Managed |
| Enclosure Type: | Rack-mountable 4U |
| Encryption Algorithm: | SSL |
| Expansion Slots: | 6 (total) / 6 (free) x Expansion Slot |
| Features: | VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, half duplex mode, full duplex mode, sFlow, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, STP Root Guard, Uni-Directio |
| Height: | 17.53 cm |
| Humidity Range Operating: | 15 - 95% (non-condensing) |
| Humidity Range Storage: | 15 - 95% (non-condensing) |
| Included Accessories: | Fan tray |
| MAC Address Table Size: | 64K entries |
| Manufacturer: | HPE Aruba |
| Max Operating Temperature: | 45 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Throughput: 392.8 Mbps ¦ Routing/switching capacity: 528 Gbps ¦ Switching fabric bandwidth: 1015 Gbps |
| Power Device: | Internal power supply (not installed) |
| Power Over Ethernet (PoE): | PoE+ |
| Rack Mounting Kit: | Included |
| Remote Management Protocol: | SNMP 1, RMON 2, RMON, SNMP 3, SNMP 2c, HTTP, SSH-2, CLI, XRMON |
| Routing Protocol: | OSPF, RIP-1, RIP-2, BGP, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3 |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Weight: | 11.11 kg |
| Width: | 44.45 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
|---|---|
| GPSR - product manufacturer: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| EU Data-Act-Url: | https://www.hpe.com/us/en/living-progress/governance/policies.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
